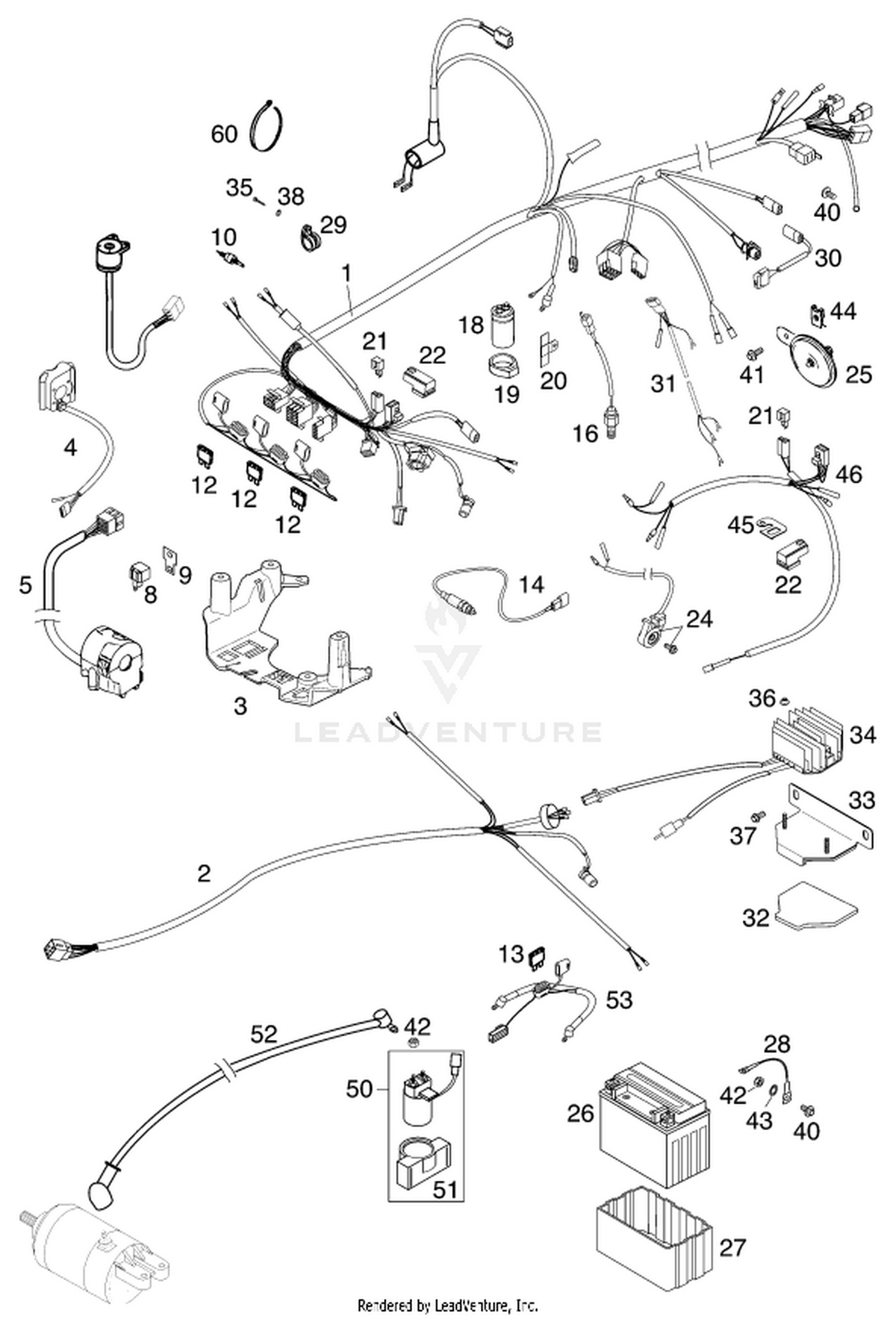

| Ref | Part Number | Description |
|---|
| 0 |
44011076200 |
CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 2 |
58411176200 |
WIRING HARNESS REAR LC4 2001 Not Available This part replaces 58411176100. Price: |
| 3 |
58411083100 |
BRACKET FOR PLUGS LC4 '98 Not Available Price: |
| 4 |
59011074100 |
START-STOP SWITCH 2000 This part replaces 59011074000. Price: Call Us |
| 5 |
58411070000 |
HEAD LIGHT SWITCH CEV LC4 '98 Price: Call Us |
| 8 |
44611207200 |
FLASHER UNIT 97 Price: Call Us |
| 9 |
58211031100 |
BRACKET FOR FLASHER RELAY Price: Call Us |
| 10 |
51011050100 |
BREAK LIGHT SWITCH This part replaces 51011050000. Price: Call Us |
| 12 |
58011109110 |
Plug-in fuse, big 10A Price: Call Us |
| 13 |
58011109120 |
Plug-in fuse, big 20A Price: Call Us |
| 14 |
58411049000 |
CLUTCH SWITCH '96 Price: Call Us |
| 16 |
50311051100 |
BRAKE LIGHT SWITCH REAR '98 Price: Call Us |
| 18 |
49111435100 |
CONDENSATOR 25V, 10.000 MF Price: Call Us |
| 19 |
54511048000 |
CAPACITOR BRACKET Price: Call Us |
| 20 |
54611448000 |
BRACKET FOR CAPACITOR Not Available Price: |
| 21 |
58411096100 |
DIODE S3H-15 97 Price: Call Us |
| 22 |
58411057000 |
STARTER RELAY '96 Price: Call Us |
| 24 |
58411045000 |
SIDE STAND SWITCH CPL. '97 Price: Call Us |
| 25 |
50311060000 |
DC HORN 12V K80/L LEB This part replaces 54511060100. Price: Call Us |
| 26 |
76011053100 |
BATTERY 12V/8AH This part replaces 58411053000. Price: Call Us |
| 27 |
58411053050 |
BATTERY COVER 96 Price: Call Us |
| 28 |
58411097100 |
GROUND CABLE D=6MM L=140MM '97 Price: Call Us |
| 29 |
49007439000 |
CLAMP RSGU 15/12 Price: Call Us |
| 30 |
58431065100 |
MICRO SWITCH LC4 '98 Price: Call Us |
| 31 |
58411085000 |
WIRING HARN. EPC F. ENGINE LC4 Price: Call Us |
| 32 |
58411055150 |
METAMOLL FOR BATTERY BRACKET Not Available Price: |
| 33 |
58411055100 |
BATTERY BRACKET LC4-E/DUKE'97 Not Available Price: |
| 34 |
58411034100 |
VOLT.REGULATOR-RECTIFIER 12V Price: Call Us |
| 35 |
0981480133 |
SHEET MET.SCR.DIN7981- 4,8X13 Not Available Price: |
| 36 |
56509064100 |
Self locking nut M6 - 10 Price: Call Us |
| 37 |
0025060106 |
HH collar screw M6x10 TX30 This part replaces 0015060103. Price: Call Us |
| 38 |
0797050003 |
TOOTH LOCK WASH. DIN6797-J 5,3 Not Available Price: |
| 40 |
0024060106 |
HH COLLAR SCREW M6X10 TX30 This part replaces 0014060103. Price: Call Us |
| 41 |
0024060156 |
HH collar screw M6x15 TX30 This part replaces 0014060153. Price: Call Us |
| 42 |
0985060003 |
Self lock. nut DIN985-M6-A2 Price: Call Us |
| 43 |
58411098100 |
CONTACT WASHER M6 VSV-K6 Price: Call Us |
| 45 |
58311031000 |
RETAINING PLATE Price: Call Us |
| 50 |
58411058000 |
STARTER RELAY WITH HOLD.RUBBER Price: Call Us |
| 51 |
58411058050 |
HOLD. RUBBER FOR STARTRELAY Price: Call Us |
| 52 |
58411059100 |
STARTERCABLE 700 MM '97 Price: Call Us |
| 53 |
58411059250 |
BATTERY CABLE 190MM 20A '98 Price: Call Us |
