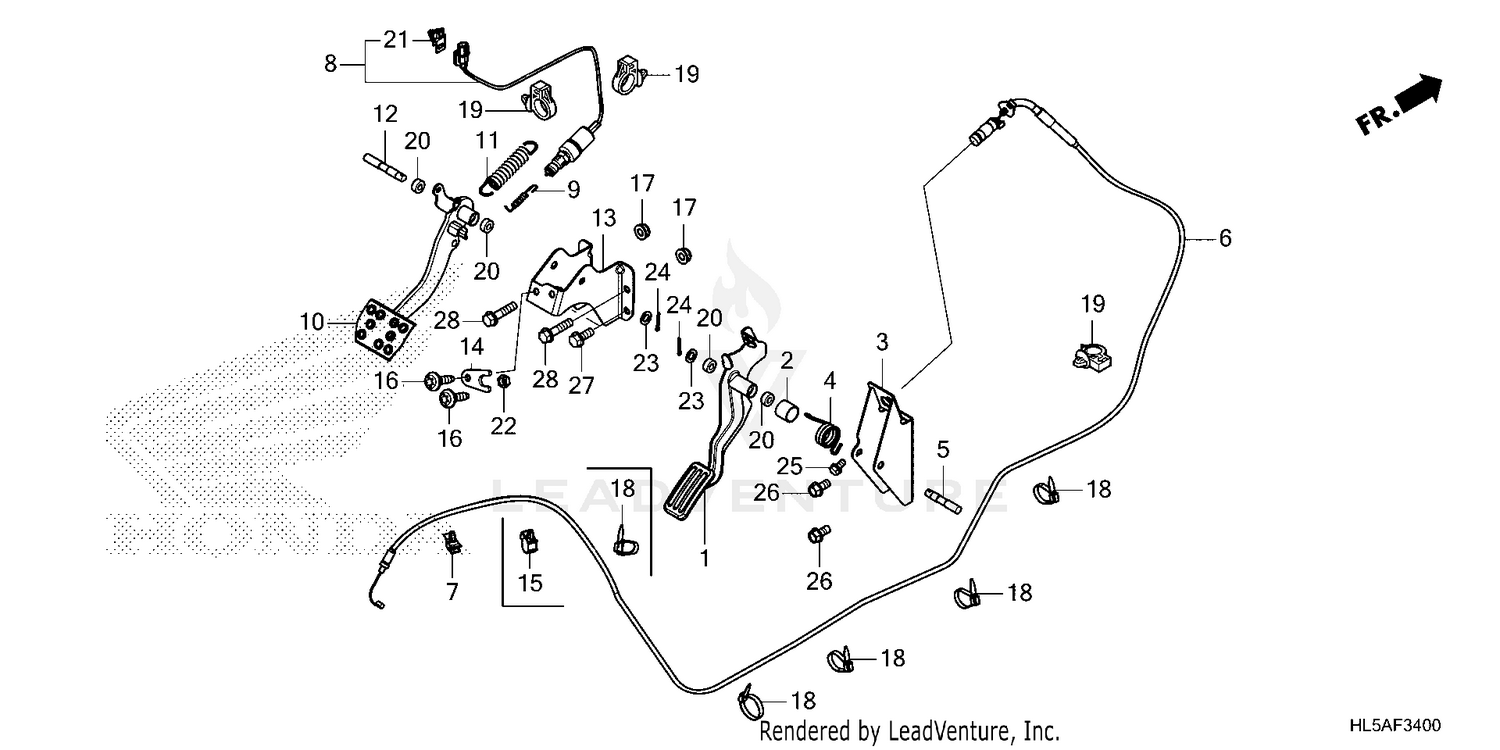

| Ref | Part Number | Description |
|---|
| 1 |
17810-HL5-A00 |
PEDAL, ACCELERATOR Price: $24.51 |
| 2 |
17811-HL1-A00 |
COLLAR, ACCELERATOR PEDAL Price: $3.78 |
| 3 |
17820-HL5-E60 |
STAY, ACCELERATOR PEDAL Price: $19.04 |
| 4 |
17830-HL5-A00 |
SPRING, ACCELERATOR PEDAL Price: $16.31 |
| 5 |
17840-HL3-A00 |
SHAFT, ACCELERATOR PIVOT Price: $15.73 |
| 6 |
17910-HL5-E61 |
CABLE, THROTTLE Price: $67.95 |
| 7 |
32171-GJ1-003 |
CLIP, WIRE HARNESS Price: $4.37 |
| 8 |
35350-HL3-A01 |
SWITCH ASSY., STOP Price: $62.60 |
| 9 |
35357-KR3-670 |
SPRING, STOP SWITCH Price: $6.42 |
| 10 |
46510-HL5-A00 |
PEDAL, BRAKE Price: $37.22 |
| 11 |
46514-HL1-A00 |
SPRING, BRAKE PEDAL Price: $11.22 |
| 12 |
46550-HL3-A00 |
SHAFT, BRAKE PIVOT Price: $22.15 |
| 13 |
46560-HL5-A00 |
STAY, BRAKE PEDAL Price: $34.44 |
| 14 |
46561-HL1-A00 |
PLATE, ADJUSTER NUT Price: $4.65 |
| 16 |
90106-SJC-000 |
BOLT, FLANGE TORX (8X30) Price: $1.78 |
| 17 |
90309-428-731 |
NUT, FLANGE (8MM) This part replaces 90309-KF0-003. Price: $4.20 |
| 18 |
90651-MA6-720 |
BAND, WIRE HARNESS Price: $4.68 |
| 19 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 20 |
91259-VM0-000 |
OIL SEAL (10X16X4.5) This part replaces 91206-333-003. Price: $5.29 |
| 21 |
91565-S3Y-003 |
CLIP, CONNECTOR Price: $7.23 |
| 22 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 23 |
94102-10800 |
WASHER, PLAIN (10MM) Price: $3.62 |
| 24 |
94201-30180 |
PIN, SPLIT (3.0X18) Price: $1.08 |
| 25 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 26 |
95701-08016-00 |
BOLT, FLANGE (8X16) Price: $1.88 |
| 27 |
95701-08020-00 |
BOLT, FLANGE (8X20) Price: $1.95 |
