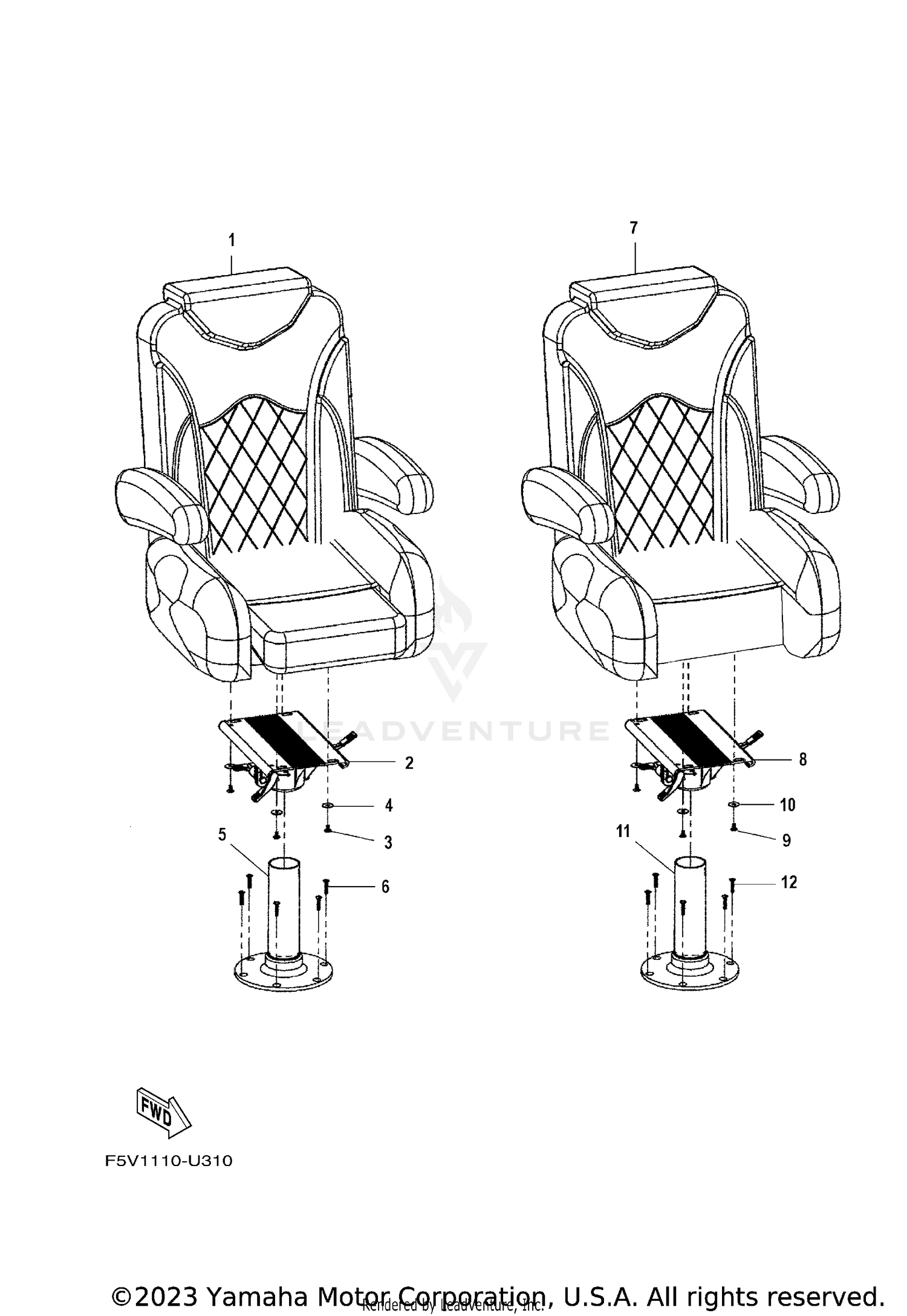

SWIVEL SEAT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | F3A-U3715-00-00 | SLIDER, SEAT Price: $182.99 |
| 3 | 90149-14SE8-00 | SCREW Price: $5.99 |
| 4 | 90201-14S00-00 | WASHER, PLATE Price: $6.99 |
| 5 | F3H-U1576-00-00 | SHAFT, PEDESTAL Price: $182.99 |
| 6 | 90152-14S20-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 8 | F3A-U3715-00-00 | SLIDER, SEAT Price: $182.99 |
| 9 | 90149-14SE8-00 | SCREW Price: $5.99 |
| 10 | 90201-14S00-00 | WASHER, PLATE Price: $6.99 |
| 11 | F3H-U1576-00-00 | SHAFT, PEDESTAL Price: $182.99 |
