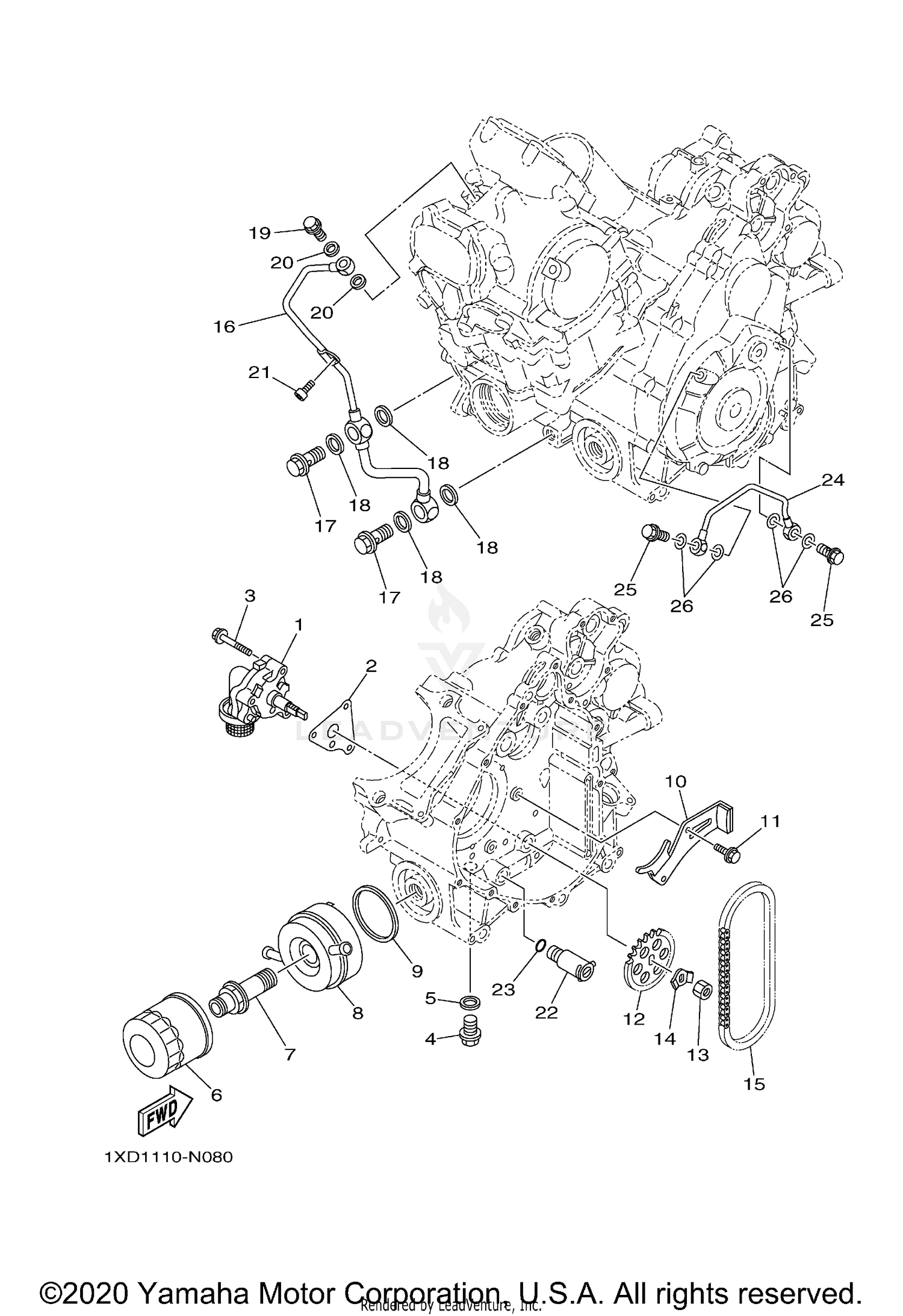

| Ref | Part Number | Description |
|---|
| 1 |
3B4-13300-00-00 |
OIL PUMP ASSY Price: $207.99 |
| 2 |
3B4-13329-00-00 |
GASKET, PUMP COVER Price: $7.49 |
| 3 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 4 |
90340-14132-00 |
PLUG, STRAIGHT SCREW Price: $3.15 |
| 5 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 6 |
5GH-13440-90-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-61-00. Price: $16.49 |
| 7 |
90401-20009-00 |
BOLT, UNION Price: $31.99 |
| 8 |
1XD-13470-00-00 |
OIL COOLER ASSY Price: $266.99 |
| 9 |
1XD-13475-00-00 |
GASKET Price: $10.99 |
| 10 |
3B4-12221-01-00 |
GUIDE, STOPPER 3 This part replaces 3B4-12221-00-00. Price: $16.49 |
| 11 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06082-00. Price: $3.90 |
| 12 |
3B4-13355-00-00 |
SPROCKET, DRIVEN Price: $41.99 |
| 13 |
95380-10600-00 |
NUT This part replaces 95312-10600-00. Price: $2.80 |
| 14 |
90215-10008-00 |
WASHER, LOCK Price: $3.65 |
| 15 |
94580-31074-00 |
CHAIN (DID 25HT) Price: $27.99 |
| 16 |
3B4-13171-00-00 |
PIPE, DELIVERY 2 Price: $171.99 |
| 17 |
90401-14118-00 |
BOLT, UNION Price: $19.49 |
| 18 |
90430-14043-00 |
GASKET Price: $8.49 |
| 19 |
90401-10024-00 |
BOLT, UNION Price: $10.49 |
| 20 |
90430-10188-00 |
GASKET Price: $7.49 |
| 21 |
91317-06012-00 |
BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 22 |
25G-13490-00-00 |
RELIEF VALVE ASSY Price: $73.99 |
| 23 |
93210-10096-00 |
O-RING Price: $4.05 |
| 24 |
28P-13161-00-00 |
PIPE, DELIVERY 1 Price: $76.99 |
| 25 |
90401-08006-00 |
BOLT, UNION Price: $6.49 |
