Parts Catalog

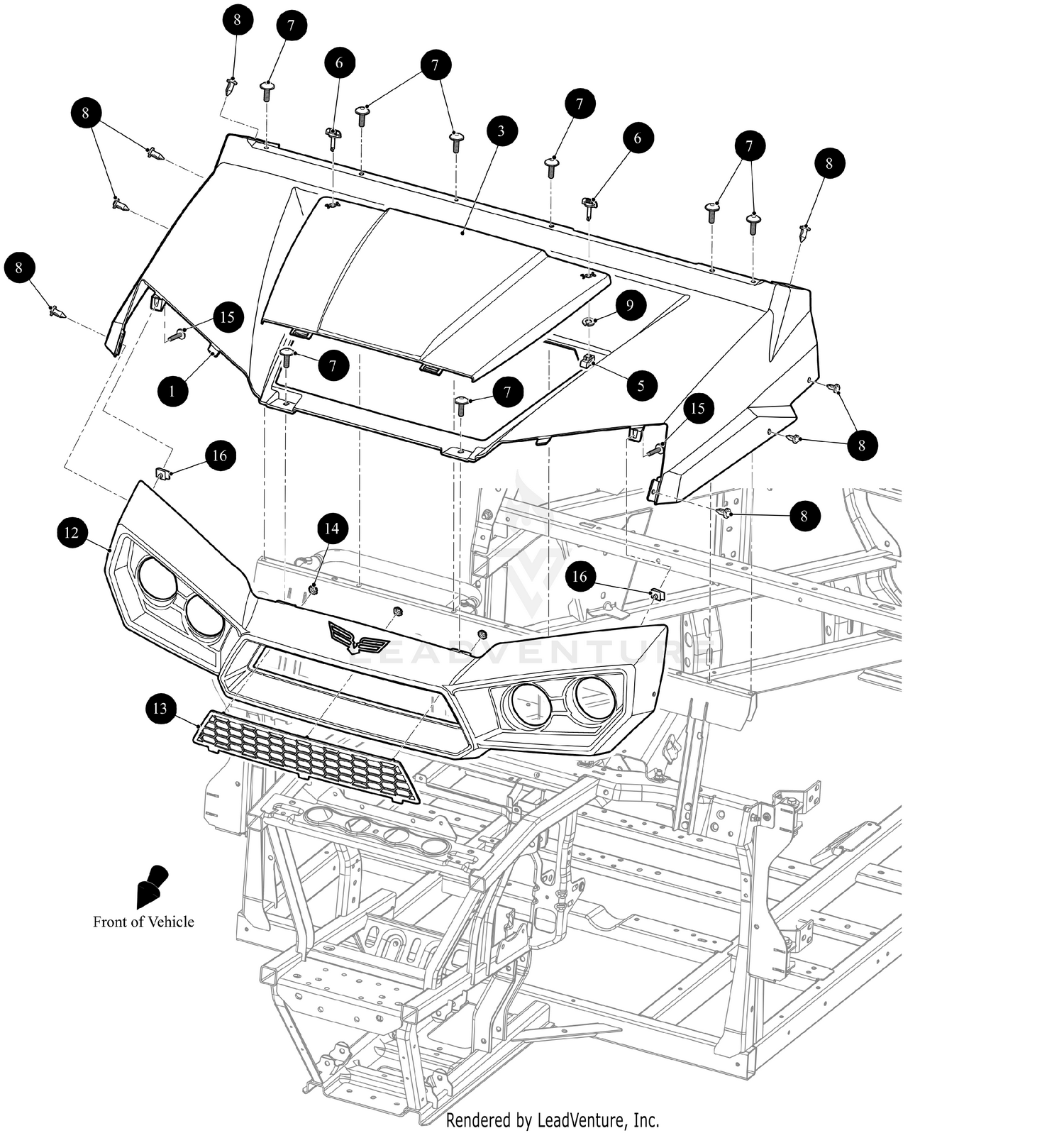

HOOD/GRILLE [302486]

Parts (9)

Ref	Part Number	Description
5	654333	BASE,RETAINER,QTR TURN Price: $0.99
6	653127	FASTENER,QUARTER TURN, 17.78 Price: $3.04
7	644969	SCREW,M6X1X20,PAN WSHR HD,SLF TAP,T30 Price: $0.46
8	645637	OBS - RIVET,REMOVABLE,.320,PLASTIC Price: $1.12
9	618255	RETAINER RING Price: $1.26
12	663105	FASCIA,FRONT Price: $117.82
13	641408	GRILLE,INSERT Price: $7.56
14	71597G01	SELF THREADING NUT, 5x10x15MM Price: $0.10
15	645323	PAN WASHER HEAD TORX SCREW, M6-1X23 Price: $0.66
