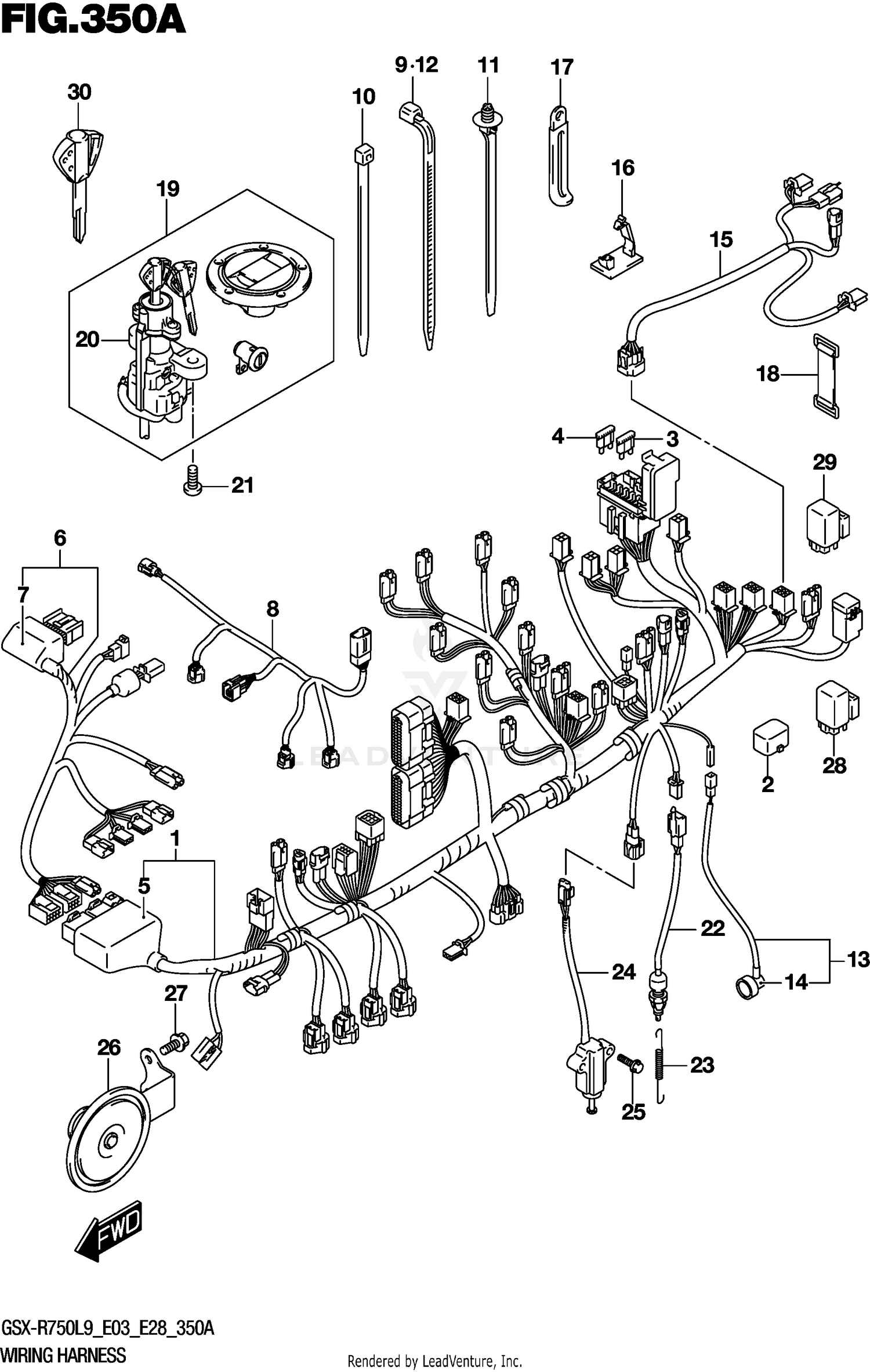

WIRING HARNESS (GSX-R750L9 E03)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-14JC0 | HARNESS, WIRING NO.1 Price: $1,143.53 |
| 6 | 36620-14J11 | HARNESS,WIRING NO.2 This part replaces 36620-14J10. Price: $253.42 |
| 8 | 36630-14J11 | HARNESS,WIRING NO.3 This part replaces 36630-14J10. Price: $224.20 |
| 9 | 09407-11401 | CLAMP (L:95) Price: $2.77 |
| 10 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 11 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 12 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 13 | 36851-14J01 | WIRE, OIL PRESSURE LEAD Price: $14.64 |
| 15 | 36859-14J01 | WIRE,RR COMB LEAD This part replaces 36859-14J00. Price: $59.40 |
| 16 | 09403-04310 | CLAMP Price: $5.62 |
| 17 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 18 | 09462-00033 | BAND Price: $3.95 |
| 19 | 37101-40824 | LOCK SET This part replaces 37101-40821. Price: $333.92 |
| 21 | 09139-08016 | BOLT (8X20) Price: $4.10 |
| 22 | 37740-14J00 | SWITCH ASSY,STOP LAMP Price: $29.14 |
| 23 | 09443-06087 | SPRING Price: $4.31 |
| 24 | 37840-18J02 | SWITCH ASSY,SIDE STAND This part replaces 37840-18J00. Price: $67.24 |
| 25 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 26 | 38500-14J00 | HORN ASSY Price: $94.73 |
| 27 | 01550-0616B | BOLT Price: $2.87 |
| 28 | 38740-24X50 | RELAY ASSY Price: $55.84 |
| 29 | 38740-24X50 | RELAY ASSY Price: $55.84 |
