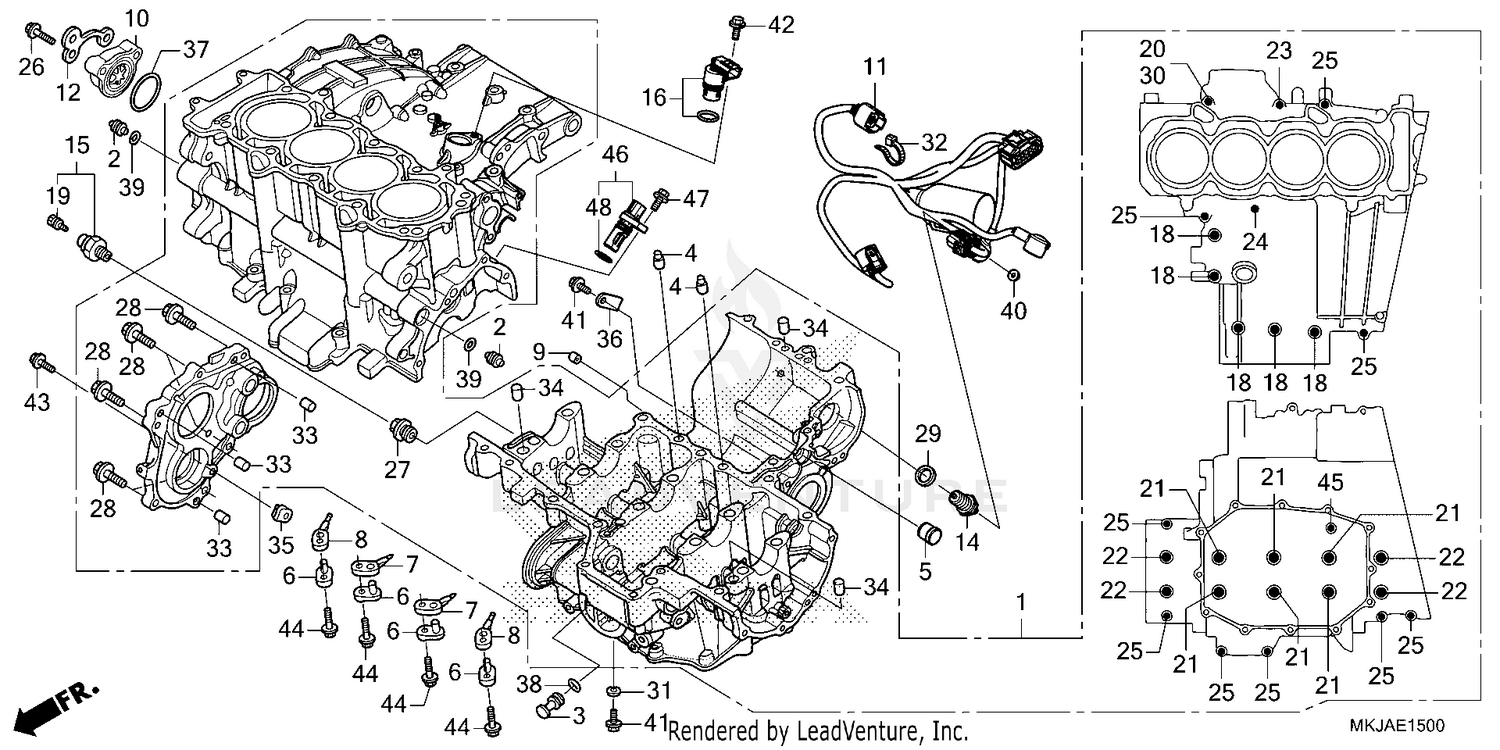

| Ref | Part Number | Description |
|---|
| 1 |
11000-MKJ-E50 |
CRANKCASE SET Price: $3,470.25 |
| 2 |
11103-MEL-000 |
PLUG, SEALING Price: $9.55 |
| 3 |
11104-MEL-000 |
PLUG, OIL COOLER Price: $7.87 |
| 4 |
11105-MEL-000 |
ORIFICE (1.6MM) Price: $8.78 |
| 5 |
11105-MKJ-D01 |
PLUG, CRANKCASE Price: $24.45 |
| 6 |
11145-MEL-000 |
BUSH, ORIFICE Price: $27.51 |
| 7 |
11146-MEL-000 |
ORIFICE A (#100) Price: $26.18 |
| 8 |
11147-MEL-000 |
ORIFICE B (#100) Price: $26.18 |
| 9 |
11206-MEL-000 |
ORIFICE (1.4MM) Price: $2.58 |
| 10 |
11360-MFN-D00 |
FINDER, OIL LEVEL Price: $34.96 |
| 11 |
32101-MKJ-E50 |
SUB-HARNESS, ENGINE Price: $94.44 |
| 12 |
32114-MFN-D00 |
GUIDE, OIL PRESSURE SWITCH WIRE Price: $4.89 |
| 14 |
35600-MKF-D41 |
SWITCH ASSY., NEUTRAL Price: $24.71 |
| 15 |
37240-P13-013 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $53.92 |
| 16 |
37700-MFL-761 |
SENSOR ASSY., SPEED Price: $84.91 |
| 18 |
90001-MFA-D00 |
BOLT, FLANGE (8X55) Price: $2.71 |
| 19 |
90002-PA6-003 |
BOLT-WASHER (4X8) (DENSO) Price: $6.13 |
| 20 |
90004-MFA-D00 |
BOLT, SPECIAL (7X42.5) Price: $2.93 |
| 21 |
90015-MEL-003 |
BOLT, FLANGE (9X105) Price: $12.93 |
| 22 |
90016-MEL-003 |
BOLT, FLANGE (9X125) Price: $12.93 |
| 23 |
90017-MFA-D00 |
BOLT, FLANGE (7X60) Price: $3.02 |
| 24 |
90018-MFA-D00 |
BOLT, FLANGE (7X80) Price: $4.16 |
| 25 |
90019-MFA-D00 |
BOLT, FLANGE (7X40) Price: $2.31 |
| 26 |
90028-GHB-690 |
BOLT, FLANGE (6X28) (S-NSHF) Price: $1.25 |
| 27 |
90048-MFL-000 |
BOLT, SEALING (22MM) Price: $10.85 |
| 28 |
90133-MEL-000 |
BOLT, FLANGE (8X30) Price: $3.78 |
| 29 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 30 |
90447-KE1-000 |
WASHER, SEALING (7MM) Price: $3.04 |
| 31 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 32 |
90650-KV6-003 |
BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 33 |
90701-MEL-000 |
PIN, DOWEL (8X14) Price: $2.85 |
| 34 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 35 |
91011-MEL-000 |
PLATE A, BEARING SETTING Price: $6.38 |
| 36 |
91012-MEL-000 |
PLATE B, BEARING SETTING Price: $2.20 |
| 37 |
91301-MEE-003 |
O-RING (32X1.7) Price: $2.16 |
| 38 |
91302-ZE9-003 |
O-RING (11.8X2.4) This part replaces 91302-ZE9-000. Price: $3.22 |
| 39 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 40 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
| 41 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 42 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
| 43 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
| 44 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 45 |
95701-08040-00 |
BOLT, FLANGE (8X40) Price: $1.44 |
| 46 |
37500-K26-G82 |
SENSOR ASSY., CRANK This part replaces 37500-K26-G81. Price: $97.98 |
| 47 |
90017-GHB-640 |
BOLT, FLANGE (6X18) (NSHF) Price: $2.53 |
