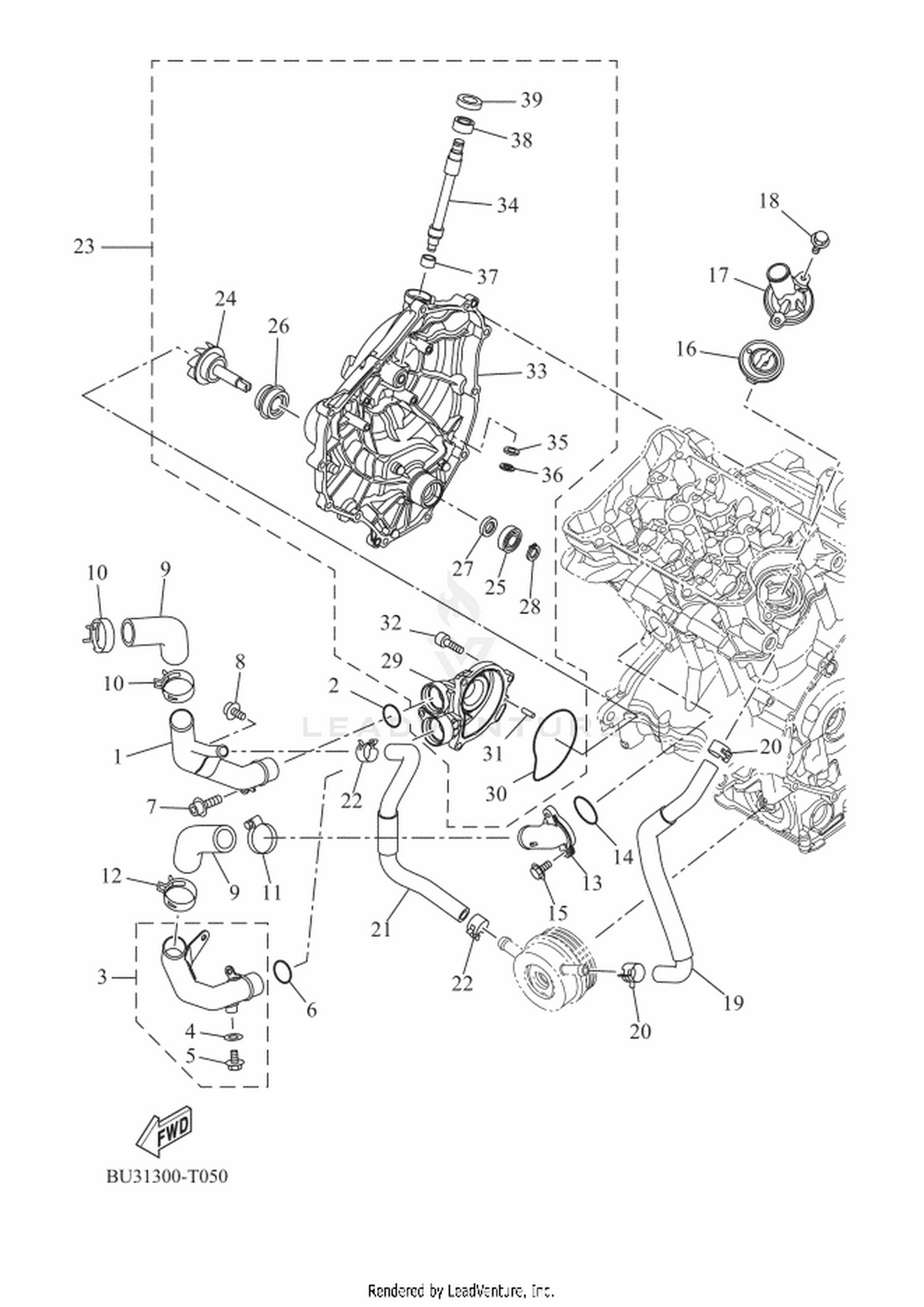

05 WATER PUMP
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BU3-E2481-00 | PIPE 1 Price: Call Us |
| 2 | 93210-23802 | O-RING Price: Call Us |
| 3 | BU3-E2482-00 | PIPE 2 Price: Call Us |
| 4 | 90430-06014 | GASKET Price: Call Us |
| 5 | 95022-06010 | BOLT, FLANGE Price: Call Us |
| 6 | 93210-23802 | O-RING Price: Call Us |
| 7 | 91314-06014 | BOLT Price: Call Us |
| 8 | 90110-06152 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 9 | BU3-E2576-00 | HOSE 1 Price: Call Us |
| 10 | 90467-290A0 | CLIP Price: Call Us |
| 11 | 90450-35001 | HOSE CLAMP ASSY Price: Call Us |
| 12 | 90467-290A0 | CLIP Price: Call Us |
| 13 | BU3-E2469-00 | JOINT 1 Price: Call Us |
| 14 | 93210-33786 | O-RING Price: Call Us |
| 15 | 95812-06020 | BOLT, FLANGE Price: Call Us |
| 16 | 1WS-12410-00 | THERMOSTAT ASSY Price: Call Us |
| 17 | BU3-E2413-00 | COVER, THERMOSTAT Price: Call Us |
| 18 | 95817-06020 | BOLT, FLANGE Price: Call Us |
| 19 | BU3-E2588-00 | HOSE 5 Price: Call Us |
| 20 | 90467-170A6 | CLIP Price: Call Us |
| 21 | BU3-E2589-00 | HOSE 6 Price: Call Us |
| 22 | 90467-170A6 | CLIP Price: Call Us |
| 23 | BU3-E2420-00 | WATER PUMP ASSY Price: Call Us |
| 25 | 93306-00106 | BEARING Price: Call Us |
| 26 | 5VK-12438-00 | SEAL, MECHANICAL Price: Call Us |
| 28 | 99009-12400 | CIRCLIP Price: Call Us |
| 31 | 93603-12007 | PIN, DOWEL Price: Call Us |
| 34 | 2D1-16382-00 | AXLE, PUSH LEVER Price: Call Us |
| 35 | 92907-08600 | WASHER, PLATE Price: Call Us |
| 36 | 99001-07600 | CIRCLIP Price: Call Us |
| 37 | 93317-11096 | BEARING Price: Call Us |
| 38 | 93315-21570 | BEARING Price: Call Us |
