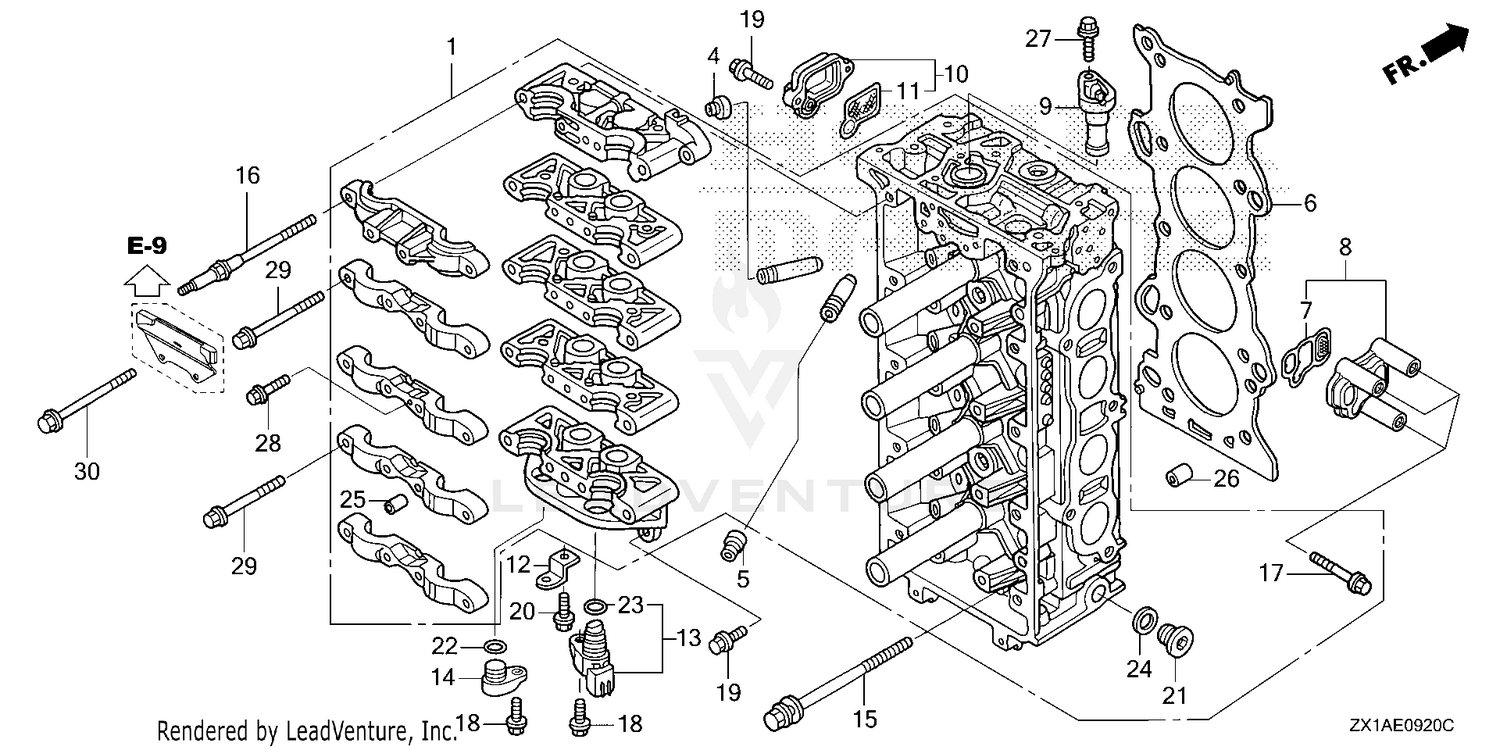

| Ref | Part Number | Description |
|---|
| 1 |
06122-ZY6-040ZA |
CYLINDER HEAD KIT *NH8* (DARK GRAY) Price: $1,697.84 |
| 2 |
12204-PNA-305 |
GUIDE, VALVE (OVER SIZE) Price: $21.36 |
| 3 |
12205-PNA-305 |
GUIDE, EX. VALVE (OVER SIZE) Price: $23.44 |
| 4 |
12210-PZ1-004 |
SEE PART DETAILS - PRI; SEAL A, VALVE STEM (NOK) Price: $5.76 |
| 5 |
12211-PZ1-004 |
SEE PART DETAILS - PRI; SEAL B, VALVE STEM (NOK) Price: $5.76 |
| 6 |
12251-ZY6-003 |
GASKET, CYLINDER HEAD Price: $184.36 |
| 7 |
15815-RAA-A02 |
FILTER ASSY., SPOOL VALVE Price: $8.98 |
| 8 |
15815-ZY9-000 |
COVER ASSY., OIL PASSAGE Price: $53.54 |
| 9 |
15834-ZY6-000 |
PLUG, VTC HOLE Price: $72.20 |
| 10 |
15840-ZY6-000ZA |
STRAINER ASSY., VTC *NH8* (DARK GRAY) Price: $31.18 |
| 11 |
15845-RAA-A01 |
FILTER ASSY., VTC Price: $13.94 |
| 12 |
32116-ZY6-000 |
BRACKET F, CLIP Price: $8.02 |
| 13 |
37510-PNB-003 |
SENSOR ASSY., TDC Price: $226.04 |
| 14 |
37521-ZY6-000 |
PLUG, TDC HOLE Price: $19.92 |
| 15 |
90005-PNA-003 |
BOLT-WASHER (11X155) Price: $15.08 |
| 16 |
90011-PNA-003 |
BOLT A, HEAD COVER Price: $16.18 |
| 17 |
90011-ZY6-030 |
BOLT, FLANGE (6X52) Price: $2.18 |
| 20 |
90021-ZZ5-M01 |
BOLT, FLANGE (6X14) Price: $1.56 |
| 21 |
90048-ZY6-040 |
BOLT, SEALING (20MM) Price: $5.56 |
| 22 |
91303-ZY6-003 |
O-RING (15X1.9) Price: $1.94 |
| 23 |
91333-PNA-003 |
O-RING (15X1.9) Price: $4.14 |
| 24 |
94109-20000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728). Price: $1.76 |
| 25 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
| 26 |
94301-14200 |
SEE PART DETAILS - PRI; PIN A, DOWEL (14X20) Price: $3.10 |
| 27 |
95701-06020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759). Price: $0.48 |
| 28 |
95701-06032-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361). Price: $2.36 |
| 29 |
95701-08090-08 |
BOLT, FLANGE (8X90) Price: $3.70 |
