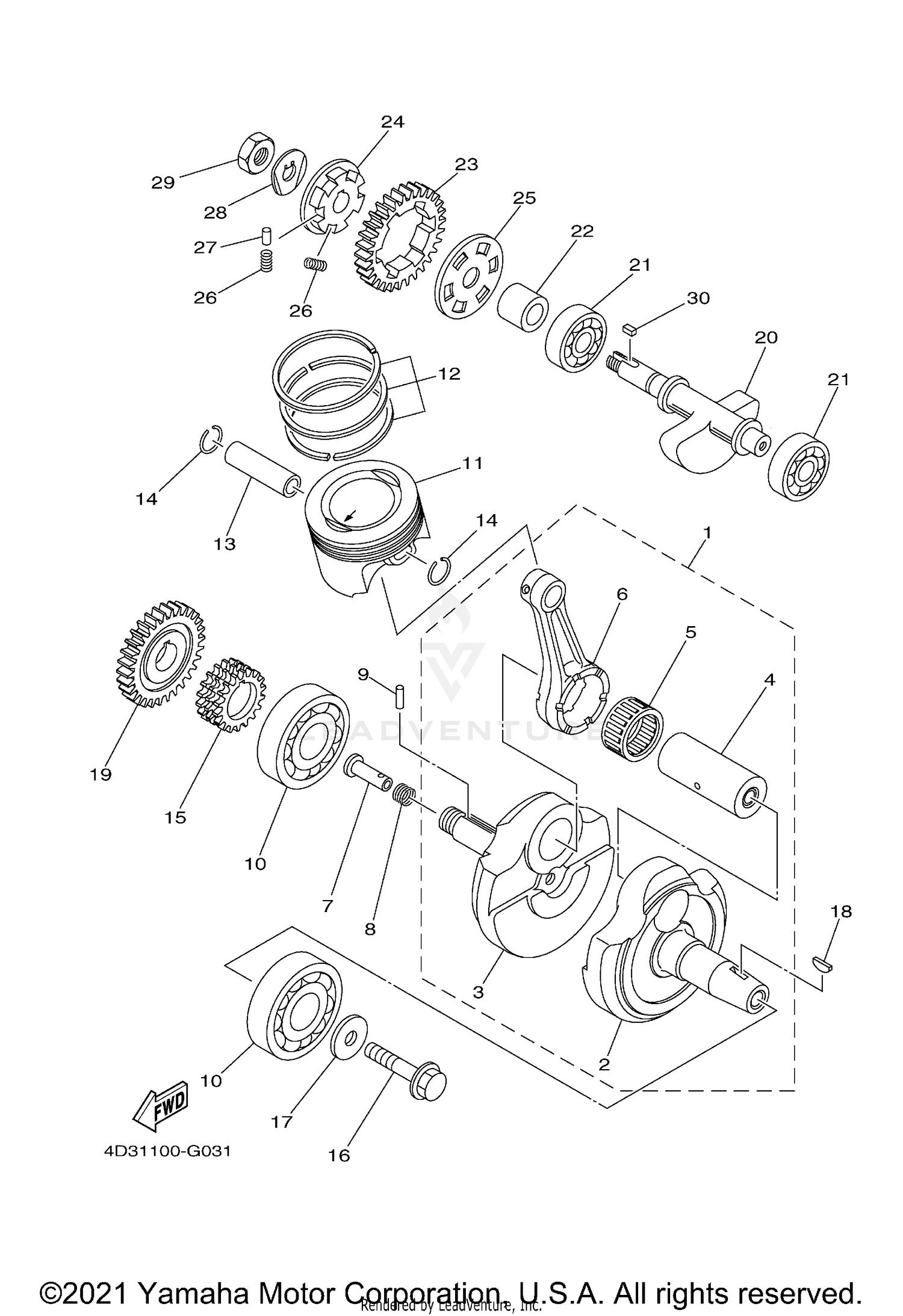

| Ref | Part Number | Description |
|---|
| 1 |
4D3-11400-00-00 |
CRANKSHAFT ASSY Price: $559.99 |
| 2 |
4D3-11412-00-00 |
CRANK 1 Price: $178.99 |
| 3 |
4D3-11422-00-00 |
CRANK 2 Price: $187.99 |
| 4 |
1S4-11681-00-00 |
PIN, CRANK 1 Price: $77.99 |
| 5 |
93310-63239-00 |
BEARING Price: $100.99 |
| 6 |
1S4-11651-00-00 |
ROD, CONNECTING Price: $82.99 |
| 7 |
90240-07105-00 |
PIN, CLEVIS Price: $18.49 |
| 8 |
90501-07629-00 |
SPRING, COMPRESSION Price: $10.49 |
| 9 |
93602-13177-00 |
PIN, DOWEL Price: $4.05 |
| 10 |
93306-37814-00 |
BEARING Price: $96.99 |
| 11 |
1S4-11631-20-A0 |
PISTON (STD) Price: $97.99 |
| 12 |
4XV-11603-01-00 |
PISTON RING SET (STD) Price: $46.99 |
| 13 |
4XV-11633-00-00 |
PIN, PISTON Price: $31.99 |
| 14 |
90468-12069-00 |
CLIP Price: $10.49 |
| 15 |
5BP-11549-00-00 |
SPROCKET, CAM CHAIN Price: $90.99 |
| 16 |
90105-10430-00 |
BOLT, FLANGE Price: $10.49 |
| 17 |
90201-105A2-00 |
WASHER, PLATE This part replaces 90201-102R1-00. Price: $9.49 |
| 18 |
90280-05001-00 |
KEY, WOODRUFF This part replaces 90280-05048-00. Price: $13.49 |
| 19 |
1S4-11536-10-00 |
GEAR, DRIVE Price: $101.99 |
| 20 |
5XT-11454-01-00 |
WEIGHT 1 Price: $72.99 |
| 21 |
93306-30214-00 |
BEARING Price: $48.99 |
| 22 |
5XT-11478-00-00 |
COLLAR Price: $12.49 |
| 23 |
1S4-11531-10-00 |
GEAR, BALANCE WEIGHT Price: $100.99 |
| 24 |
5XT-11496-00-00 |
BOSS, BUFFER Price: $64.99 |
| 25 |
5XT-11533-00-00 |
PLATE, ABSORBER Price: $15.49 |
| 26 |
90501-22721-00 |
SPRING, COMPRESSION Price: $10.49 |
| 27 |
93605-10090-00 |
PIN, DOWEL Price: $9.49 |
| 28 |
90215-12272-00 |
WASHER, LOCK Price: $14.49 |
| 29 |
90170-12370-00 |
NUT Price: $22.99 |
