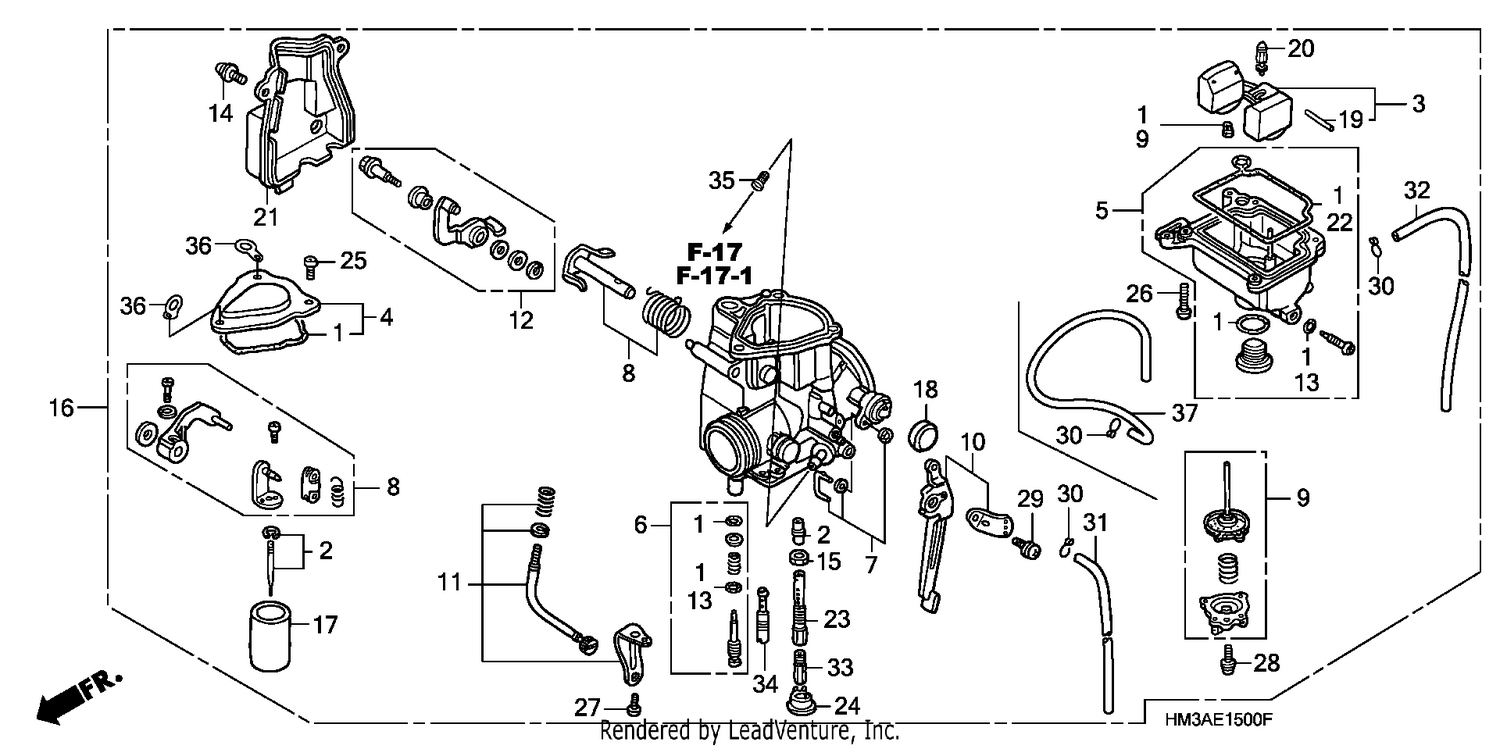

| Ref | Part Number | Description |
|---|
| 1 |
16010HM3A61 |
GASKET SET Price: Call Us |
| 2 |
16012HM3A61 |
NEEDLE SET, JET Price: Call Us |
| 3 |
16013HN0003 |
FLOAT SET Price: Call Us |
| 4 |
16014HM3L00 |
TOP SET Price: Call Us |
| 5 |
16015HM3A61 |
CHAMBER SET, FLOAT Price: Call Us |
| 6 |
16016HM3A61 |
SCREW SET Price: Call Us |
| 7 |
16017HM3L00 |
ROD SET, CHOKE Price: Call Us |
| 8 |
16018HM3A61 |
ARM SET, LINK Price: Call Us |
| 9 |
16021HM3L00 |
DIAPHRAGM SET, PUMP Price: Call Us |
| 10 |
16025HM3L00 |
LEVER SET, CHOKE Price: Call Us |
| 11 |
16028HM3L00 |
SCREW SET Price: Call Us |
| 12 |
16031HM3L00 |
ARM SET, PUMP Price: Call Us |
| 13 |
16076ND5004 |
O-RING, 1.3X4.3 Price: Call Us |
| 14 |
16080HC0003 |
SCREW-WASHER Price: Call Us |
| 15 |
16096HC0003 |
NUT, HEX. Price: Call Us |
| 16 |
16100HM3A61 |
CARBURETOR ASSY. (QB02C A) Price: Call Us |
| 17 |
16111HC0003 |
VALVE, THROTTLE Price: Call Us |
| 18 |
16148141881 |
CAP, CHOKE DUST Price: Call Us |
| 19 |
16152HN8003 |
PIN, ARM Price: Call Us |
| 20 |
16155KJ9751 |
VALVE COMP., FLOAT Price: Call Us |
| 21 |
16160HC0003 |
COVER, BODY Price: Call Us |
| 22 |
16163HM3A61 |
GASKET, FLOAT CHAMBER Price: Call Us |
| 23 |
16165MN9004 |
HOLDER, NEEDLE JET Price: Call Us |
| 24 |
16168HC4003 |
HOLDER, JET Price: Call Us |
| 25 |
93500040081H |
SCREW, PAN, 4X8 Price: Call Us |
| 26 |
93500040141H |
SCREW, PAN, 4X14 Price: Call Us |
| 27 |
93500060101H |
SCREW, PAN, 6X10 Price: Call Us |
| 28 |
938920401218 |
SCREW-WASHER, 4X12 Price: Call Us |
| 29 |
938920501018 |
SCREW-WASHER, 5X10 Price: Call Us |
| 30 |
9500202079 |
CLIP, TUBE (B7) Price: Call Us |
| 32 |
950053542050 |
TUBE, 3.5X420 (95005-35001-50M) Price: Call Us |
| 33 |
991013571220 |
JET, MAIN, #122 Price: Call Us |
| 33 |
99113GHB1200 |
JET, MAIN, #120 Price: Call Us |
| 34 |
991034200380 |
JET, SLOW, #38 Price: Call Us |
| 35 |
16176MW3A80 |
SCREEN, FUEL STRAINER Price: Call Us |
| 36 |
16179HA0003 |
BINDER Price: Call Us |
