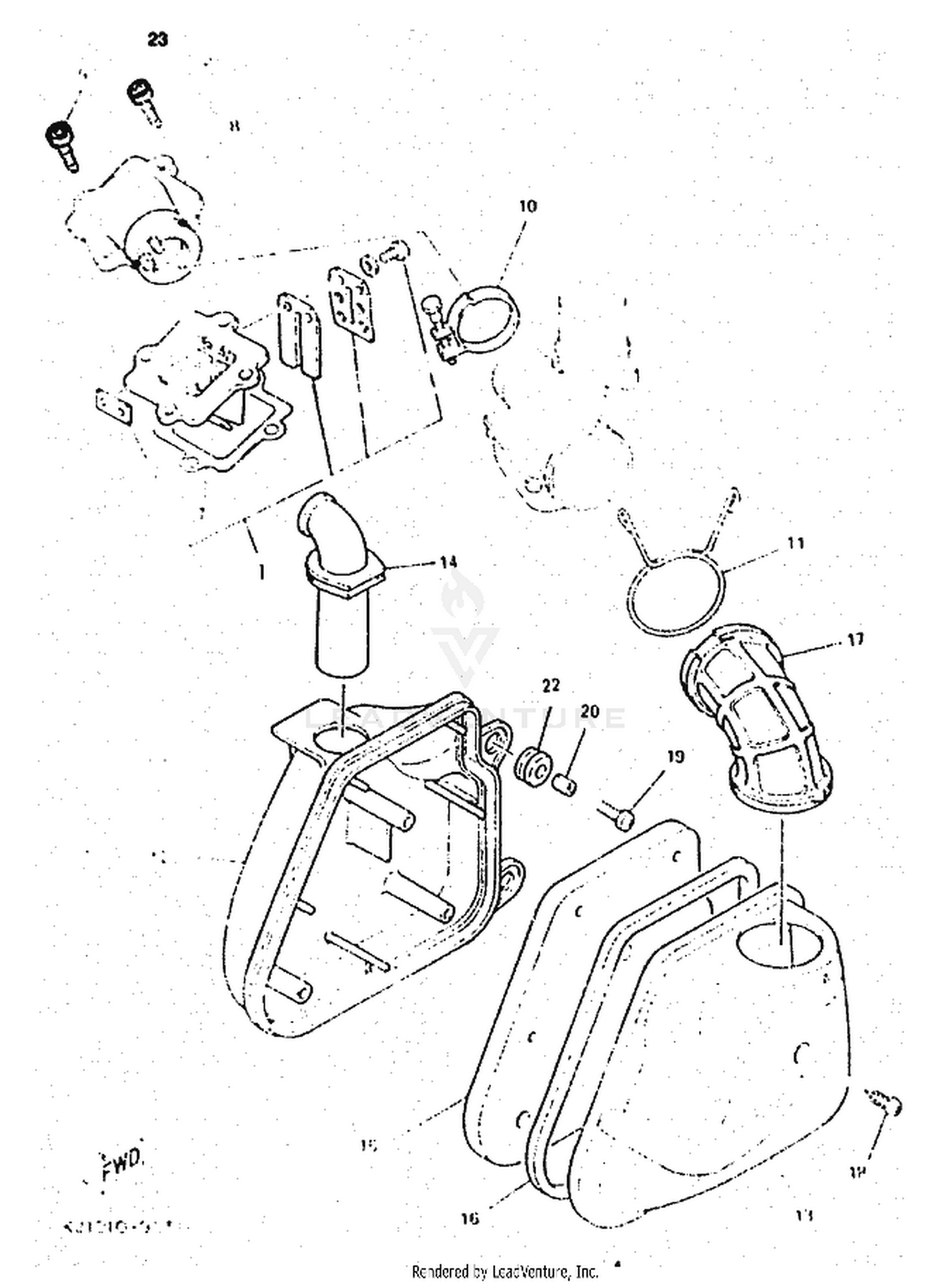

05 INTAKE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4CU-E3610-00 | REED VALVE ASSY Price: Call Us |
| 7 | 4CU-E3621-00 | GASKET, VALVE SEAT Price: Call Us |
| 8 | 4EE-E3555-00 | MANIFOLD, INTAKE Price: Call Us |
| 9 | 91317-06020 | BOLT Price: Call Us |
| 10 | 90450-32081 | HOSE CLAMP ASSY Price: Call Us |
| 11 | 90467-24140 | CLIP Price: Call Us |
| 17 | 3WG-E4453-00 | JOINT, AIR CLEANER 1 Price: Call Us |
| 18 | 97707-50125 | SCREW, TAPPING Price: Call Us |
| 19 | 98517-06020 | SCREW, PAN HEAD Price: Call Us |
| 20 | 90387-067V1 | COLLAR Price: Call Us |
| 22 | 90480-12497 | GROMMET Price: Call Us |
