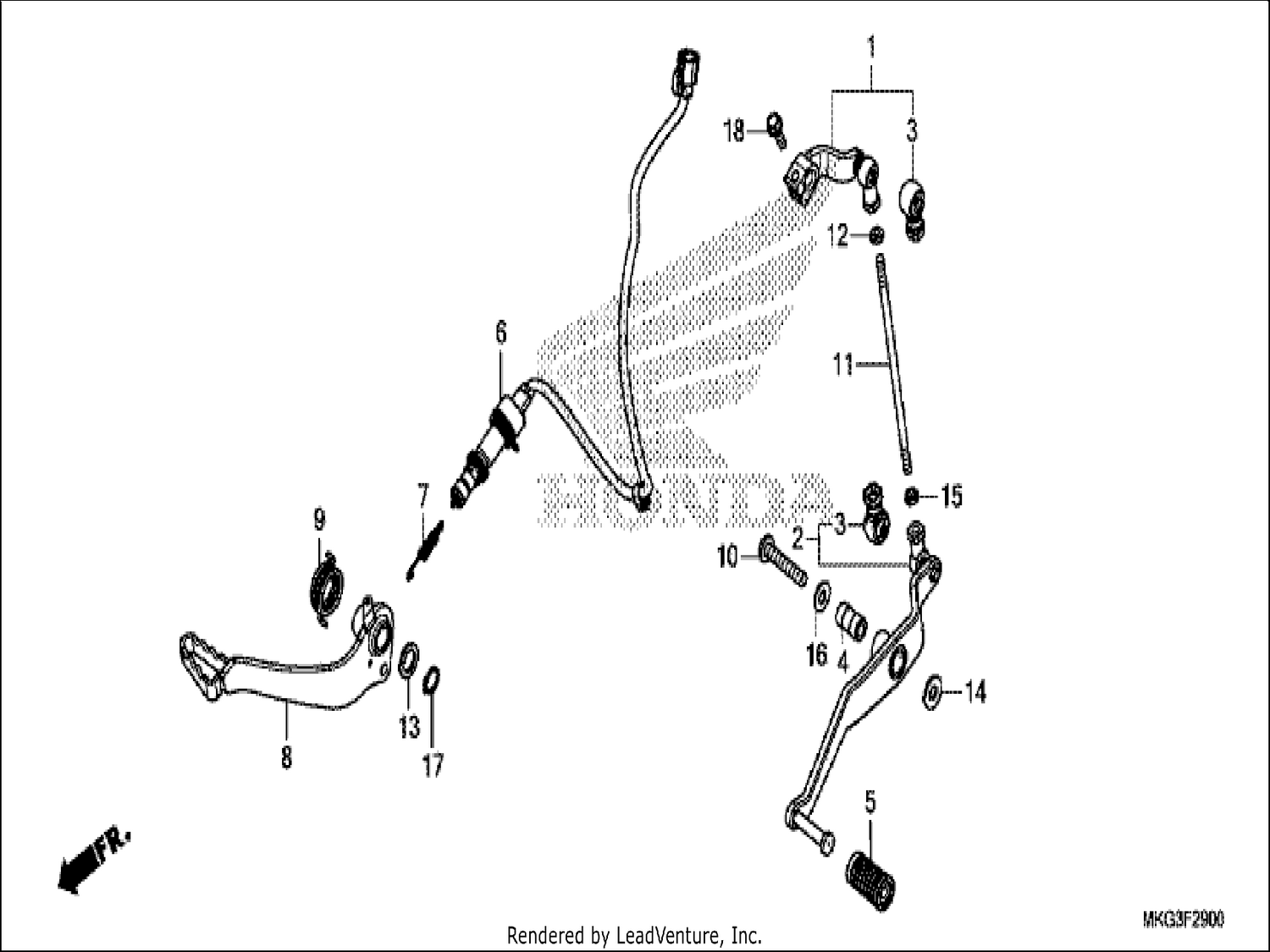

| Ref | Part Number | Description |
|---|
| 1 |
24710MGZJ00 |
ARM COMP., GEAR CHANGE Price: Call Us |
| 2 |
24720MKGA00 |
PEDAL COMP., GEAR CHANGE Price: Call Us |
| 3 |
24724MBWD21 |
COVER, DUST Price: Call Us |
| 4 |
24731K87A00 |
COLLAR, GEAR CHANGE PEDAL PIVOT Price: Call Us |
| 5 |
24781KR3770 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 6 |
35350K87A01 |
SWITCH ASSY., RR. STOP (TOYO DENSO) Price: Call Us |
| 7 |
35357K26900 |
SPRING, STOP SWITCH Price: Call Us |
| 8 |
46501K87A00 |
PEDAL COMP., RR. BRAKE Price: Call Us |
| 9 |
46514K87A00 |
SPRING, BRAKE PEDAL Price: Call Us |
| 10 |
90110K87A00 |
BOLT, SOCKET SPECIAL, 8X45 Price: Call Us |
| 11 |
90165MKGA00 |
BOLT, TIE ROD Price: Call Us |
| 12 |
90301MGZJ00 |
NUT, SPECIAL, 6MM (LEFT HAND THREAD) Price: Call Us |
| 13 |
90451GBL870 |
WASHER, 14MM Price: Call Us |
| 14 |
90526K87A00 |
WASHER, 8.5X20 Price: Call Us |
| 15 |
94001060700S |
NUT, HEX., 6MM Price: Call Us |
| 16 |
9410108000 |
WASHER, PLAIN, 8MM Price: Call Us |
| 17 |
9451114000 |
CIRCLIP, EXTERNAL, 14MM Price: Call Us |
