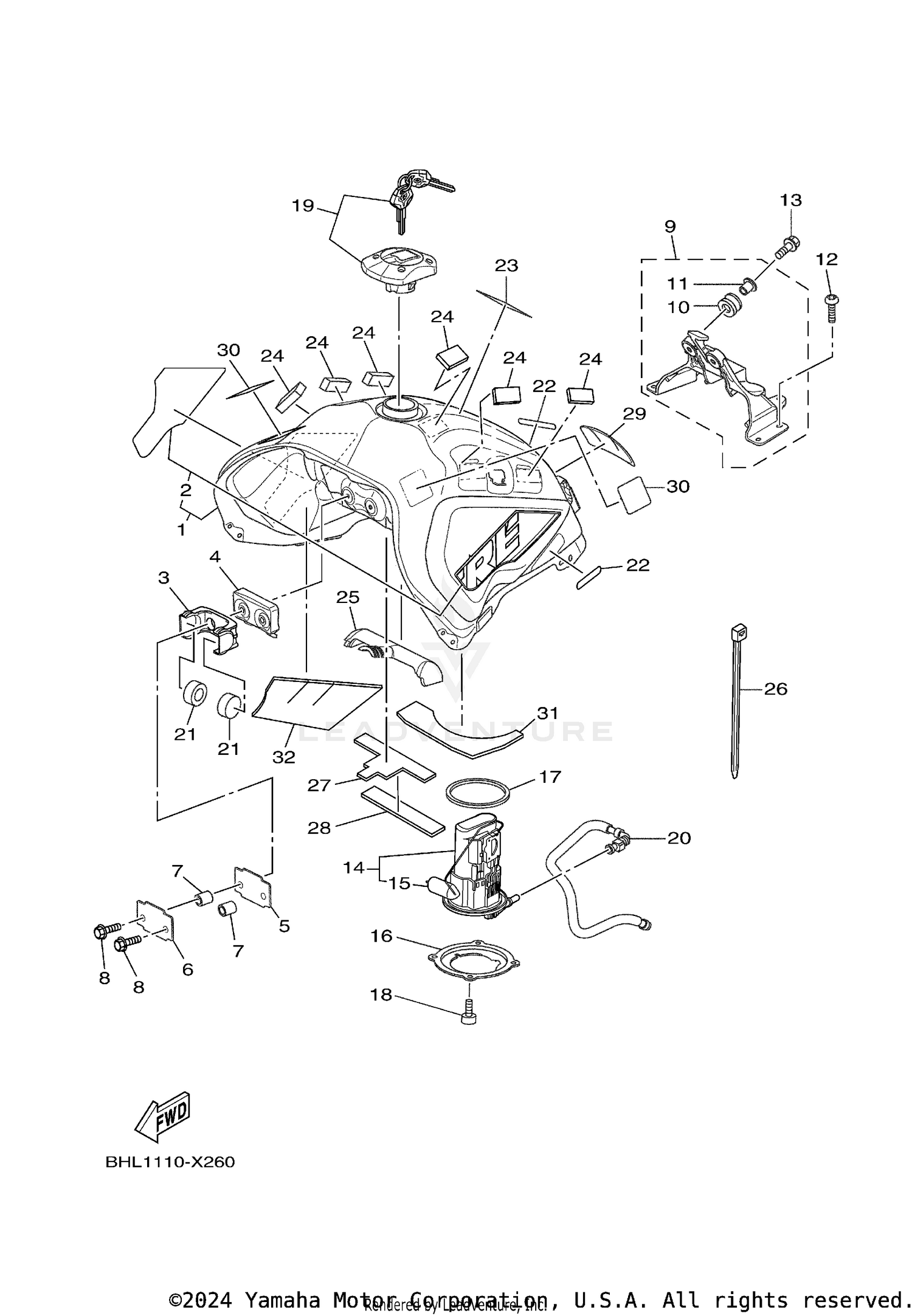

| Ref | Part Number | Description |
|---|
| 3 |
BW3-2412Y-00-00 |
BRACKET, TANK FITTIN Price: $23.99 |
| 4 |
BW3-24181-00-00 |
DAMPER, LOCATING 1 Price: $13.99 |
| 5 |
BW3-24182-00-00 |
DAMPER, LOCATING 2 Price: $8.49 |
| 6 |
BW3-24186-00-00 |
WASHER, SPECIAL Price: $4.00 |
| 7 |
90387-06553-00 |
COLLAR Price: $10.49 |
| 8 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 9 |
BW3-24105-01-00 |
TANK BRACKET ASSY 2 Price: $86.99 |
| 10 |
90480-18018-00 |
GROMMET Price: $3.80 |
| 11 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 12 |
90111-06051-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 14 |
BW3-13907-10-00 |
FUEL PUMP COMP. Price: $346.99 |
| 16 |
BW3-24491-00-00 |
BRACKET, FUEL PUMP Price: $18.49 |
| 17 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 18 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 19 |
BW3-24602-00-00 |
CAP ASSY Price: $279.99 |
| 20 |
BW3-13971-01-00 |
PIPE, FUEL 1 Price: $133.99 |
| 21 |
3TB-24181-00-00 |
DAMPER, LOCATING 1 Price: $15.49 |
| 22 |
BW3-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $5.99 |
| 23 |
5UM-21717-E0-00 |
DAMPER Price: $5.99 |
| 24 |
90520-05025-00 |
DAMPER, PLATE Price: $1.50 |
| 25 |
BW3-24184-00-00 |
DAMPER, LOCATING 4 Price: $36.99 |
| 26 |
90464-65001-00 |
CLAMP Price: $5.60 |
| 27 |
BW3-24595-00-00 |
PROTECTOR Price: $34.99 |
| 28 |
BW3-24595-10-00 |
PROTECTOR Price: $13.49 |
| 29 |
BW3-24141-00-00 |
PROTECTOR, FUEL TANK Price: $11.49 |
| 30 |
3FY-21575-01-00 |
SEAL 1 Price: $11.99 |
| 31 |
BEH-24141-00-00 |
PROTECTOR, FUEL TANK Price: $13.49 |
