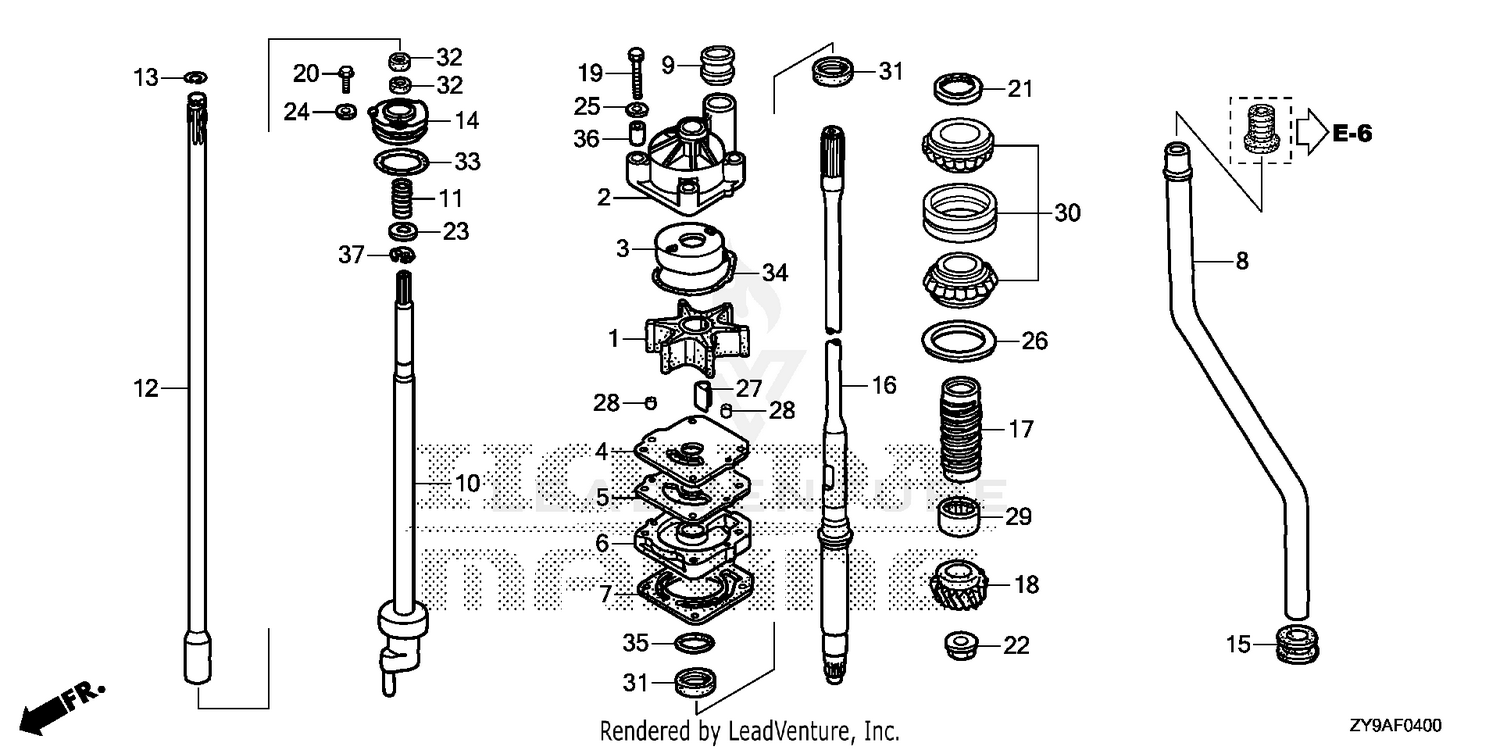

| Ref | Part Number | Description |
|---|
| 1 |
19210-ZW1-B04 |
SEE PART DETAILS - PRI; IMPELLER, PUMP Price: $52.28 |
| 2 |
19221-ZY6-000 |
HOUSING, IMPELLER Price: $73.26 |
| 3 |
19223-ZW1-B00 |
LINER, PUMP Price: $41.70 |
| 4 |
19231-ZY6-000 |
COVER, IMPELLER Price: $20.12 |
| 5 |
19234-ZW1-B00 |
GASKET B, IMPELLER Price: $12.86 |
| 6 |
19241-ZZ0-000 |
HOUSING, WATER PUMP Price: $59.40 |
| 7 |
19242-ZW1-B00 |
GASKET, WATER PUMP Price: $12.86 |
| 8 |
19251-ZY9-000 |
TUBE, WATER (L) Price: $55.28 |
| 9 |
19253-ZW1-B01 |
SEE PART DETAILS - PRI; RING, WATER TUBE SEAL Price: $7.98 |
| 10 |
24310-ZZ0-000 |
ROD, SHIFT (L) Price: $197.84 |
| 11 |
24318-ZY3-000 |
SPRING, SHIFT ROD Price: $3.74 |
| 12 |
24320-ZW1-B00 |
ROD A, SHIFT (L) Price: $96.12 |
| 13 |
24327-ZW1-000 |
RING, STOPPER Price: $2.32 |
| 14 |
24343-ZW1-B02 |
SEE PART DETAILS - PRI; HOLDER, SHIFT ROD Price: $22.00 |
| 15 |
40204-ZW1-000 |
GROMMET, EXTENSION CASE Price: $10.18 |
| 16 |
41112-ZW1-B03 |
SEE PART DETAILS - PRI; SHAFT, VERTICAL (L) Price: $733.32 |
| 17 |
41116-ZW1-B00 |
SLINGER, OIL Price: $18.64 |
| 18 |
41131-ZW1-B01 |
GEAR, PINION (12T) Price: $120.54 |
| 19 |
90010-ZV5-000 |
BOLT, HEX. (8X55) Price: $6.42 |
| 20 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 21 |
90242-ZW1-000 |
NUT, LOCK (64MM) Price: $35.94 |
| 22 |
90303-ZW1-B03 |
NUT, HEX. (16MM) Price: $25.78 |
| 23 |
90472-723-000 |
WASHER, PLAIN (12MM) Price: $1.96 |
| 24 |
90511-ZV4-000 |
WASHER, PLAIN (6MM) Price: $3.02 |
| 25 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 26 |
90518-ZW1-B00 |
SHIM A, GEAR (0.10) Price: $10.06 |
| 26 |
90519-ZW1-B00 |
SHIM B, GEAR (0.15) Price: $10.06 |
| 26 |
90520-ZW1-B00 |
SHIM C, GEAR (0.30) Price: $10.06 |
| 26 |
90521-ZW1-B00 |
SHIM D, GEAR (0.50) Price: $10.06 |
| 27 |
90752-ZW1-B02 |
KEY, WOODRUFF Price: $17.76 |
| 28 |
90756-ZV5-000 |
PIN, DOWEL (6X10) Price: $3.62 |
| 29 |
91052-ZW1-B02 |
BEARING, NEEDLE (1-1/8X1-1/2X1-1/4) Price: $77.80 |
| 30 |
91054-ZW1-B31 |
BEARING, TAPER ROLLER (30X62X40) Price: $103.56 |
| 32 |
91254-ZY3-003 |
SEAL, WATER (12X21X6) Price: $6.20 |
| 33 |
91308-MJ0-003 |
O-RING (49.4X3.1) Price: $4.94 |
| 34 |
91356-ZW1-B00 |
O-RING, WATER PUMP Price: $11.20 |
| 35 |
91359-MB0-000 |
O-RING (58.5X3.5) Price: $7.26 |
| 36 |
91552-ZY6-000 |
COLLAR, DISTANCE Price: $6.08 |
