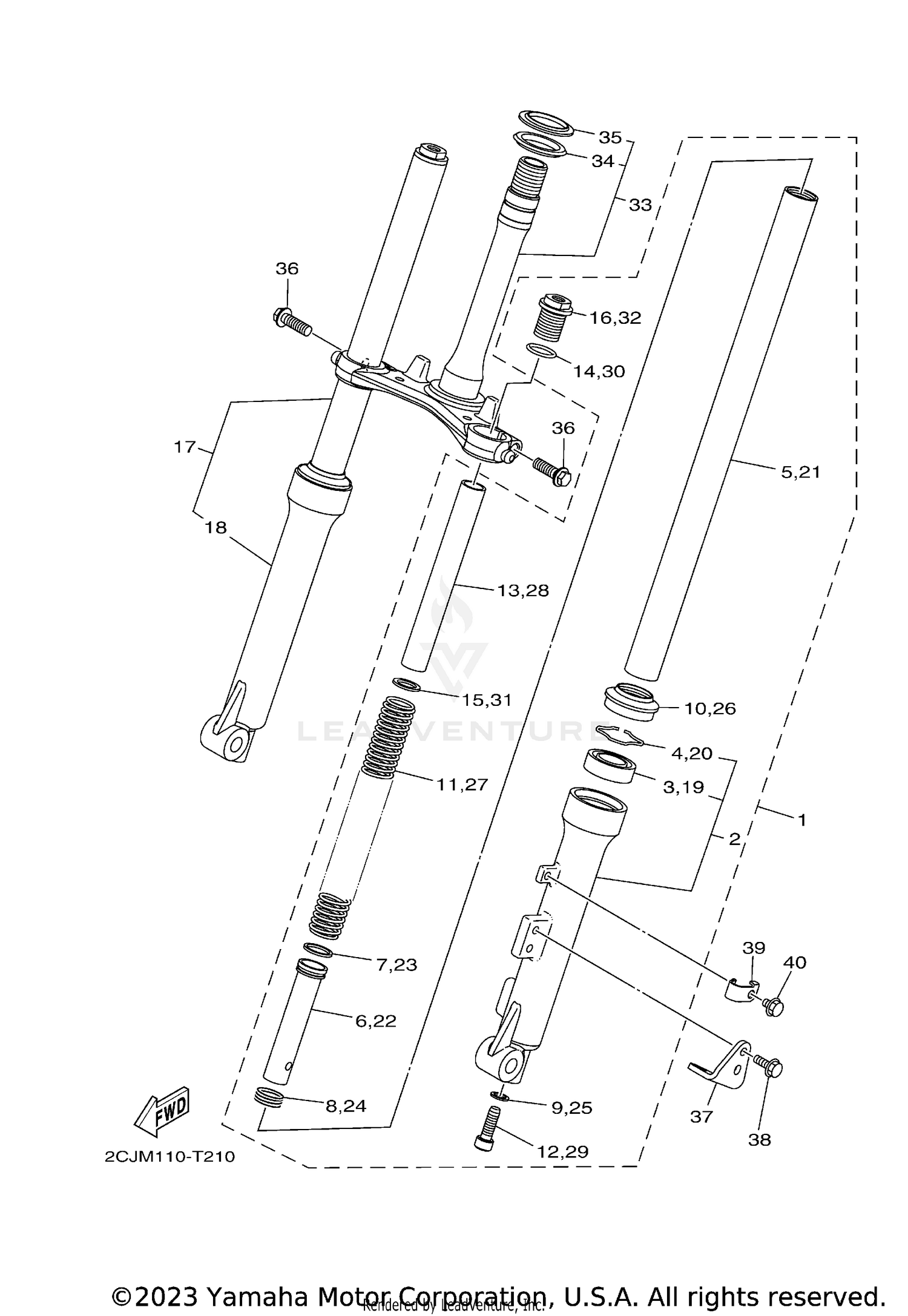

| Ref | Part Number | Description |
|---|
| 1 |
2CJ-F3102-00-00 |
FRONT FORK ASSY (L.H) Price: $264.99 |
| 2 |
2CJ-F3106-00-00 |
OUTER TUBE COMP. Price: $143.99 |
| 3 |
2SA-23145-00-00 |
OIL SEAL This part replaces BE8-F3145-00-00. Price: $12.99 |
| 4 |
5WY-F3153-00-00 |
RING, SNAP Price: $3.55 |
| 5 |
2CJ-F3110-00-00 |
INNER TUBE COMP. 1 Price: $122.99 |
| 6 |
2CJ-F3171-00-00 |
PISTON, FRONT FORK Price: $31.99 |
| 7 |
1FP-F3157-00-00 |
RING, PISTON Price: $4.20 |
| 8 |
49P-F3151-00-00 |
SPRING, REBOUND Price: $9.49 |
| 9 |
2SA-23479-00-00 |
GASKET This part replaces 2SA-F3479-00-00. Price: $5.49 |
| 10 |
2SA-23144-00-00 |
SEAL, DUST This part replaces BE8-F3144-00-00. Price: $8.49 |
| 11 |
2CJ-F3141-00-00 |
SPRING, FRONT FORK Price: $30.99 |
| 12 |
2CJ-F3356-00-00 |
BOLT 2 Price: $4.40 |
| 13 |
2CJ-F3118-00-00 |
SPACER Price: $15.49 |
| 14 |
2SA-23147-00-00 |
O-RING This part replaces 2SA-F3147-00-00. Price: $1.25 |
| 15 |
2SA-F3427-00-00 |
WASHER Price: $3.05 |
| 16 |
2SA-F3357-00-00 |
NUT Price: $34.99 |
| 17 |
2CJ-F3103-00-00 |
FRONT FORK ASSY (R.H) Price: $259.99 |
| 18 |
2CJ-F3107-00-00 |
OUTER TUBE COMP. Price: $143.99 |
| 19 |
2SA-23145-00-00 |
OIL SEAL This part replaces BE8-F3145-00-00. Price: $12.99 |
| 20 |
5WY-F3153-00-00 |
RING, SNAP Price: $3.55 |
| 21 |
2CJ-F3110-00-00 |
INNER TUBE COMP. 1 Price: $122.99 |
| 22 |
2CJ-F3171-00-00 |
PISTON, FRONT FORK Price: $31.99 |
| 23 |
1FP-F3157-00-00 |
RING, PISTON Price: $4.20 |
| 24 |
49P-F3151-00-00 |
SPRING, REBOUND Price: $9.49 |
| 25 |
2SA-23479-00-00 |
GASKET This part replaces 2SA-F3479-00-00. Price: $5.49 |
| 26 |
2SA-23144-00-00 |
SEAL, DUST This part replaces BE8-F3144-00-00. Price: $8.49 |
| 27 |
2CJ-F3141-00-00 |
SPRING, FRONT FORK Price: $30.99 |
| 28 |
2CJ-F3118-00-00 |
SPACER Price: $15.49 |
| 29 |
2CJ-F3356-00-00 |
BOLT 2 Price: $4.40 |
| 30 |
2SA-23147-00-00 |
O-RING This part replaces 2SA-F3147-00-00. Price: $1.25 |
| 31 |
2SA-F3427-00-00 |
WASHER Price: $3.05 |
| 32 |
2SA-F3357-00-00 |
NUT Price: $34.99 |
| 33 |
2CJ-F3340-00-00 |
UNDER BRACKET COMP. Price: $398.99 |
| 34 |
4GU-F3462-00-00 |
SEAL, DUST Price: $8.99 |
| 35 |
4FP-F3411-10-00 |
RACE, BALL 1 Price: $26.99 |
| 36 |
95027-08030-00 |
BOLT, FLANGE Price: $4.05 |
| 37 |
2CJ-F3857-00-00 |
HOLDER Price: $19.49 |
| 38 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 39 |
2CJ-F3867-00-00 |
HOLDER 2 Price: $3.85 |
