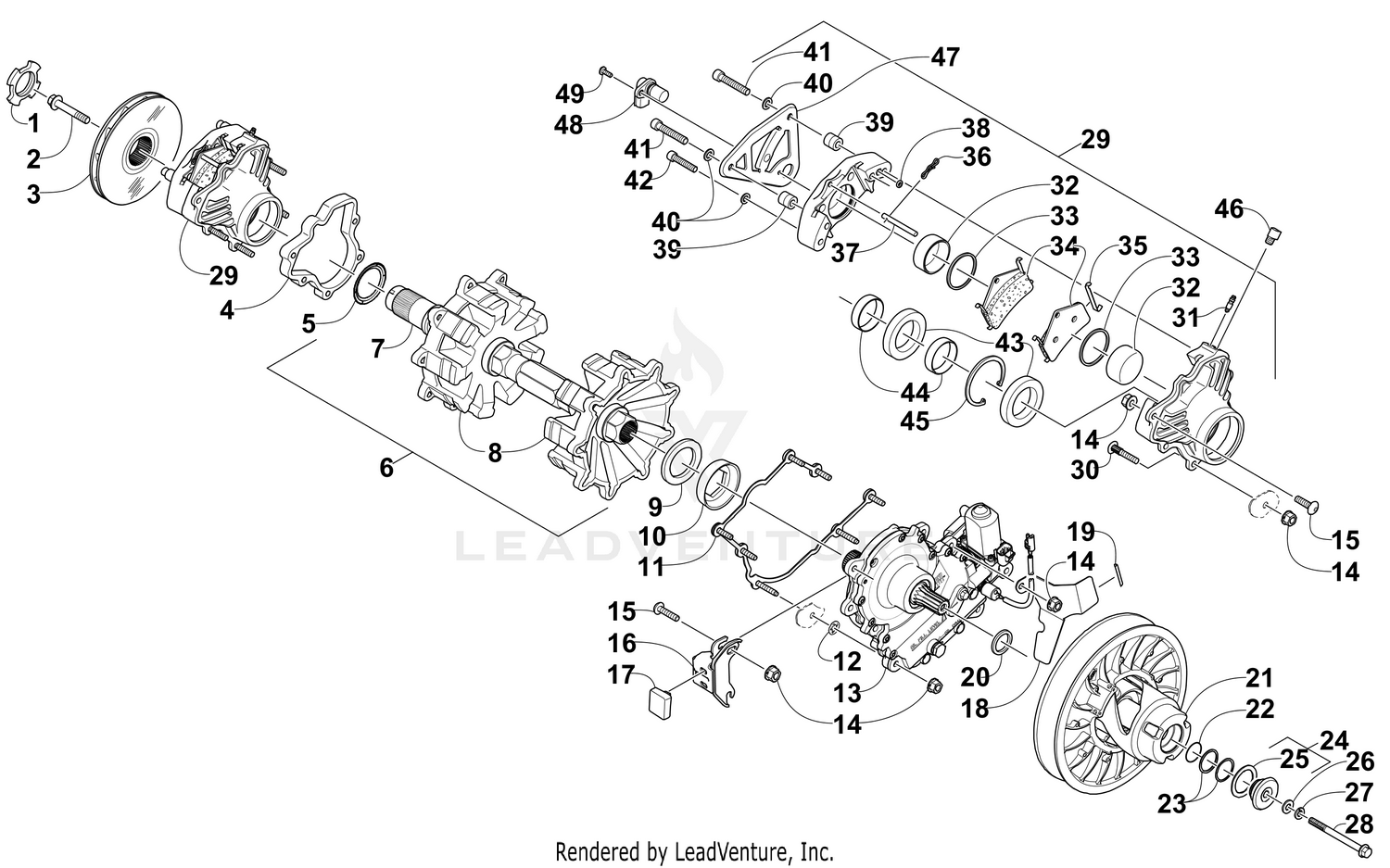

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES [101665]

Parts (47)

Ref	Part Number	Description
1	1602-957	Nut, Retaining Price: $13.28
2	1623-461	Screw, Cap Price: $22.99
3	1602-656	Disc, Brake Price: $283.95
4	1602-497	Spacer, Brake Caliper Price: $6.95
5	2602-076	Shield, Bearing Price: $13.28
7	0702-991	Driveshaft Price: $232.95
8	2602-771	Sprocket, Drive Price: $72.95
9	2602-068	Spacer Price: $16.92
10	1602-984	Seal Price: $15.71
11	1702-060	Plate, Mounting - Reverse ACT Drive - Painted Black Price: $67.95
12	1623-355	Nut, Push Price: $2.91
13	1702-291	Gearcase Assembly Price: $3,186.95
14	8427-802	Nut, Lock Price: $0.58
15	8476-830	Screw, Cap Price: $10.85
16	0708-487	Bracket, Rubber Snubber Price: $31.27
17	0608-486	Snubber, Rubber Price: $4.05
18	4606-939	Shield, Actuator Price: $21.29
19	0706-371	Trim Price: $23.76
20	0648-442	Washer, Shim (.030 in.) Price: $12.07
20	0648-443	Washer, Shim (.060 in.) Price: $1.45
21	0726-356	Clutch, Driven - Assembly Price: $640.95
22	0648-441	O-Ring Price: $0.59
23	0648-714	Washer, Shim (.090 in.) Price: $2.17
23	0648-715	Washer, Shim (.030 in.) Price: $1.32
23	0648-716	Washer, Shim (.060 in.) Price: $3.63
25	0648-788	Washer, Thrust Price: $4.11
26	1623-415	Washer Price: $9.64
27	8051-272	Washer, Lock Price: $0.24
28	1623-572	Screw, Cap Price: $36.95
30	1623-757	Bolt, Carriage - Ribbed Price: $14.49
31	1602-458	Fitting, Bleed Price: $4.60
32	1602-461	Piston Price: $91.95
33	1602-669	O-Ring Price: $22.99
35	1602-466	Clip, Anti-Rattle Price: $2.29
36	1602-467	Clip, Hairpin Price: $7.23
37	1602-464	Pin, Retaining - Brake Pad Price: $7.23
38	0602-729	O-Ring, Housing Price: $6.06
39	2602-132	Spacer, Speedometer Bracket Price: $19.35
40	0402-165	WASHER-HYD BRAKE Price: $3.46
41	1602-670	Screw, Cap Price: $3.75
42	1602-671	Screw, Cap Price: $6.06
43	2602-131	Bearing, 45 mm x 68 mm x 12 mm Price: $60.95
44	1602-463	Sleeve, Driveshaft Price: $35.95
45	1602-456	Ring, Retaining Price: $30.95
46	1602-978	Fitting, Inlet Price: $26.95
47	0630-287	Plate, Mounting - Speedometer Sensor Price: $21.77
48	0430-091	Sensor, Speedometer Price: $53.95
