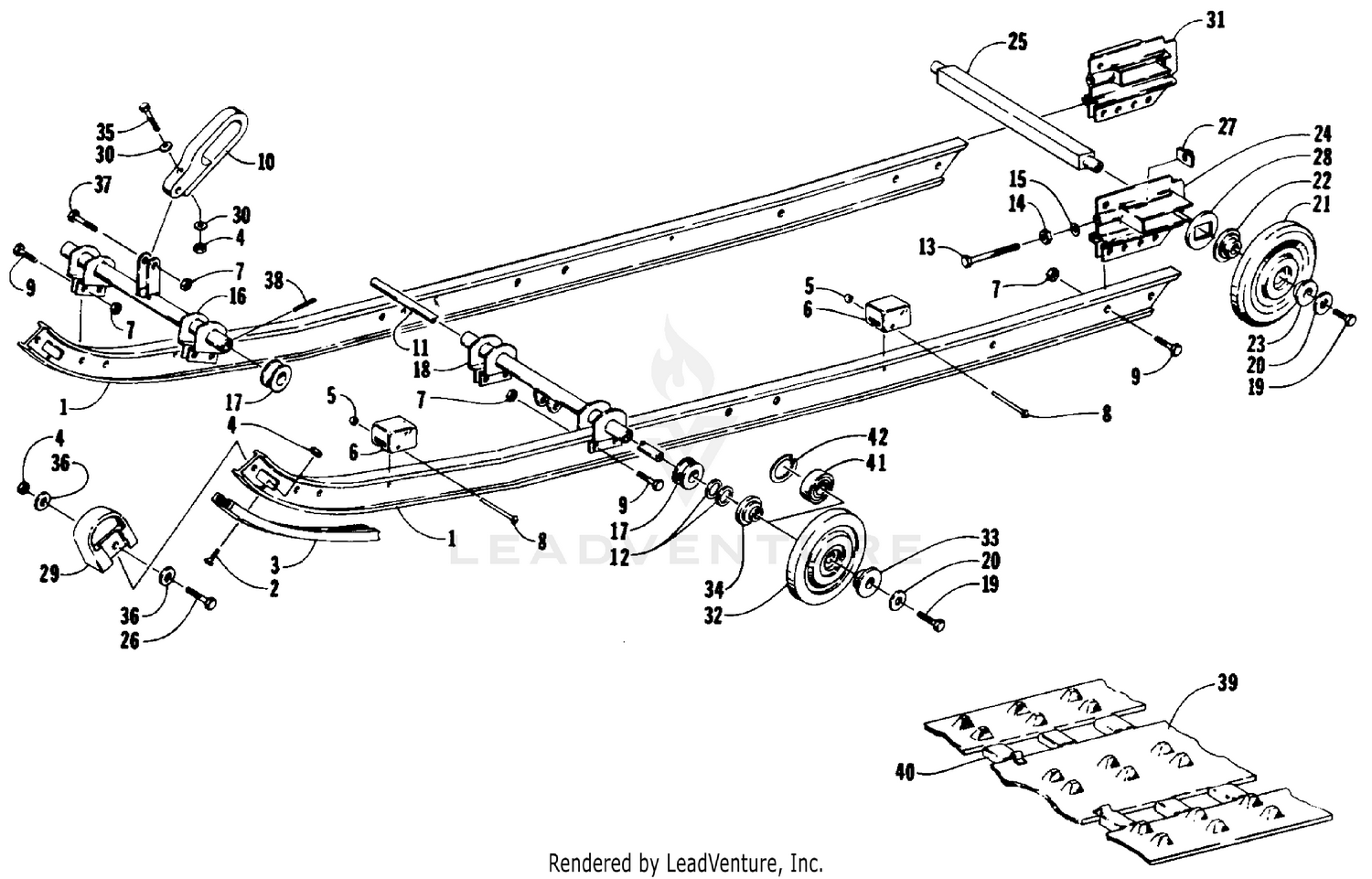

SLIDE RAIL AND TRACK ASSEMBLY [58164]

Parts (41)

Ref	Part Number	Description
1	0604-098	Rail, Formed Price: $26.95
2	0123-869	Screw, Machine Price: $1.08
3	0604-248	WEARSTRIP,SLIDE RAIL Price: $34.95
4	8040-366	Nut, Lock Price: $0.35
5	0123-766	Nut, Push Price: $1.32
6	0104-631	Pad, Shock Price: $7.08
7	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
8	0123-767	Rivet, Solid Price: $1.07
9	8002-131	Screw, Cap Price: $1.20
10	0114-324	Stop, Arm Price: $23.95
11	0604-046	Axle, Inner Price: $48.95
12	0123-439	Washer Price: $4.04
13	0124-310	Screw, Cap Price: $2.61
14	8042-486	Nut Price: $1.77
15	8051-277	Washer, Lock Price: $1.70
16	1704-194	CROSSBRACE,FRONT-PTD BLK Price: $80.95
17	0604-582	Roller/Slide, Front Spring Price: $3.51
18	1704-512	CROSS BRACE,SHOCK MTG-PTD BLK Price: $242.95
19	8012-130	Screw, Cap Price: $2.19
20	0123-019	Washer, Flat Price: $3.67
21	0114-210	WHEEL,IDL 6.38(2-3/4DIA INSR) Price: $34.95
22	0104-342	Insert, Wheel (inside) Price: $12.93
23	0104-343	Insert, Wheel (outside) Price: $16.92
24	0114-120	Housing, Rear Axle Price: $60.95
25	0114-128	Axle, Rear Price: $132.95
26	8002-044	Screw, Cap Price: $4.63
27	0104-838	Plate/Nut Price: $14.95
28	0623-023	Washer, Rectangular Price: $1.19
29	0604-231	Nose Piece, Slide Rail - Black Price: $16.61
30	8050-222	Washer Price: $0.70
31	0114-121	Housing, Rear Axle Price: $56.95
32	0604-004	Wheel, Idler Price: $55.95
33	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
34	1604-772	Insert, 5/8 Bore X 2 OD (Short) Price: $2.89
35	8002-048	Screw, Cap Price: $0.19
36	8050-217	Washer, Flat Price: $0.24
37	8002-135	SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y Price: $0.49
38	8070-285	Pin, Spring Price: $0.99
39	0602-247	TRACK,15X7.5X115.92X2.52 CAMOPLAST Price: $569.00
40	0102-255	Clip, Guide Price: $0.89
41	0107-598	Bearing Price: $13.28
