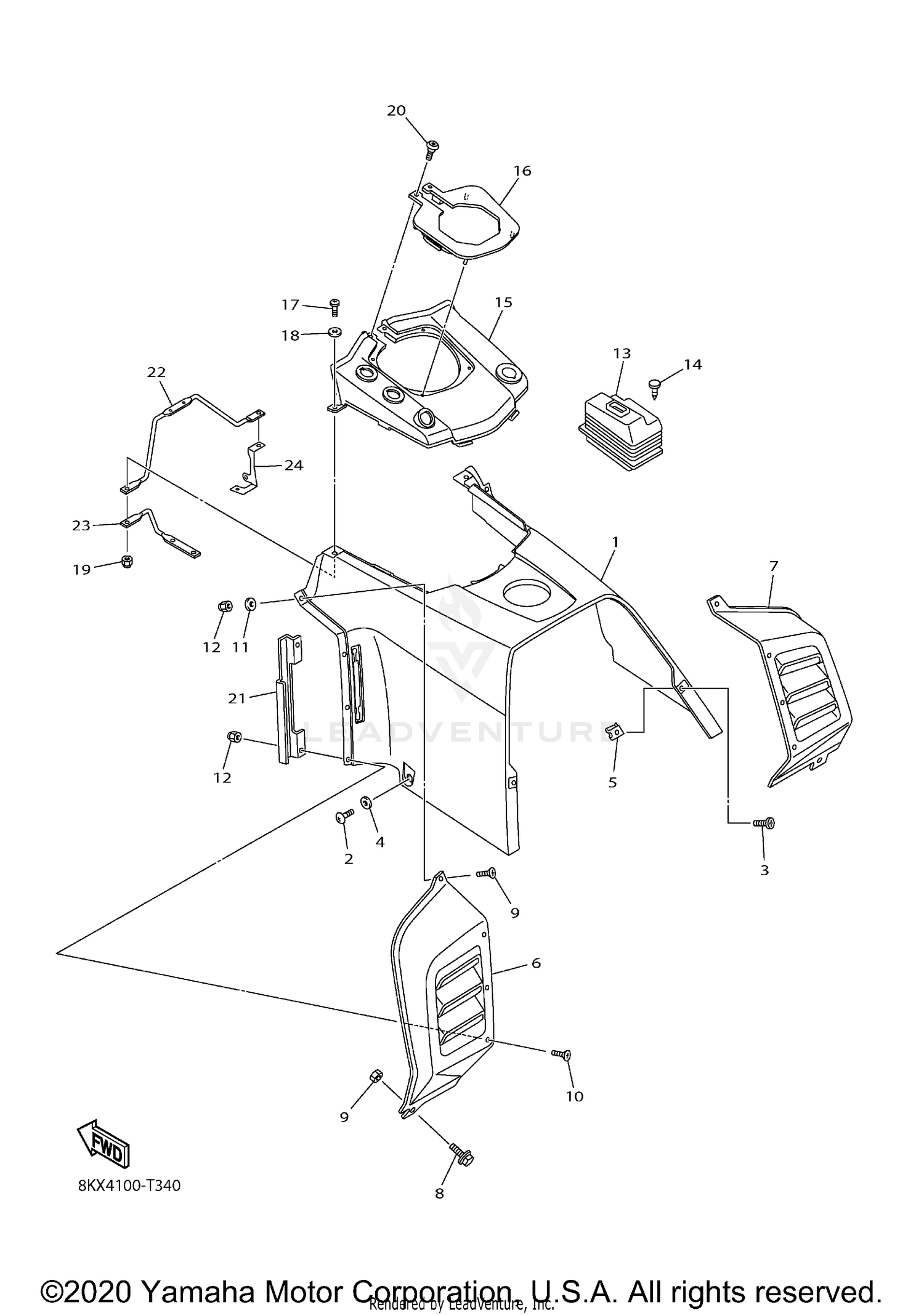

| Ref | Part Number | Description |
|---|
| 1 |
8KX-77711-00-00 |
PANEL, INSTRUMENT Price: $190.99 |
| 2 |
98907-06016-00 |
SCREW, BIND Price: $10.49 |
| 3 |
90155-06007-00 |
SCREW, FLAT FILLISTER Price: $0.50 |
| 4 |
90387-060U0-00 |
COLLAR Price: $4.90 |
| 5 |
90183-06100-00 |
NUT, SPRING Price: $11.49 |
| 6 |
83R-77131-01-00 |
LOUVER 1 Price: $59.99 |
| 7 |
83R-77132-01-00 |
LOUVER 2 Price: $59.99 |
| 8 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 9 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 10 |
98707-04016-00 |
SCREW, FLAT HEAD Price: $9.49 |
| 11 |
90201-047A2-00 |
WASHER, PLATE Price: $4.00 |
| 12 |
95707-04300-00 |
NUT, FLANGE This part replaces 95702-04300-00. Price: $1.55 |
| 13 |
83R-77731-00-00 |
SHIELD 1 Price: $55.99 |
| 14 |
90269-05055-00 |
RIVET Price: $9.49 |
| 15 |
8KX-77712-00-00 |
PANEL, INSTRUMENT Price: $161.99 |
| 16 |
8KX-77740-00-00 |
GROMMET, INSTRUMENT PANEL Price: $26.99 |
| 17 |
98907-05020-00 |
SCREW, BIND Price: $9.49 |
| 18 |
90201-05556-00 |
WASHER, PLATE This part replaces 90201-054K4-00. Price: $10.49 |
| 19 |
95707-05300-00 |
NUT, FLANGE Price: $4.55 |
| 20 |
90109-05012-00 |
BOLT Price: $3.40 |
| 21 |
8KX-2419A-00-00 |
HOLDER Price: $9.99 |
| 22 |
8KX-77721-00-00 |
BRACKET 1 Price: $25.99 |
| 23 |
8KX-77722-00-00 |
BRACKET 2 Price: $11.49 |
