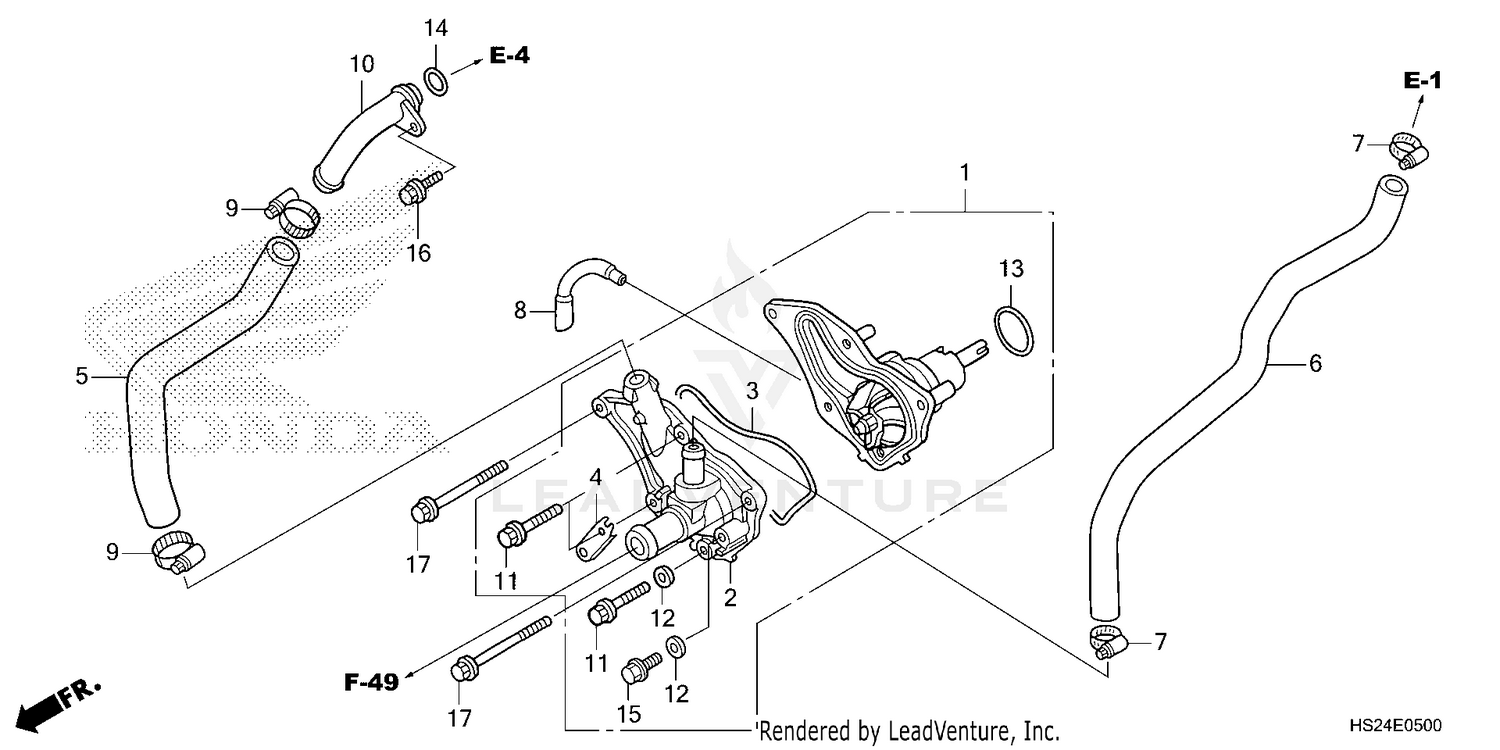

| Ref | Part Number | Description |
|---|
| 1 |
19200-HN8-A60 |
WATER PUMP Price: $288.96 |
| 2 |
19220-HN8-A60 |
COVER, WATER PUMP Price: $97.40 |
| 3 |
19226-HN8-000 |
GASKET, WATER PUMP COVER Price: $11.42 |
| 4 |
19271-HN8-A60 |
CLAMP, HOSE Price: $3.56 |
| 5 |
19501-HN8-000 |
HOSE A, WATER Price: $20.80 |
| 6 |
19502-HN8-A60 |
HOSE B, WATER Price: $30.13 |
| 7 |
19506-KA4-000 |
CLAMP, WATER HOSE Price: $11.13 |
| 8 |
19507-HN8-010 |
HOSE, DRAIN Price: $23.93 |
| 9 |
19517-ML7-691 |
CLAMP, HOSE (22-29MM) Price: $14.09 |
| 10 |
19523-HN8-000 |
JOINT, WATER Price: $16.89 |
| 11 |
90003-HN8-003 |
BOLT, FLANGE (6X22) Price: $2.13 |
| 12 |
90412-HN8-003 |
WASHER, SEALING (6.5MM) Price: $1.75 |
| 13 |
91302-MB0-013 |
O-RING (32.95X2.62) (ARAI) Price: $3.35 |
| 14 |
91304-HN8-003 |
O-RING (17.4X2.9) Price: $2.45 |
| 15 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 16 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 17 |
95701-06045-07 |
BOLT, FLANGE (6X45) This part replaces 95701-06045-00. Price: $2.27 |
