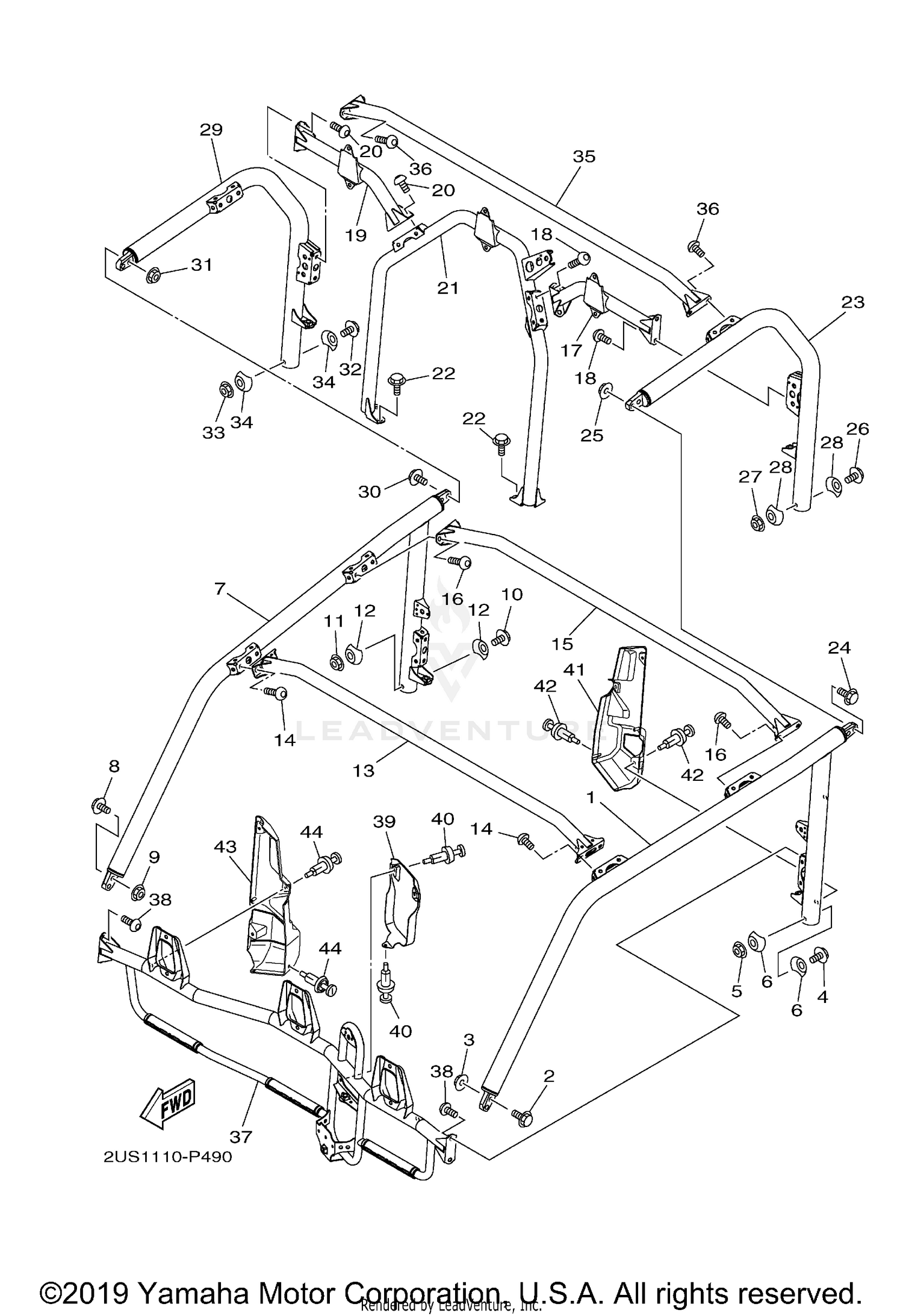

| Ref | Part Number | Description |
|---|
| 1 |
2PG-K831A-01-00 |
SUPPORT, ROOF 3 Price: $199.99 |
| 2 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 3 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 4 |
92012-10070-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 5 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 6 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 7 |
2PG-K831E-01-00 |
SUPPORT, ROOF 4 Price: $304.99 |
| 8 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 9 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 10 |
92012-10070-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 11 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 12 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 13 |
2PG-K8392-00-00 |
MEMBER, ROOF FRAME Price: $71.99 |
| 14 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 15 |
2PG-K8393-00-00 |
MEMBER, ROOF FRAME 2 Price: $90.99 |
| 16 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 17 |
2PG-K830E-00-00 |
SUNROOF PIPE ASSY 1 Price: $65.99 |
| 18 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 19 |
2PG-K830F-00-00 |
SUNROOF PIPE ASSY 2 Price: $65.99 |
| 20 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 21 |
2PG-K830A-00-00 |
ROOF SUPPORT ASSY 1 Price: $171.99 |
| 22 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 23 |
2PG-K833M-00-00 |
RRAME, SUNROOF 1 Price: $116.99 |
| 24 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 25 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 26 |
92012-10070-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 27 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 28 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 29 |
2PG-K833R-00-00 |
FRAME, SUNROOF 2 Price: $104.99 |
| 30 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 31 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 32 |
92012-10070-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 33 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 34 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 35 |
2PG-K8394-00-00 |
MEMBER, ROOF FRAME 3 Price: $65.99 |
| 36 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 37 |
2PG-K830C-00-00 |
ROOF SUPPORT ASSY 3 Price: $182.99 |
| 38 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 39 |
2PG-K8284-02-00 |
COVER, 4 This part replaces 2PG-K8284-01-00. Price: $5.49 |
| 40 |
90269-07805-00 |
RIVET Price: $1.75 |
| 41 |
2PG-K813F-02-00 |
COVER, SIDE PILLAR (L.H) This part replaces 2PG-K813F-01-00. Price: $9.49 |
| 42 |
90269-07805-00 |
RIVET Price: $1.75 |
| 43 |
2PG-K813G-02-00 |
COVER, SIDE PILLAR (R.H) This part replaces 2PG-K813G-01-00. Price: $12.99 |
