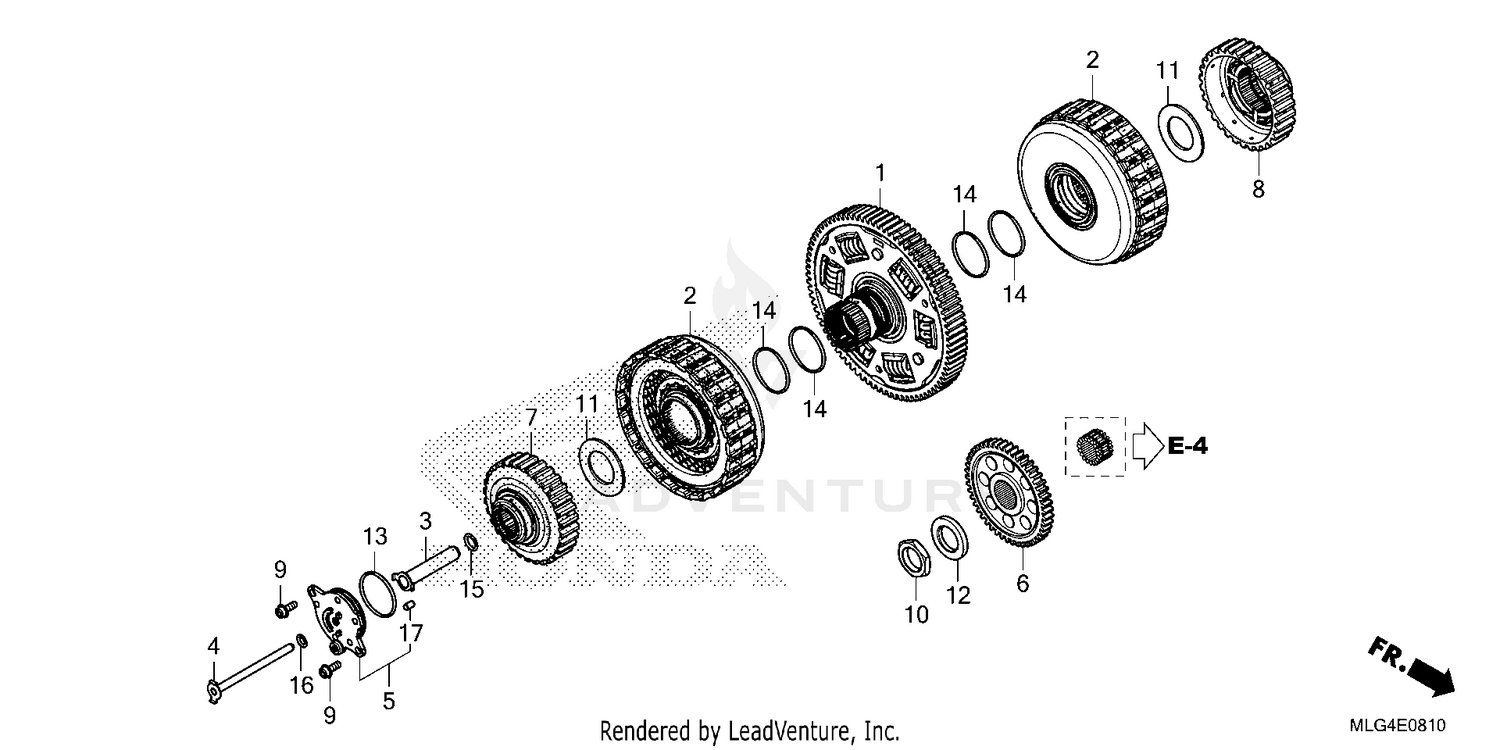

CLUTCH (2)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22100-MKS-E51 | GEAR, PRIMARY DRIVEN (82T) Price: $921.40 |
| 2 | 22500-MJP-G81 | CLUTCH ASSY. Price: $556.85 |
| 3 | 22711-MJP-G80 | PIPE A, FEED Price: $20.40 |
| 4 | 22712-MJP-G80 | PIPE B, FEED Price: $22.40 |
| 5 | 22720-MJP-G80 | GUIDE, FEED PIPE Price: $86.64 |
| 6 | 23103-MKS-E50 | GEAR, PRIMARY DRIVE (44T) Price: $121.38 |
| 7 | 23405-MJP-G80 | GUIDE (30T) Price: $122.25 |
| 8 | 23406-HL4-000 | GUIDE, SECOND CLUTCH GEAR (30T) Price: $101.73 |
| 9 | 90089-KAS-900 | BOLT, FLANGE SOCKET (5X14) Price: $2.60 |
| 10 | 90201-HL4-000 | NUT, LOCK (22MM) Price: $5.89 |
| 11 | 90403-HL4-000 | WASHER (29.5X50X2) Price: $6.25 |
| 12 | 90404-HL4-000 | WASHER (22X37X5) Price: $8.35 |
| 13 | 91302-K0G-911 | O-RING (39.8X2.2) This part replaces 91302-PA9-003. Price: $1.15 |
| 14 | 91302-RGC-003 | O-RING (35X2.2) Price: $3.35 |
| 15 | 91308-PY4-003 | O-RING (10.7X1.9) Price: $2.28 |
| 16 | 91315-PC9-004 | O-RING (6X1.5) (N0K) Price: $2.02 |
| 17 | 94303-05080 | PIN, DOWEL (5X8) This part replaces 94302-05080. Price: $2.35 |
