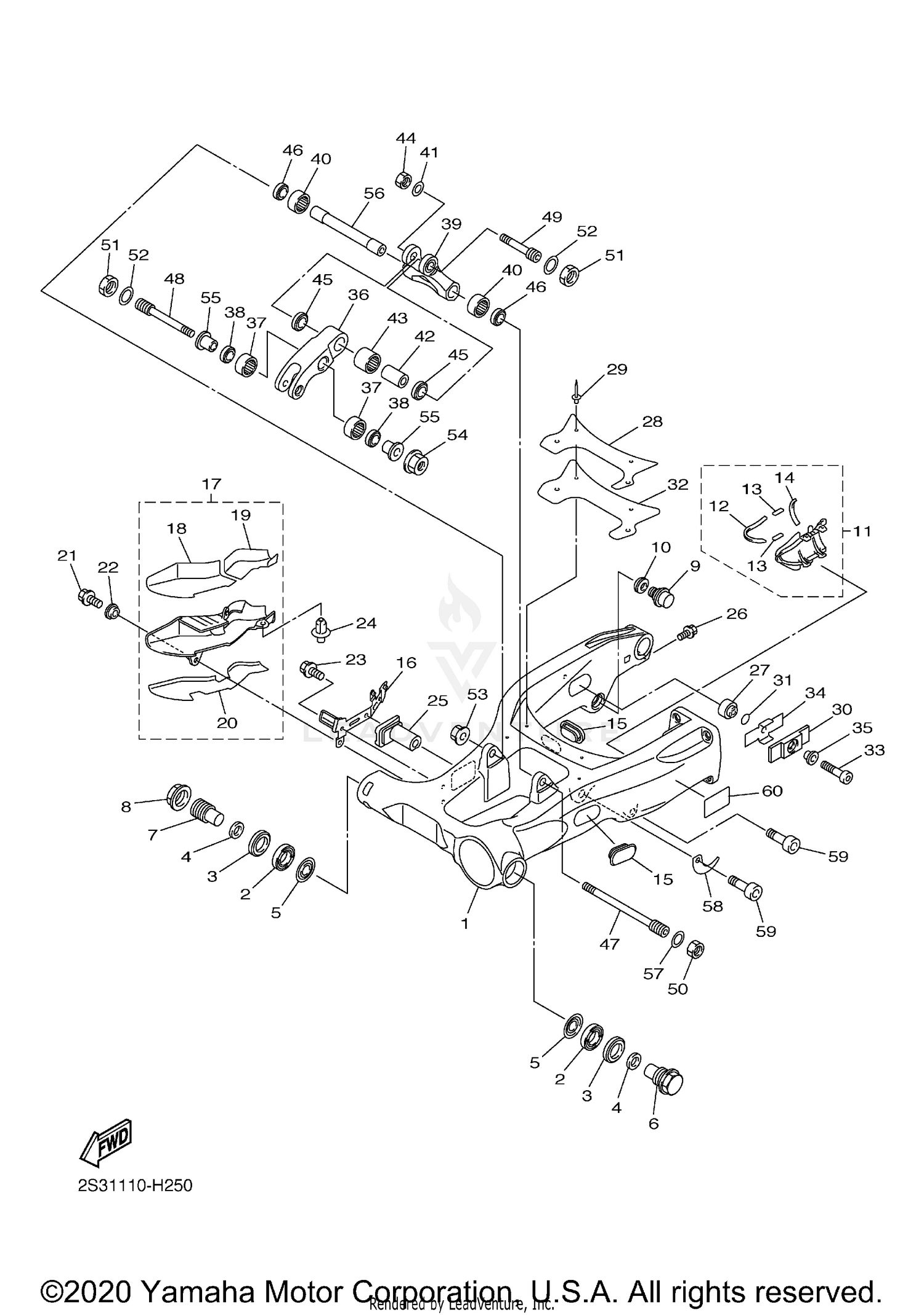

| Ref | Part Number | Description |
|---|
| 2 |
93332-00051-00 |
BEARING (HI-CAP3 0204JR) Price: $78.99 |
| 3 |
93106-28003-00 |
OIL SEAL Price: $6.49 |
| 4 |
90387-20031-00 |
COLLAR Price: $12.99 |
| 5 |
2S3-2211E-00-00 |
PANEL, INNER 1 Price: $4.40 |
| 6 |
2S3-22141-00-00 |
SHAFT, PIVOT Price: $52.99 |
| 7 |
2S3-2214H-00-00 |
SHAFT, PIVOT 2 Price: $43.99 |
| 8 |
90179-28007-00 |
NUT Price: $27.99 |
| 9 |
2S3-2214E-00-00 |
STOPPER, TORQUE Price: $38.99 |
| 10 |
2S3-22117-00-00 |
CAP Price: $14.49 |
| 11 |
2S3-22250-00-00 |
COVER ASSY Price: $40.99 |
| 12 |
2S3-22218-00-00 |
DAMPER, SHOCK ABSORBER LOWER Price: $0.50 |
| 13 |
2S3-22483-00-00 |
DAMPER 1 Price: $0.50 |
| 14 |
2S3-22492-00-00 |
DAMPER 2 Price: $0.50 |
| 15 |
2S3-22129-00-00 |
COVER, THRUST 2 Price: $5.99 |
| 16 |
2S3-22163-00-00 |
BRACKET Price: $27.99 |
| 17 |
2S3-228A0-00-00 |
COVER ASSY 1 Price: $53.99 |
| 18 |
2S3-27498-00-00 |
SEAT 1 Price: $4.25 |
| 19 |
2S3-27499-00-00 |
SEAT 2 Price: $4.00 |
| 20 |
2S3-2749A-00-00 |
SEAT 3 Price: $3.15 |
| 21 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 22 |
90387-06200-00 |
COLLAR Price: $8.49 |
| 23 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06081-00. Price: $3.55 |
| 24 |
90269-08069-00 |
RIVET This part replaces 90269-08066-00. Price: $2.65 |
| 25 |
2S3-2214F-00-00 |
DAMPER 1 Price: $21.99 |
| 26 |
91314-08035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.70 |
| 27 |
2S3-2214G-00-00 |
DAMPER 2 Price: $7.49 |
| 28 |
2S3-22168-00-00 |
PATCH Price: $15.99 |
| 29 |
90267-40172-00 |
RIVET, BLIND (4X19) Price: $1.80 |
| 30 |
2S3-21639-00-00 |
DAMPER 2 Price: $10.49 |
| 31 |
2S3-22249-00-00 |
PLATE Price: $1.20 |
| 32 |
2S3-21649-00-00 |
DAMPER Price: $11.99 |
| 33 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 34 |
2S3-2216B-00-00 |
BRACKET, 1 Price: $5.49 |
| 35 |
90387-081N1-00 |
COLLAR Price: $8.49 |
| 36 |
2S3-2217A-00-00 |
ARM, RELAY Price: $320.99 |
| 37 |
93315-31758-00 |
BEARING Price: $44.99 |
| 38 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 39 |
2S3-2217M-00-00 |
ARM 1 Price: $263.99 |
| 40 |
93315-31758-00 |
BEARING Price: $44.99 |
| 41 |
90201-12050-00 |
WASHER, PLATE Price: $4.35 |
| 42 |
90387-123M3-00 |
COLLAR Price: $23.99 |
| 43 |
93315-32053-00 |
BEARING Price: $36.99 |
| 44 |
90185-12119-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 45 |
93109-20001-00 |
OIL SEAL Price: $13.49 |
| 46 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 47 |
90109-10055-00 |
BOLT Price: $25.99 |
| 48 |
90109-12017-00 |
BOLT Price: $31.99 |
| 49 |
90109-12016-00 |
BOLT Price: $33.99 |
| 50 |
90170-16M27-00 |
NUT Price: $12.99 |
| 51 |
90170-18392-00 |
NUT Price: $10.49 |
| 52 |
90201-18025-00 |
WASHER, PLATE Price: $6.49 |
| 53 |
95607-10200-00 |
NUT, U FLANGE Price: $4.15 |
| 54 |
95607-12200-00 |
NUT, SELF-LOCKING Price: $6.49 |
| 55 |
90387-12044-00 |
COLLAR Price: $18.99 |
| 56 |
90387-10067-00 |
COLLAR Price: $24.99 |
| 57 |
90201-16022-00 |
WASHER, PLATE Price: $10.49 |
| 58 |
2S3-22131-00-00 |
STAY, CHAIH CASE 1 Price: $8.49 |
| 59 |
91312-06014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
