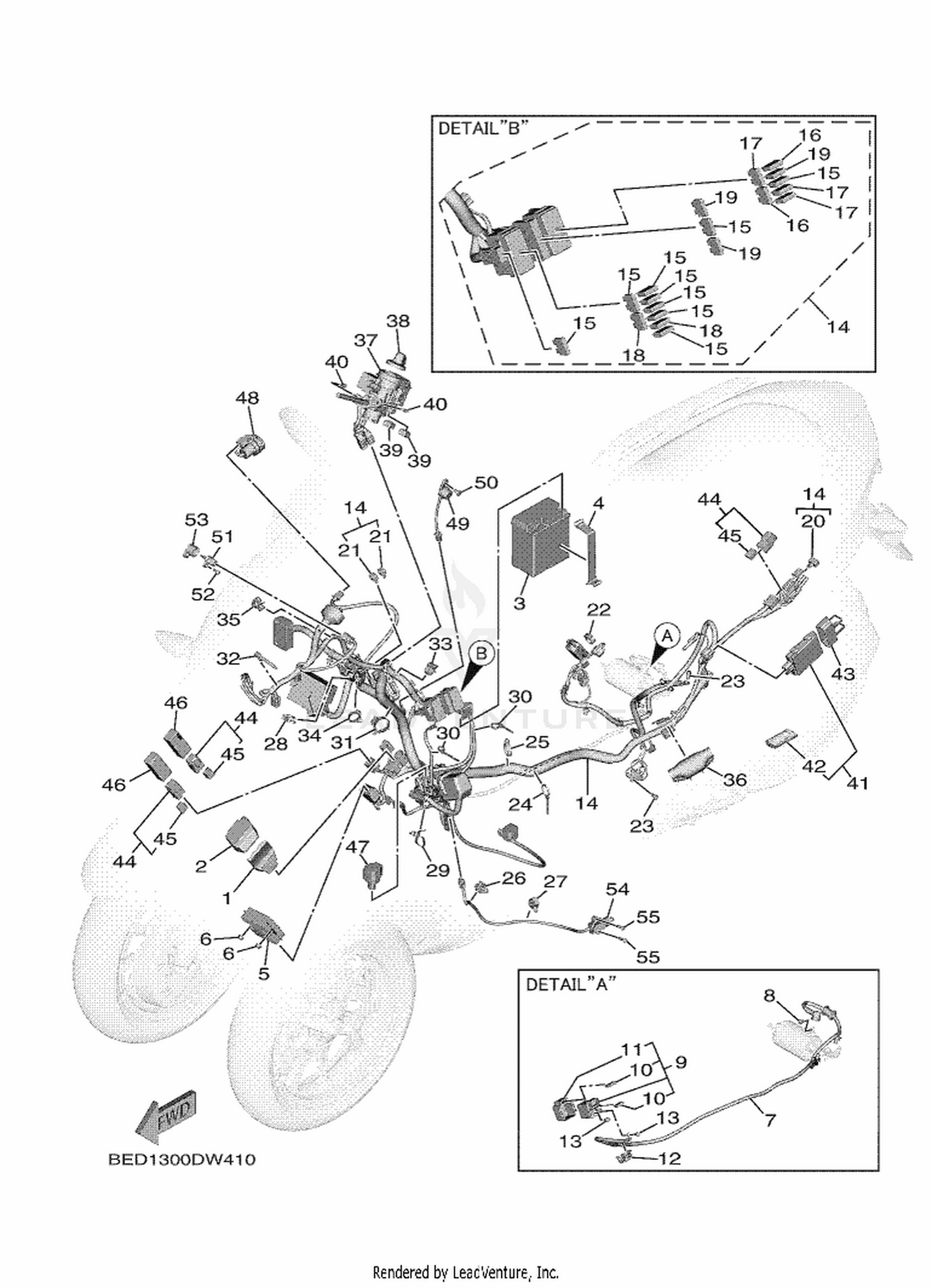

41 ELECTRICAL 1
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BED-H591A-00 | ENGINE CONTROL UNIT ASSY Price: Call Us |
| 2 | B5X-H2591-00 | BAND Price: Call Us |
| 3 | BX9-H2100-00 | BATTERY ASSY (YUASA YTZ8V) Price: Call Us |
| 4 | B6F-H2131-00 | BAND, BATTERY Price: Call Us |
| 5 | 2GS-H1960-01 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 6 | 95702-06500 | NUT, WITH WASHER Price: Call Us |
| 7 | BX9-H1815-00 | CORD, STARTER MOTOR Price: Call Us |
| 8 | 90149-05018 | SCREW Price: Call Us |
| 9 | B74-H1940-00 | STARTER RELAY ASSY Price: Call Us |
| 12 | 90464-06008 | CLAMP Price: Call Us |
| 13 | 91312-05008 | BOLT Price: Call Us |
| 14 | BED-H2590-00 | WIRE HARNESS ASSY Price: Call Us |
| 22 | 90464-16003 | CLAMP Price: Call Us |
| 23 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 24 | 90464-36800 | CLAMP Price: Call Us |
| 25 | 90464-24230 | CLAMP Price: Call Us |
| 26 | 90464-10008 | CLAMP Price: Call Us |
| 27 | 90464-12018 | CLAMP Price: Call Us |
| 28 | 90464-18808 | CLAMP Price: Call Us |
| 29 | 90464-40802 | CLAMP Price: Call Us |
| 30 | 90465-13M11 | CLAMP Price: Call Us |
| 31 | 90464-30001 | CLAMP Price: Call Us |
| 33 | 90464-16006 | CLAMP Price: Call Us |
| 34 | 90464-20010 | CLAMP Price: Call Us |
| 35 | 90464-18808 | CLAMP Price: Call Us |
| 36 | 1DW-H252U-00 | COVER Price: Call Us |
| 37 | BX9-H2501-01 | MAIN SWITCH STEERING LOCK Price: Call Us |
| 38 | BX9-H276E-00 | KNOB COMP. Price: Call Us |
| 39 | 90464-09806 | CLAMP Price: Call Us |
| 40 | 90109-06318 | BOLT Price: Call Us |
| 41 | B5X-H6260-01 | REMOTE CONTROL UNIT ASSY Price: Call Us |
| 43 | BF6-H5546-00 | BAND Price: Call Us |
| 44 | 1ST-81950-00 | RELAY ASSY (1ST-00) Price: Call Us |
| 46 | BX9-H252U-00 | COVER Price: Call Us |
| 47 | 1PA-H2576-00 | SENSOR, LEAN ANGLE Price: Call Us |
| 48 | BB8-H254B-00 | TERMINAL COMP. Price: Call Us |
| 49 | B3F-H3383-00 | BUZZER Price: Call Us |
| 50 | 98902-06012 | SCREW, BIND Price: Call Us |
| 51 | 5YU-85886-00 | SENSOR, AIR TEMPERATURE Price: Call Us |
| 52 | 98512-05014 | SCREW, PAN HEAD Price: Call Us |
| 53 | 20S-1445C-01 | HOLDER Price: Call Us |
| 54 | 1PN-H2566-01 | SWITCH, SIDE STAND Price: Call Us |
