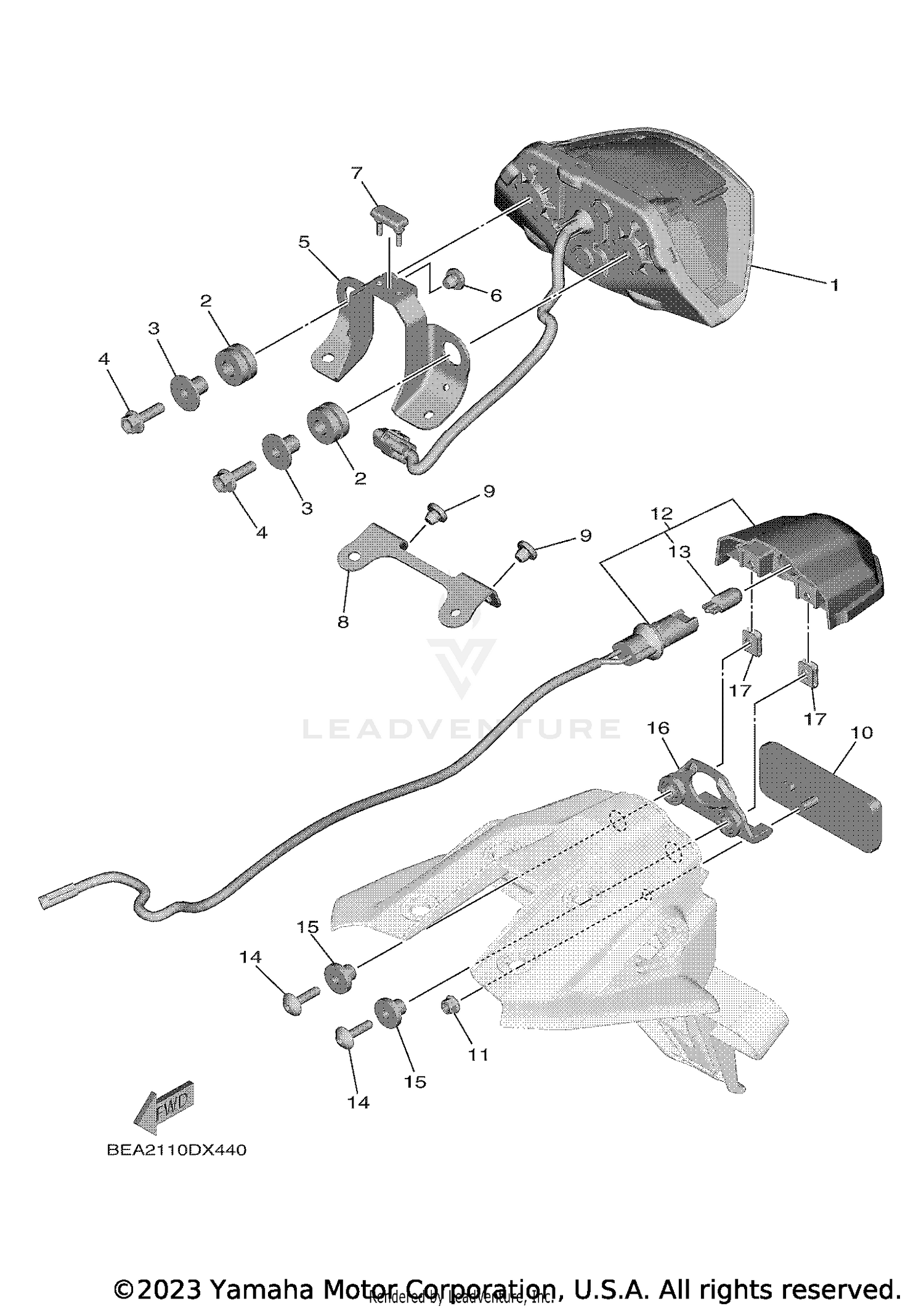

TAILLIGHT
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BEA-84700-10-00 | TAILLIGHT ASSY Price: $253.99 |
| 2 | 90480-14229-00 | GROMMET Price: $9.49 |
| 3 | 90387-06042-00 | COLLAR Price: $9.49 |
| 4 | 95D32-06020-00 | BOLT, FLANGE DEEP RECESS Price: $1.35 |
| 5 | BEA-2117E-00-00 | BRACKET, TAILLIGHT Price: $31.99 |
| 6 | 90338-07157-00 | PLUG Price: $8.49 |
| 7 | 682-44532-01-00 | STOPPER, UPPER MOU Price: $2.95 |
| 8 | BEA-2116M-00-00 | BRACKET 10 Price: $12.49 |
| 9 | 90338-07157-00 | PLUG Price: $8.49 |
| 10 | 3Y6-85130-02-00 | REAR REFLECTOR ASSY Price: $30.99 |
| 11 | 95607-05200-00 | NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 12 | 2PN-84745-02-00 | LICENCE LIGHT UNIT ASSY This part replaces 2PN-84745-01-00. Price: $45.99 |
| 13 | 4SV-84347-00-00 | BULB (12V-5W) This part replaces 5DM-84347-00-00. Price: $9.49 |
| 14 | 90111-05026-00 | BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 15 | 90387-05044-00 | COLLAR Price: $15.49 |
| 16 | B5U-21649-00-00 | DAMPER Price: $11.49 |
