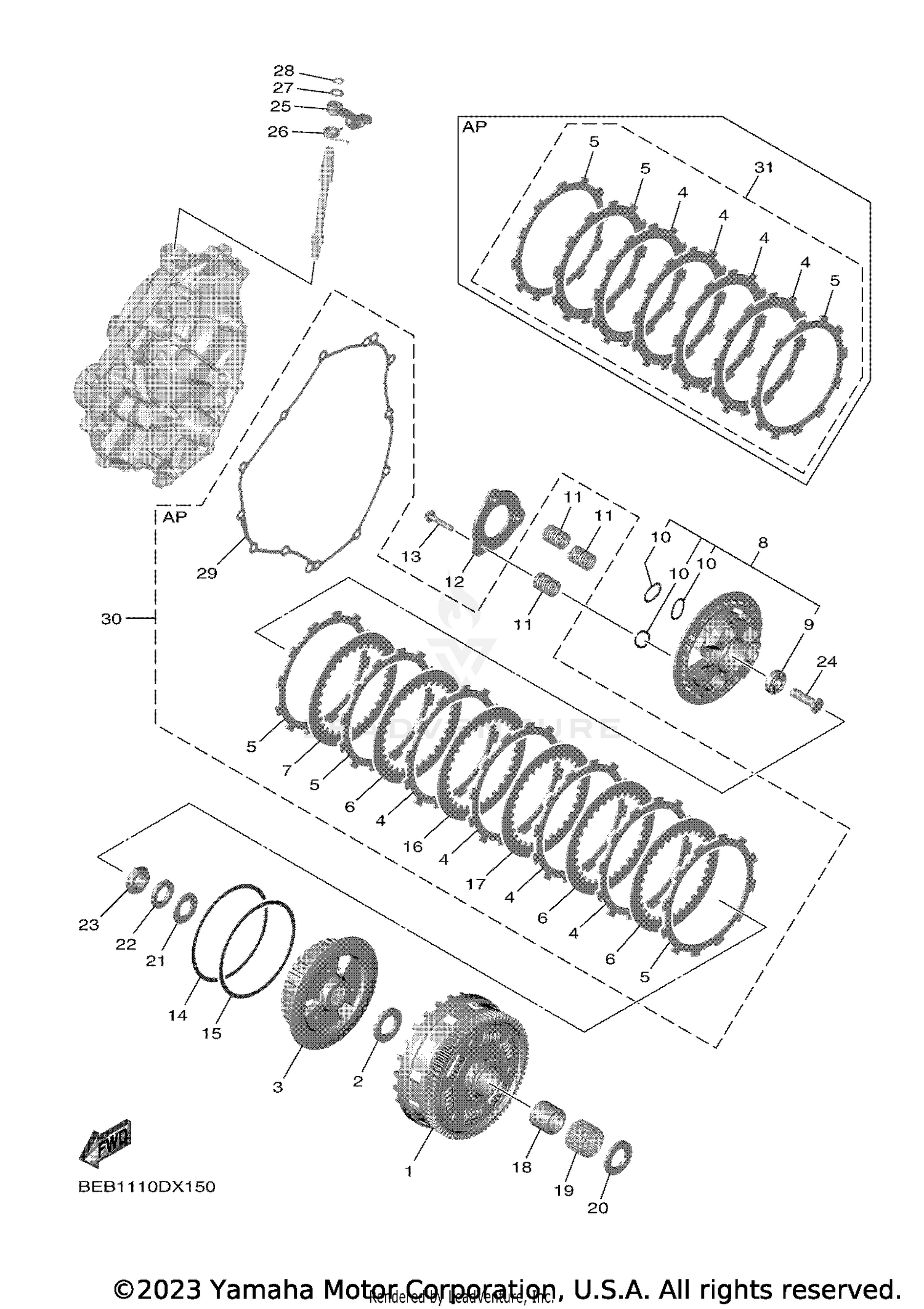

| Ref | Part Number | Description |
|---|
| 1 |
1WS-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $423.99 |
| 2 |
363-16154-00-00 |
PLATE, THRUST 1 Price: $17.99 |
| 3 |
BEB-16371-00-00 |
BOSS, CLUTCH Price: $107.99 |
| 4 |
B7N-16321-00-00 |
PLATE, FRICTION Price: $15.49 |
| 5 |
B90-16331-00-00 |
PLATE, FRICTION 2 Price: $25.99 |
| 8 |
BEB-16350-00-00 |
PRESSURE PLATE ASS Price: $100.99 |
| 9 |
BEB-16737-00-00 |
BEARING, THRUST Price: $17.49 |
| 10 |
1TD-16774-00-00 |
WASHER Price: $5.99 |
| 11 |
BEB-16173-00-00 |
SPRING, COMPRESSIO Price: $10.49 |
| 12 |
B90-16352-00-00 |
PLATE, PRESSURE 2 Price: $11.49 |
| 13 |
2CR-16337-00-00 |
SCREW, SPRING Price: $4.70 |
| 14 |
1TD-16383-01-00 |
SPRING.,CUSHION Price: $33.99 |
| 15 |
1TD-16384-00-00 |
PLATE, SEAT Price: $18.99 |
| 18 |
1WS-16181-00-00 |
SPACER 1 Price: $50.99 |
| 19 |
93310-232R9-00 |
BEARING Price: $47.99 |
| 20 |
363-16154-00-00 |
PLATE, THRUST 1 Price: $17.99 |
| 21 |
90201-20030-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 23 |
90179-20022-00 |
NUT This part replaces 90179-20007-00. Price: $15.49 |
| 24 |
1WS-16356-00-00 |
ROD, PUSH 1 Price: $58.99 |
| 25 |
1WS-16340-01-00 |
PUSH LEVER ASSY This part replaces 1WS-16340-00-00. Price: $31.99 |
| 26 |
90508-18132-00 |
SPRING, TORSION Price: $8.49 |
| 27 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 28 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 29 |
1WS-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $38.99 |
