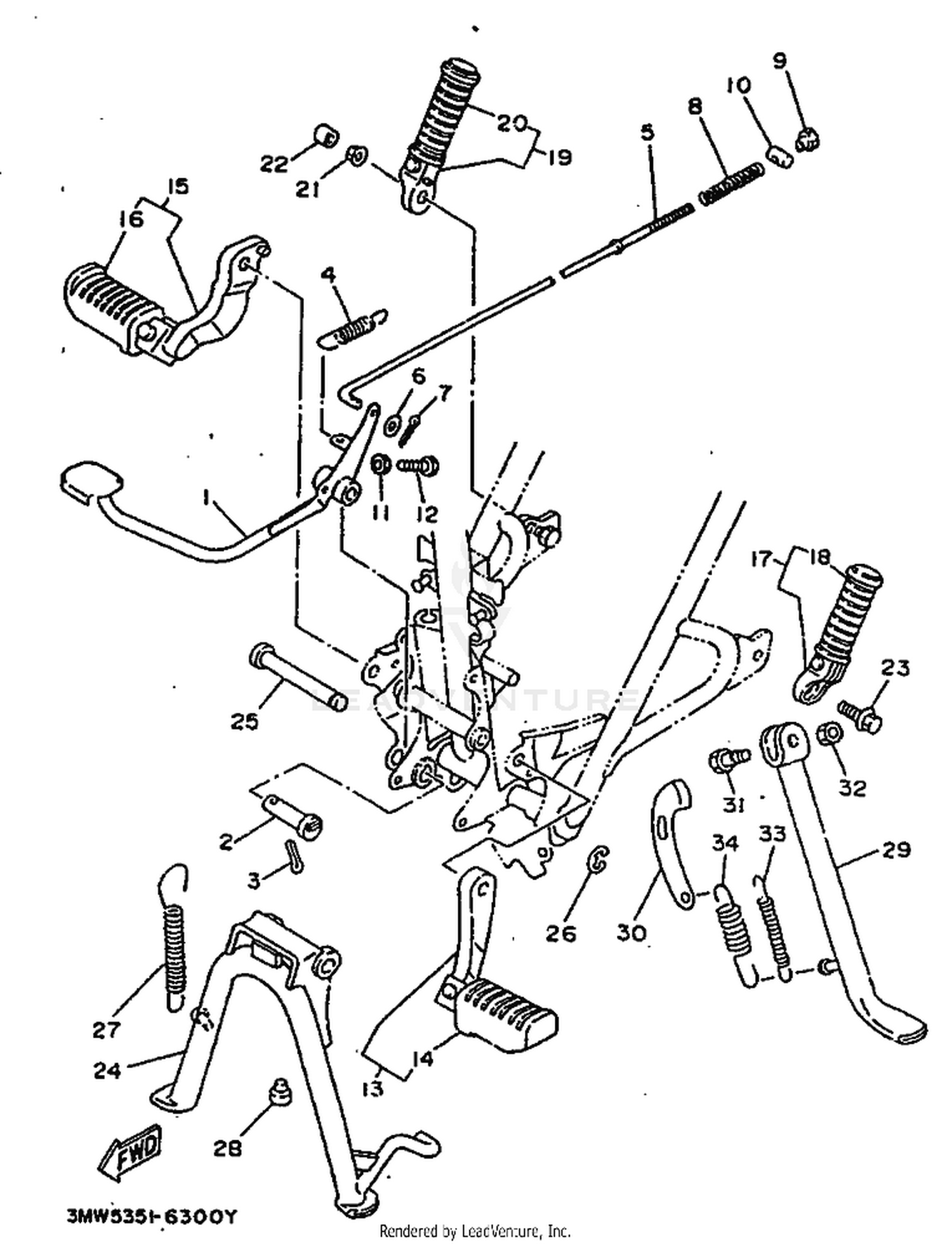

| Ref | Part Number | Description |
|---|
| 2 |
5H0-27212-00 |
SHAFT, BRAKE PEDAL Price: Call Us |
| 3 |
91401-30025 |
PIN, COTTER Price: Call Us |
| 4 |
90506-20115 |
SPRING, TENSION Price: Call Us |
| 5 |
3Y6-27231-00 |
ROD, BRAKE Price: Call Us |
| 6 |
92907-06200 |
WASHER Price: Call Us |
| 7 |
91401-20012 |
PIN, COTTER Price: Call Us |
| 8 |
90501-10245 |
SPRING, COMPRESSION Price: Call Us |
| 9 |
90179-06411 |
NUT Price: Call Us |
| 10 |
90249-12008 |
PIN Price: Call Us |
| 12 |
90101-06410 |
BOLT Price: Call Us |
| 17 |
5H0-27430-00 |
REAR FOOTREST ASSY 1 Price: Call Us |
| 19 |
5H0-27440-00 |
REAR FOOTREST ASSY 2 Price: Call Us |
| 21 |
95707-10500 |
NUT, FLANGE Price: Call Us |
| 22 |
262-21399-00 |
CAP, TOOL BOX Price: Call Us |
| 23 |
95827-10016 |
BOLT, FLANGE Price: Call Us |
| 25 |
5H0-27112-00 |
SHAFT, MAIN STAND Price: Call Us |
| 26 |
93430-12008 |
CIRCLIP Price: Call Us |
| 27 |
90506-40268 |
SPRING, TENSION Price: Call Us |
| 29 |
5H0-27311-01 |
STAND, SIDE Price: Call Us |
| 30 |
5H0-27315-00 |
LINK, SIDE STAND Price: Call Us |
| 31 |
90109-08032 |
BOLT Price: Call Us |
| 32 |
90185-08055 |
NUT, SELF-LOCKING Price: Call Us |
| 33 |
90506-18224 |
SPRING, TENSION Price: Call Us |
