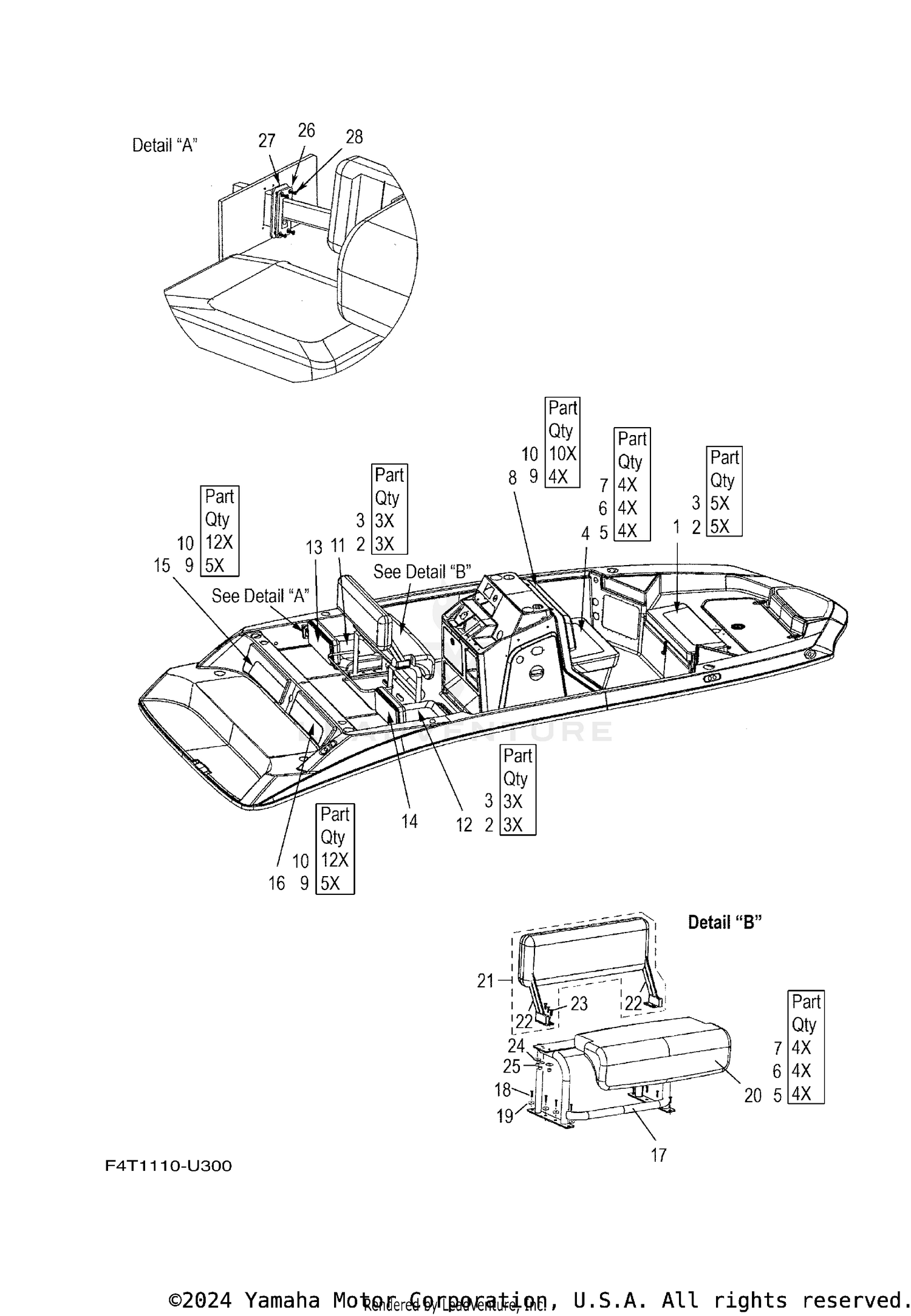

SEAT CUSHION
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 17 | F3M-U3712-00-00 | BASE, DRIVER SEAT Price: $1,138.99 |
| 18 | 90152-14S20-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 19 | 90209-14SA6-00 | WASHER Price: $5.99 |
| 22 | F3M-U371F-00-00 | BRKT., SEAT Price: $344.99 |
| 23 | 90151-14S16-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 24 | 90209-14SA2-00 | WASHER Price: $1.99 |
| 25 | 90185-14S00-00 | NUT, SELF-LOCKING Price: $4.99 |
| 26 | F4T-UF8F7-00-00 | BASE, BACKREST 1 Price: $114.99 |
| 27 | F4T-U471E-00-00 | SPACER 1 Price: $62.99 |
