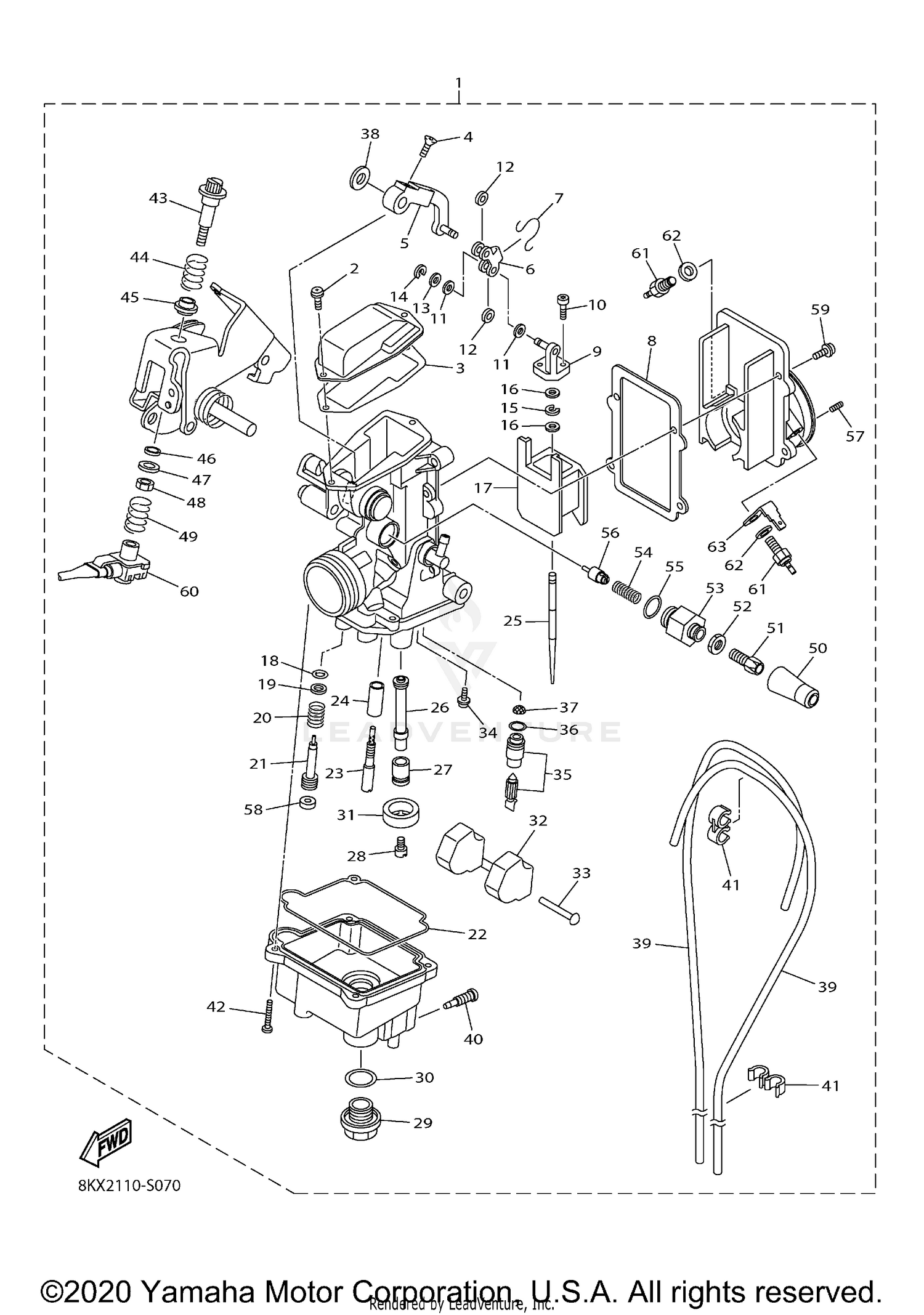

| Ref | Part Number | Description |
|---|
| 1 |
8KX-14101-10-00 |
CARBURETOR ASSY 1 Price: $811.99 |
| 2 |
98507-04010-00 |
SCREW, PAN HEAD This part replaces 97606-04110-00. Price: $3.55 |
| 3 |
89A-14198-00-00 |
GASKET Price: $10.99 |
| 4 |
6K8-14523-10-00 |
SCREW, FLAT HEAD (98702-04014 This part replaces 98702-04014-00. Price: $15.99 |
| 5 |
89A-14292-00-00 |
LEVER A Price: $104.99 |
| 6 |
89A-14243-00-00 |
PLATE Price: $74.99 |
| 7 |
89A-14137-00-00 |
CLIP Price: $3.80 |
| 8 |
89A-14199-00-00 |
GASKET Price: $34.99 |
| 9 |
89A-14188-00-00 |
CONNECTOR Price: $37.99 |
| 10 |
91317-03012-00 |
BOLT (91316-03012-00 ) This part replaces 91316-03012-00. Price: $0.95 |
| 11 |
3GF-14126-00-00 |
GASKET Price: $0.75 |
| 12 |
3MA-14918-00-00 |
RING Price: $4.40 |
| 13 |
620-14198-00-00 |
GASKET Price: $4.10 |
| 14 |
3MA-14937-00-00 |
CLIP Price: $0.65 |
| 15 |
3FA-14137-00-00 |
CLIP Price: $8.49 |
| 16 |
8AB-14227-00-00 |
WASHER (T=0.4MM) Price: $5.49 |
| 17 |
8KX-14112-35-00 |
VALVE, THROTTLE 1 Price: $141.99 |
| 18 |
3H1-14147-00-00 |
O-RING Price: $9.49 |
| 19 |
3H1-14962-00-00 |
WASHER Price: $8.49 |
| 20 |
5K7-14134-00-00 |
SPRING, AIR ADJUSTING Price: $15.49 |
| 21 |
8KX-14123-00-00 |
SCREW, AIR ADJUSTING Price: $15.99 |
| 22 |
89A-14147-00-00 |
O-RING Price: $17.99 |
| 23 |
4KM-14142-65-00 |
JET, PILOT (# 65) Price: $5.99 |
| 24 |
89A-14996-00-00 |
PIPE Price: $16.49 |
| 25 |
284-14116-A6-00 |
NEEDLE Price: $25.99 |
| 26 |
8KX-14141-42-00 |
NOZZLE, MAIN Price: $42.99 |
| 27 |
89A-14194-00-00 |
RING Price: $19.99 |
| 28 |
3G2-1423E-61-00 |
JET, MAIN (#153.8) Price: $12.99 |
| 29 |
500-14115-00-00 |
PLUG, SCREW Price: $32.99 |
| 30 |
558-14147-00-00 |
O-RING Price: $10.99 |
| 31 |
1LX-14153-00-00 |
WASHER, MAIN JET Price: $25.99 |
| 32 |
1UY-14185-00-00 |
FLOAT Price: $105.99 |
| 33 |
537-14186-00-00 |
PIN, FLOAT Price: $8.49 |
| 34 |
2LN-14565-00-00 |
SCREW Price: $8.49 |
| 35 |
1AE-14190-12-00 |
NEEDLE VALVE ASSY Price: $53.99 |
| 36 |
8F2-14147-00-00 |
O-RING Price: $3.30 |
| 37 |
1J7-14994-00-00 |
NET, FILTER Price: $30.99 |
| 38 |
3H1-14227-00-00 |
WASHER Price: $4.00 |
| 39 |
8KX-14197-00-00 |
PIPE Price: $10.49 |
| 40 |
5LW-14191-00-00 |
PLUG, DRAIN Price: $12.99 |
| 41 |
87M-14137-00-00 |
CLIP Price: $15.49 |
| 42 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98502-04014-00. Price: $3.30 |
| 43 |
8CC-14122-00-00 |
SCREW, THROTTLE Price: $41.99 |
| 44 |
8X0-14500-00-00 |
SPRING This part replaces 2J2-14133-00-00. Price: $22.99 |
| 45 |
8X0-14184-00-00 |
RING This part replaces 89A-14265-00-00. Price: $26.99 |
| 46 |
22F-14117-00-00 |
WASHER, PLUG SCREW Price: $7.49 |
| 47 |
1UF-14952-00-00 |
WASHER Price: $4.05 |
| 48 |
89A-14594-00-00 |
NUT Price: $8.49 |
| 49 |
8X0-14133-00-00 |
SPRING, THROTTLE STOP This part replaces 89A-24529-00-00. Price: $19.49 |
| 50 |
8A7-14169-00-00 |
CAP Price: $19.99 |
| 51 |
12G-14106-00-00 |
CBLE ADJUST SCREW SET This part replaces 127-14124-20-00. Price: $21.99 |
| 52 |
802-14161-00-00 |
NUT, CABLE ADJUSTING Price: $8.49 |
| 53 |
8KX-14174-00-00 |
CAP, PLUNGER Price: $15.49 |
| 54 |
127-14135-00-00 |
SPRING, PLUNGER Price: $8.49 |
| 55 |
1AE-14147-00-00 |
O-RING Price: $30.99 |
| 56 |
8G8-14171-00-00 |
PLUNGER, STARTER Price: $37.99 |
| 57 |
239-14172-10-00 |
PILOT JET, AIR (1.0) Price: $11.99 |
| 58 |
3F9-14118-00-00 |
CAP Price: $9.49 |
| 59 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 97602-04112-00. Price: $4.20 |
| 60 |
87S-8259A-01-00 |
SWITCH, CARBURETOR Price: $88.99 |
| 61 |
5FU-83790-20-00 |
HEATER ASSY (30W) Price: $53.99 |
| 62 |
5CY-14951-00-00 |
WASHER Price: $7.49 |
