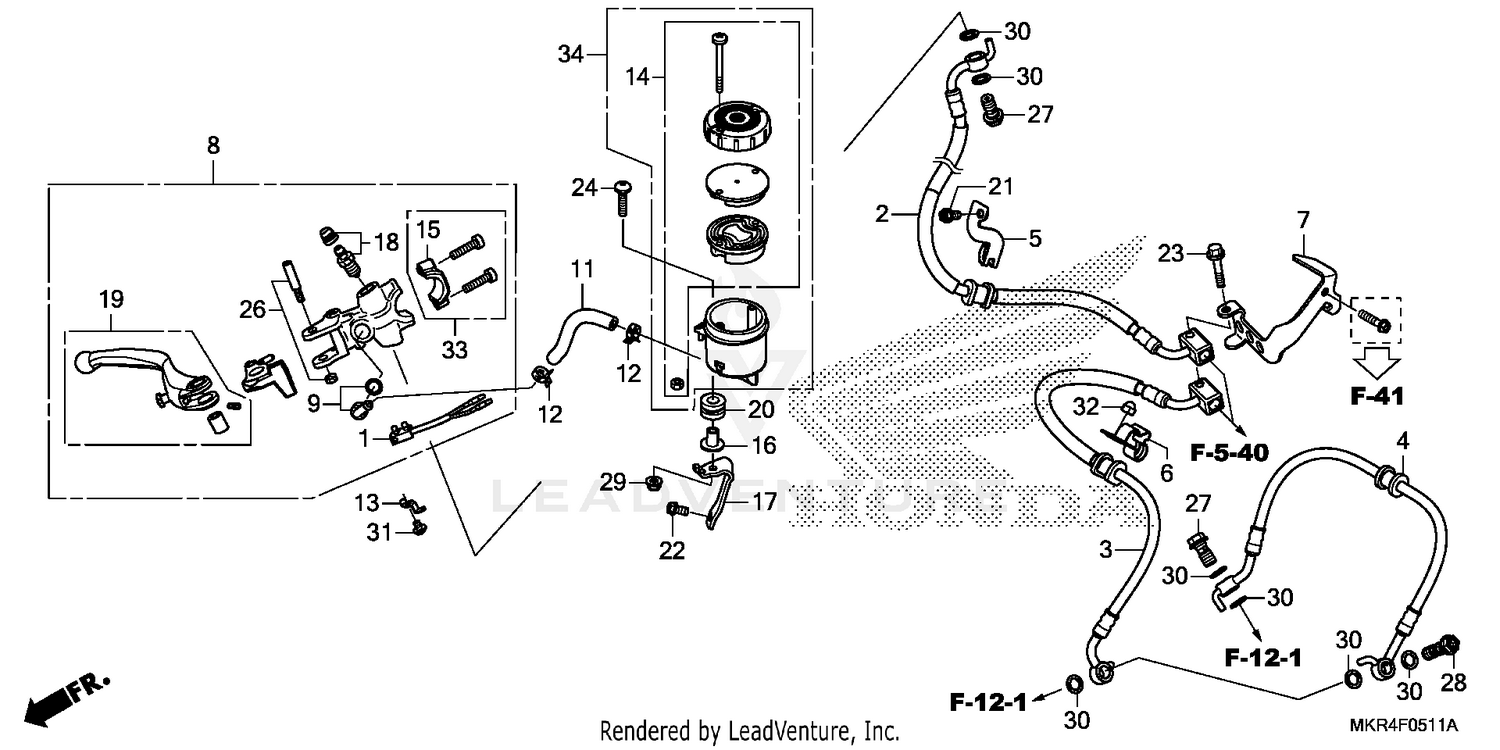

| Ref | Part Number | Description |
|---|
| 1 |
35340-MKR-D32 |
SWITCH ASSY., FR. STOP Price: $30.65 |
| 2 |
45125-MKR-D31 |
HOSE A, FR. BRAKE Price: $68.15 |
| 3 |
45126-MKR-D31 |
HOSE B, FR. BRAKE Price: $66.13 |
| 4 |
45127-MKR-D11 |
HOSE C, FR. BRAKE Price: $64.16 |
| 5 |
45157-MKR-D10 |
CLAMP A, FR. BRAKE HOSE Price: $8.16 |
| 6 |
45158-MKR-D10 |
CLAMP B, FR. BRAKE HOSE Price: $7.85 |
| 7 |
45162-MKR-D10 |
STAY A, FR. BRAKE HOSE Price: $21.78 |
| 8 |
45500-MKR-D32 |
MASTER CYLINDER ASSY., FR. (BREMBO) Price: $650.01 |
| 9 |
45505-MJT-E01 |
CONNECTOR ASSY. Price: $51.20 |
| 11 |
45512-MKR-D80 |
HOSE, FR. Price: $12.84 |
| 12 |
45513-MKR-D30 |
CLAMP, MASTER CYLINDER HOSE Price: $4.18 |
| 13 |
45514-MKR-D30 |
HOLDER, FR. STOP SWITCH Price: $2.64 |
| 14 |
45515-MKR-D31 |
CAP ASSY., OIL CUP Price: $68.85 |
| 15 |
45518-MJT-E01 |
HOLDER, FR. MASTER CYLINDER Price: $35.05 |
| 16 |
45519-MKR-D30 |
COLLAR (6.3X13) Price: $4.84 |
| 17 |
45550-MKR-D30 |
STAY, FR. MASTER CYLINDER Price: $10.87 |
| 18 |
45552-MJT-E01 |
SCREW ASSY., BLEEDER Price: $8.42 |
| 19 |
53170-MKR-D31 |
LEVER SET, FR. BRAKE Price: $152.67 |
| 20 |
80219-KCZ-000 |
RUBBER, TAILLIGHT MOUNTING Price: $5.53 |
| 21 |
90021-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.55 |
| 22 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 23 |
90021-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.55 |
| 24 |
90105-MBZ-C50 |
SCREW, PAN (6X28) Price: $3.47 |
| 26 |
90134-MJT-E01 |
BOLT SET, HANDLE LEVER Price: $11.64 |
| 27 |
90145-MKR-D10 |
BOLT, OIL (10X20) Price: $7.44 |
| 28 |
90146-MKR-D10 |
BOLT, OIL (10X31.4) Price: $9.18 |
| 29 |
90301-MG3-000 |
NUT, U (6MM) Price: $8.69 |
| 30 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 31 |
93891-04006-07 |
SCREW-WASHER (4X6) Price: $1.20 |
| 32 |
94021-06070-0S |
NUT, CAP (6MM) Price: $1.70 |
| 33 |
45540-MKR-D31 |
CLAMP SET, FR. BRAKE Price: $38.16 |
