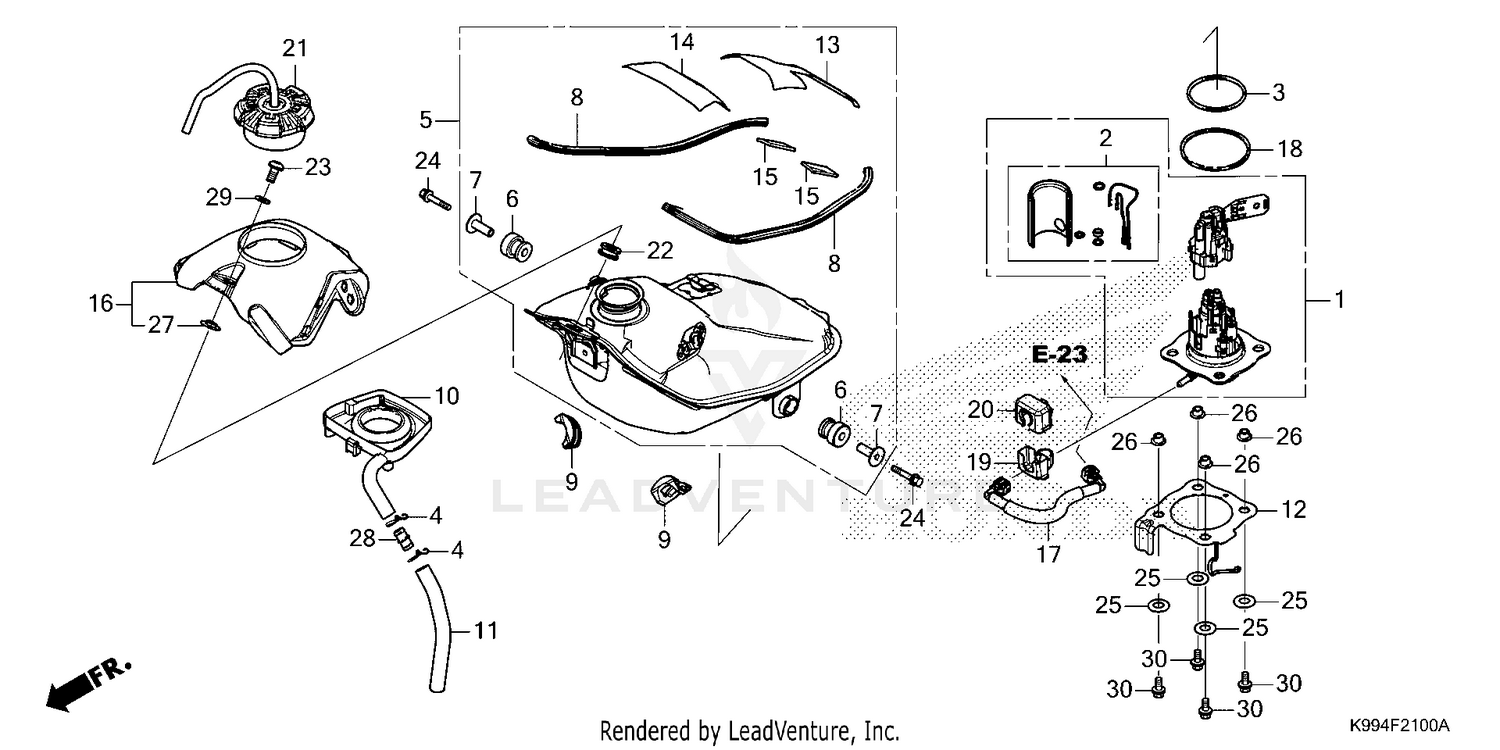

| Ref | Part Number | Description |
|---|
| 1 |
16700-K99-A01 |
PUMP UNIT ASSY., FUEL (MSDS) Price: $315.47 |
| 2 |
16707-K45-N01 |
FILTER SET Price: $28.49 |
| 3 |
16711-K99-A01 |
O-RING (3.7X62.9) Price: $41.25 |
| 4 |
17316-KRH-D20 |
CLIP, BREATHER TUBE Price: $1.40 |
| 5 |
17500-K99-A01 |
TANK ASSY., FUEL Price: $362.62 |
| 6 |
17508-GBF-830 |
RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING Price: $7.42 |
| 7 |
17509-KPS-900 |
COLLAR, TANK SETTING Price: $12.09 |
| 8 |
17515-K99-A00 |
TRIM, FUEL TANK Price: $10.15 |
| 9 |
17522-K99-A00 |
RUBBER, TANK MOUNTING Price: $5.52 |
| 10 |
17523-K99-A00 |
TRAY, FUEL Price: $12.87 |
| 11 |
17525-K99-A00 |
TUBE, FUEL DRAIN Price: $9.60 |
| 12 |
17527-K99-A00 |
PLATE, SETTING Price: $19.58 |
| 13 |
17534-K99-A00 |
FILM A, PROTECTOR Price: $7.72 |
| 14 |
17535-K99-A00 |
FILM B, PROTECTOR Price: $12.29 |
| 15 |
17536-K99-A01 |
RUBBER A Price: $5.06 |
| 16 |
17560-K99-A00 |
COVER, CENTER TANK Price: $12.51 |
| 17 |
17571-K99-A01 |
HOSE, FUEL FEED Price: $175.89 |
| 18 |
17574-K99-A01 |
DUST SEAL Price: $6.84 |
| 19 |
17575-K99-A00 |
COVER, FUEL CONNECTOR Price: $2.78 |
| 20 |
17576-KRN-A90 |
RUBBER, FUEL CONNECTOR Price: $7.40 |
| 21 |
17620-K99-B01 |
CAP, FUEL FILLER Price: $242.60 |
| 22 |
50317-MCG-000 |
RUBBER, GRIP MOUNTING Price: $2.25 |
| 23 |
90128-KBP-900 |
BOLT, SOCKET (8X16) Price: $2.44 |
| 24 |
90137-KA3-830 |
BOLT, FLANGE (6X40) Price: $3.31 |
| 25 |
90502-MEN-A30 |
WASHER, CONICAL SPRING FUEL PUMP Price: $3.04 |
| 26 |
90503-K99-A00 |
COLLAR, FUEL PUMP Price: $3.87 |
| 27 |
90504-K99-A00 |
COLLAR, FR. TANK Price: $4.58 |
| 28 |
91463-393-780 |
JOINT, TUBE Price: $2.05 |
| 29 |
94101-08000 |
WASHER, PLAIN (8MM) Price: $0.87 |
