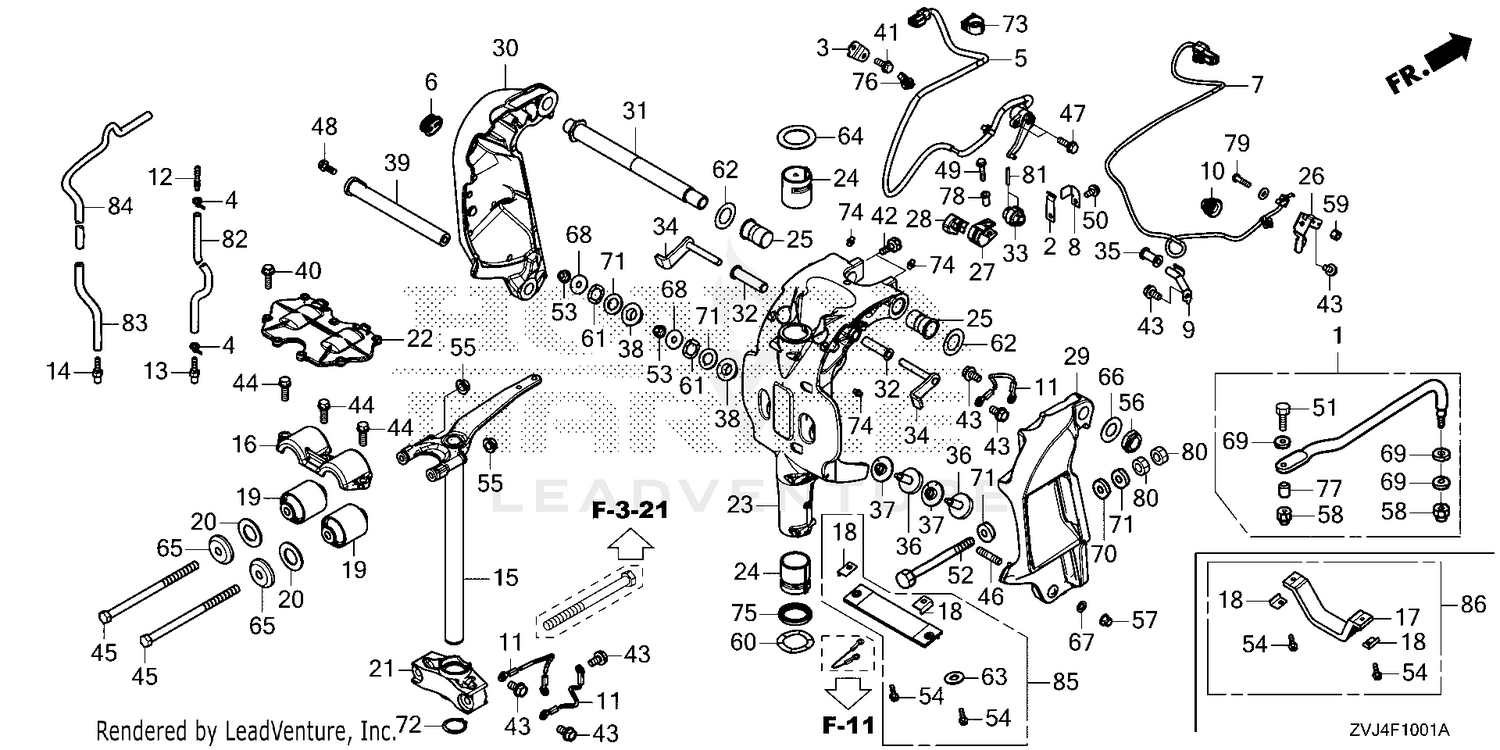

| Ref | Part Number | Description |
|---|
| 2 |
24211-ZVP-000 |
SPRING, CLICK Price: $5.22 |
| 3 |
32116-ZVP-000 |
BRACKET, HARN CLIP D Price: $5.18 |
| 4 |
32161-KM3-003 |
BAND, WIRE Price: $3.56 |
| 5 |
35660-ZVL-A11 |
SENSOR ASSY. Price: $278.34 |
| 6 |
35664-ZVP-000 |
GROMMET, SENSOR HARN Price: $12.30 |
| 7 |
35745-ZVL-911 |
SWITCH, TILT LIMIT Price: $61.02 |
| 8 |
35746-ZVL-910 |
PLATE Price: $3.96 |
| 9 |
35747-ZVL-910 |
BRKT, WIRE GROMMET Price: $9.56 |
| 10 |
40102-ZVD-600 |
GROMMET A, CASE (LOWER) (NOT AVAILABLE) Price: $2.48 |
| 11 |
40219-ZY3-023 |
WIRE, LEAD (1.5X116MM) Price: $12.40 |
| 12 |
41171-ZV5-000 |
END, NIPPLE Price: $8.28 |
| 13 |
41172-ZV5-000 |
NIPPLE, SENSOR Price: $10.48 |
| 15 |
50100-ZVL-A10ZA |
FRAME *NH565* Price: $883.98 |
| 15 |
50100-ZVL-A10ZB |
FRAME *NHB14M* Price: $883.98 |
| 16 |
50109-ZVL-000 |
HOUSING, MOUNTING (UPPER) Price: $52.34 |
| 17 |
50116-ZVP-000 |
METAL, ANODE Price: $70.16 |
| 18 |
50117-ZVP-000 |
PLATE, ANODE METAL Price: $4.78 |
| 19 |
50151-ZY3-000 |
MOUNT, RUBBER (UPPER) Price: $89.80 |
| 20 |
50153-ZY3-000 |
RUBBER, MOUNT STOPPER (UPPER) Price: $8.30 |
| 21 |
50161-ZY3-610 |
HOUSING, CENTER MOUNTING (LOWER) (XL) Price: $113.57 |
| 22 |
50166-ZVL-010 |
COVER, MOUNT (UPPER) Price: $73.10 |
| 23 |
50201-ZVL-A10ZA |
CASE, SWIVEL *NH565* Price: $722.36 |
| 23 |
50201-ZVL-A10ZB |
CASE *NHB14M* Price: $722.36 |
| 24 |
50211-ZY3-000 |
LINER, SWIVEL CASE Price: $9.93 |
| 25 |
50214-ZY3-000 |
BUSH, SWIVEL CASE Price: $14.40 |
| 26 |
50222-ZVL-910 |
BRACKET Price: $11.58 |
| 27 |
50223-ZVT-000 |
CAM A Price: $34.22 |
| 28 |
50224-ZVL-910 |
CAM B Price: $5.32 |
| 29 |
50301-ZVL-A10ZA |
BRACKET, R. *NH565* Price: $396.28 |
| 29 |
50301-ZVL-A10ZB |
BRACKET, R. *NHB14M* Price: $396.28 |
| 30 |
50311-ZVL-A10ZA |
BRACKET, L. *NH565* Price: $396.28 |
| 30 |
50311-ZVL-A10ZB |
BRACKET, L. *NHB14M* Price: $396.28 |
| 31 |
50381-ZVL-020 |
SHAFT, TILTING Price: $105.36 |
| 32 |
50522-ZY3-000 |
BUSH, TILT ARM Price: $10.98 |
| 33 |
50527-ZVL-A10 |
BRACKET, TILTING Price: $8.16 |
| 34 |
50529-ZVP-000 |
STOPPER, TILT Price: $69.46 |
| 35 |
56118-ZVT-000 |
GROMMET, CODE Price: $2.48 |
| 36 |
56516-ZY3-A00 |
RECEIVER, THRUST Price: $20.32 |
| 37 |
56518-ZY3-A00 |
BUSH A, THRUST RECEIVE Price: $16.40 |
| 38 |
56519-ZY3-A00 |
BUSH B, THRUST RECEIVE Price: $8.08 |
| 39 |
56539-ZVL-000 |
SHAFT, CYLINDER (LOWER) Price: $109.88 |
| 40 |
90005-ZW9-030 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $2.54 |
| 41 |
90101-ZX2-C00 |
BOLT-WASHER (6X16) Price: $3.90 |
| 43 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 44 |
90103-ZY6-000 |
BOLT-WASHER (10X32) Price: $4.26 |
| 45 |
90104-ZY3-010 |
BOLT, HEX. (12X200) Price: $57.74 |
| 46 |
90105-ZVL-000 |
BOLT, STUD (10X28) Price: $6.80 |
| 47 |
90105-ZW9-000 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $3.94 |
| 48 |
90106-ZY3-A00 |
BOLT, FLANGE (8X22) Price: $1.42 |
| 49 |
90107-ZVT-000 |
BOLT, FLANGE (5X25) Price: $6.42 |
| 50 |
90110-881-000 |
BOLT, HEX. (6X14) Price: $2.90 |
| 52 |
90129-ZX2-000 |
BOLT, HEX. (12X130) Price: $22.10 |
| 53 |
90205-ZY1-000 |
NUT, SELF-LOCK (6MM) Price: $6.52 |
| 54 |
90214-HW1-671 |
BOLT, FLANGE (6X25) (SUS-D) Price: $4.22 |
| 55 |
90302-ZW5-003 |
NUT, FLANGE (12MM) Price: $8.42 |
| 56 |
90304-ZV5-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF) Price: $24.24 |
| 57 |
90306-ZW4-003 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) Price: $5.94 |
| 59 |
90325-MJT-E01 |
NUT, U (3MM) Price: $8.60 |
| 60 |
90501-ZV5-000 |
WASHER, WAVE (40MM) Price: $10.00 |
| 61 |
90501-ZY3-A00 |
WASHER, WAVE (12MM) Price: $5.18 |
| 62 |
90502-ZV5-000 |
WASHER, WAVE (26MM) Price: $11.94 |
| 64 |
90504-ZV5-000 |
WASHER, THRUST (34MM) Price: $10.00 |
| 65 |
90504-ZX2-C00 |
WASHER, MOUNTING STOPPER (UPPER) Price: $25.70 |
| 66 |
90509-ZY3-000 |
WASHER (7/8") Price: $1.62 |
| 67 |
90511-921-000 |
WASHER, PLAIN (10MM) Price: $1.18 |
| 68 |
90512-ZV4-000 |
WASHER, PLAIN (6MM) Price: $4.16 |
| 70 |
90552-ZV5-000 |
WASHER, PLAIN (12MM) Price: $6.40 |
| 71 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 72 |
90651-ZV5-000 |
CIRCLIP (OUTER) (39MM) Price: $10.76 |
| 73 |
90683-ZX2-003 |
CLIP, WIRE HARNESS Price: $7.94 |
| 74 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 75 |
91256-ZV5-003 |
SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI) Price: $10.68 |
| 76 |
91540-STK-003 |
CLIP, HARNESS BAND (155.3MM) (BLACK) Price: $5.68 |
| 78 |
91561-ZVT-000 |
COLLAR Price: $5.92 |
| 79 |
93500-03014-4J |
SCREW, PAN (3X14) Price: $0.74 |
| 80 |
94001-12490-0S |
NUT, HEX. (12MM) Price: $2.60 |
| 81 |
94305-30203 |
PIN, SPRING (3X20) Price: $1.62 |
| 82 |
95005-50003-30M |
BULK HOSE, VACUUM (5X3000) (5X250) Price: $30.32 |
