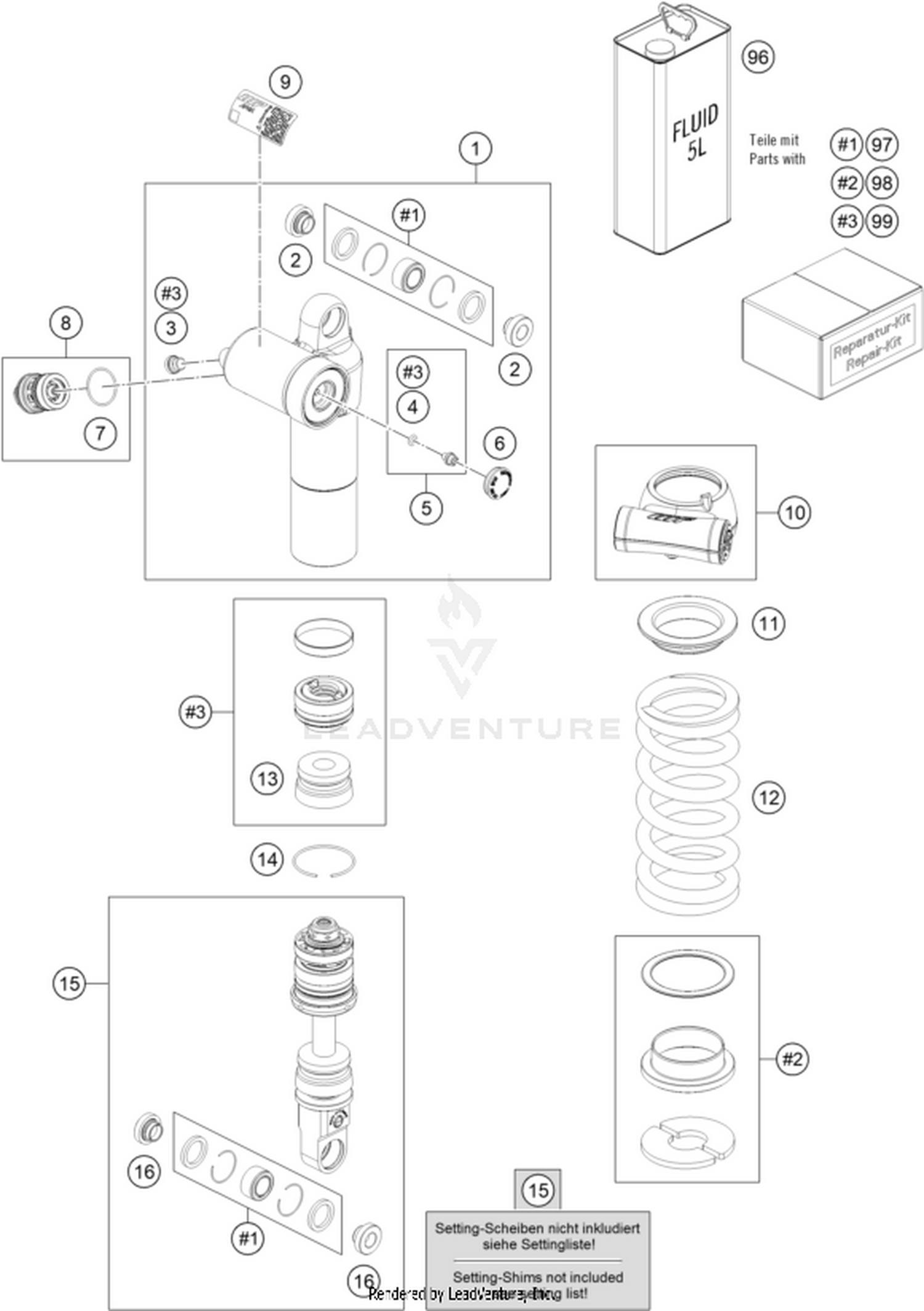

04 SHOCK ABSORBER DISASSEMBLED

04 SHOCK ABSORBER DISASSEMBLED

Parts (19)

RefPart NumberDescription
1 S454600006S02C1 NEEDS DESCRIPTION Price: Call Us
2 46180064 Bearing bush 12x15/18/24,5x13, Price: Call Us
3 50180095 HS cylinder-head screw R1/8 l8 Price: Call Us
4 S208600003000FB O-ring 5,28x1,78 HNBR70 red Price: Call Us
5 36120151ST PLUG SCREW M5X6 CPL. Price: Call Us
6 46811208 Rubber cap do not open 22x5,5 Price: Call Us
7 50180217 O-ring 27x1,5 Viton70 green IS Price: Call Us
8 50180213S35 Compression adjuster cpl. blac Price: Call Us
9 52000358 Sticker APEX 60x29 Price: Call Us
10 15000O21 PA cpl. KTM Price: Call Us
11 14460661 Spring retainer 52,5x78x3 Price: Call Us
12 S80980002500020 Mainspring (59) 75-180.0 shock Price: Call Us
13 46180365 Rubber pad 17,2x45,2x30 black Price: Call Us
14 46810010 Round-wire snap ring 49x1,5 Price: Call Us
15 S421800012S02C1 NEEDS DESCRIPTION Price: Call Us
16 S26120000100000 Bearing bush 12x15/18/24.5x12. Price: Call Us
96 50180751S1 SHOCK ABSORBER FLUID 5 LT Price: Call Us
97 R12012T Ball joint bearing kit top 12m Price: Call Us
98 RP10023T Repair kit spring retainer Price: Call Us
