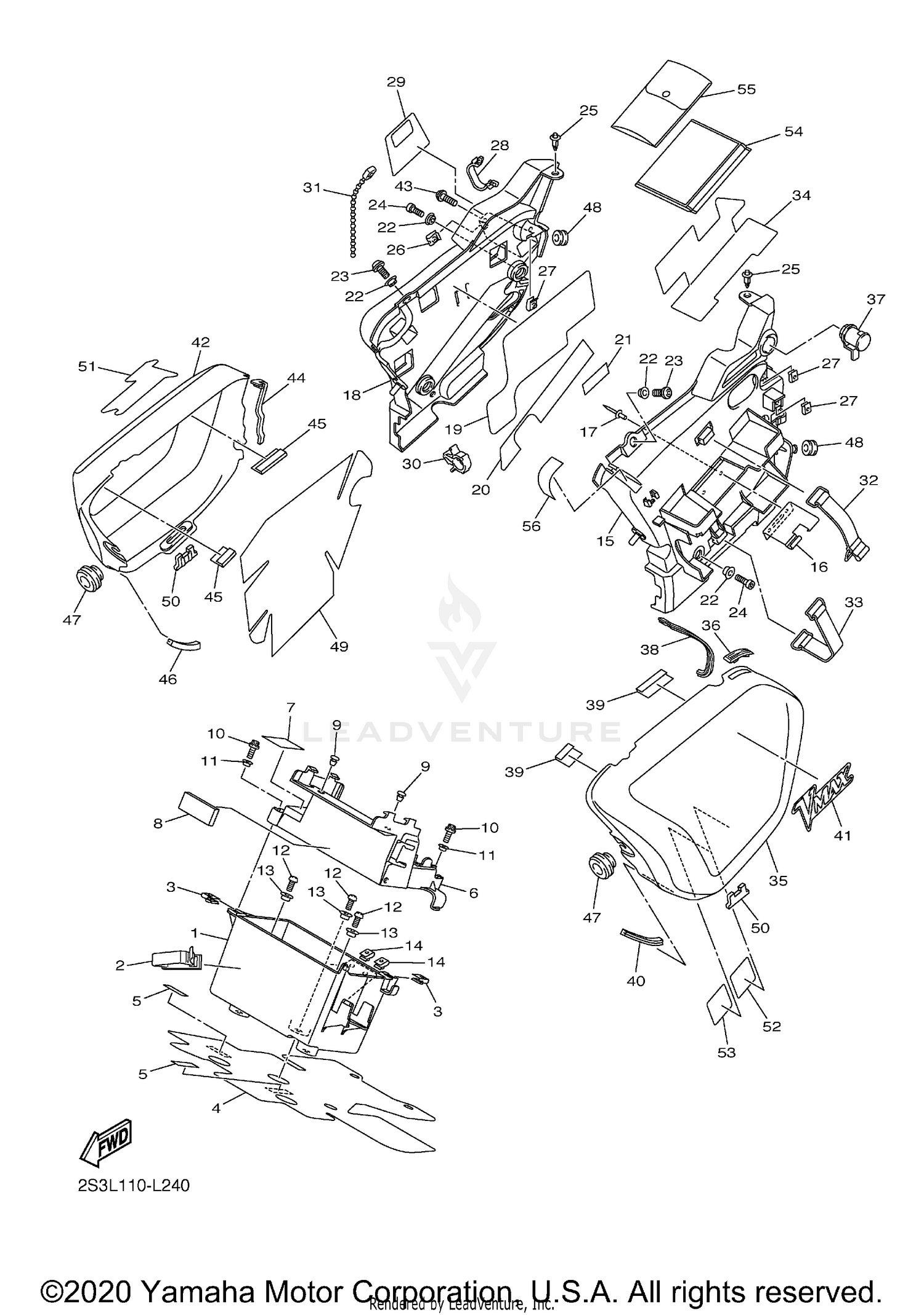

| Ref | Part Number | Description |
|---|
| 1 |
2S3-2177G-00-00 |
BOX, BATTERY Price: $52.99 |
| 2 |
90464-13012-00 |
CLAMP Price: $5.49 |
| 3 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 4 |
2S3-2117G-02-00 |
PROTECTOR Price: $45.99 |
| 5 |
2S3-21732-00-00 |
SEAL 1 Price: $2.60 |
| 6 |
2S3-8212B-00-00 |
BOX, BATTERY 1 Price: $31.99 |
| 7 |
5JW-2164K-00-00 |
PATCH 5 Price: $2.30 |
| 8 |
2S3-21638-00-00 |
DAMPER 1 Price: $13.49 |
| 9 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 10 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 11 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 12 |
92012-06012-00 |
BOLT, BUTTON HEAD This part replaces 90111-06065-00. Price: $4.70 |
| 13 |
90387-06130-00 |
COLLAR Price: $10.49 |
| 14 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 15 |
2S3-2172A-00-00 |
PANEL 1 Price: $33.99 |
| 16 |
2S3-2175R-00-00 |
HOOK, BAND Price: $16.99 |
| 17 |
90267-40076-00 |
RIVET, BLIND Price: $9.49 |
| 18 |
2S3-2172F-00-00 |
PANEL 2 Price: $31.99 |
| 19 |
2S3-2414H-00-00 |
DAMPER, PLATE 1 Price: $6.49 |
| 20 |
2S3-24737-00-00 |
DAMPER, SEAT Price: $2.75 |
| 21 |
7TD-14747-10-00 |
DAMPER, MUFFLER Price: $0.85 |
| 22 |
90387-06040-00 |
COLLAR Price: $12.49 |
| 23 |
90111-06119-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 24 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06189-00. Price: $2.65 |
| 25 |
90269-06008-00 |
RIVET Price: $9.49 |
| 26 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 27 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 28 |
90464-24230-00 |
CLAMP Price: $8.49 |
| 29 |
2S3-21652-00-00 |
PROTECTOR Price: $3.85 |
| 30 |
90464-15157-00 |
CLAMP Price: $9.49 |
| 31 |
80L-26397-00-00 |
BAND Price: $8.49 |
| 32 |
3TJ-82131-00-00 |
BAND, BATTERY Price: $24.99 |
| 34 |
2S3-21746-00-00 |
DAMPER Price: $4.85 |
| 35 |
2S3-21731-21-00 |
COVER, SIDE 3 This part replaces 2S3-21731-20-00. Price: $275.99 |
| 36 |
2S3-2171P-00-00 |
CAP, SLIDER Price: $17.49 |
| 37 |
2S3-21708-01-00 |
LOCK ASSY 2 This part replaces 2S3-21708-00-00. Price: $92.99 |
| 38 |
2S3-24785-00-00 |
MOLD, SEAT Price: $44.99 |
| 39 |
2AL-84553-00-00 |
DAMPER Price: $12.99 |
| 40 |
2S3-28348-00-00 |
MOLE 4 Price: $7.49 |
| 41 |
2S3-2173D-01-00 |
EMBLEM 3D Price: $107.99 |
| 42 |
2S3-21741-21-00 |
COVER, SIDE 4 This part replaces 2S3-21741-20-00. Price: $314.99 |
| 43 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 44 |
2S3-2478K-00-00 |
MOLD 2 Price: $28.99 |
| 45 |
2AL-84553-00-00 |
DAMPER Price: $12.99 |
| 46 |
2S3-28348-00-00 |
MOLE 4 Price: $7.49 |
| 47 |
2S3-21717-00-00 |
DAMPER Price: $8.49 |
| 48 |
90480-12320-00 |
GROMMET Price: $9.49 |
| 49 |
2S3-24724-00-00 |
DAMPER, SEAT Price: $11.49 |
| 50 |
2S3-24665-00-00 |
DAMPER Price: $8.49 |
| 51 |
2S3-2174D-01-00 |
EMBLEM 3D Price: $107.99 |
| 54 |
2S3-28100-00-00 |
TOOL KIT Price: $60.99 |
| 55 |
2S3-28110-00-00 |
TOOL KIT, 2 Price: $68.99 |
