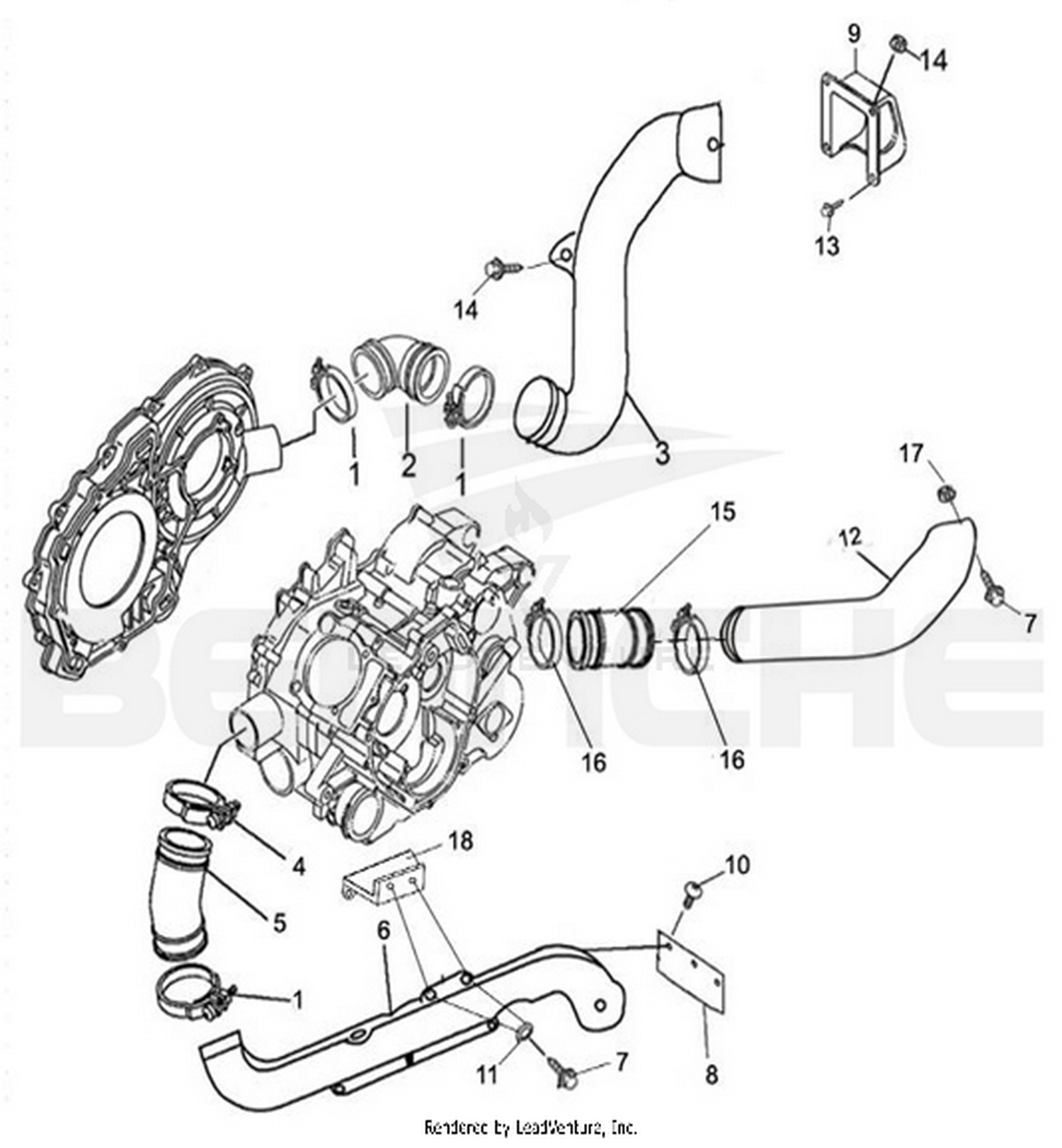

CLUTCH PIPES
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1716A-115-0000 | Connector Hoop Assy IV Price: $2.75 |
| 2 | 17165-107-0000 | Air-Out Pipe Joint Clutch Price: $21.29 |
| 3 | 17162-115-0000 | Air-In Pipe Joint Clutch Price: $17.43 |
| 4 | 1716A-115-0100 | Air-In Pipe Joint Clamp, Clutch Price: $1.68 |
| 5 | 17163-107-0000 | Air-In Pipe Joint, Clutch Price: $24.33 |
| 6 | 17164-113-0000 | Air-Out Pipe, Clutch Price: $23.38 |
| 7 | B05-M6X16-57 | Hexagon Flange Bolt M6X16 Price: $0.56 |
| 8 | 17166-115-0000 | Air-Out Pipe Dustproof Rubber, Clutch Price: $0.91 |
| 9 | 17161-115-0000 | Air-In Pipe Dustproof Cover, Clutch Price: $3.36 |
| 11 | B03-6.4-B7 | Washer 6 Price: $0.56 |
| 12 | 17183-115-0000 | Air-Out Pipe, Fan Price: $6.11 |
| 13 | 90529-103-0000 | No Description Available Price: $0.56 |
| 14 | 90531-102-0000 | Cross Large Plate Head Screw M6x16 Price: $0.56 |
| 15 | 17184-115-0000 | Air-Out Joint, Fan Price: $6.11 |
| 16 | 1718A-115-0000 | Clamp, Fan Air Outlet Pipe Joint Price: $1.68 |
| 17 | B22-M6-27 | Hexagon Flange Nut M6 Price: $0.56 |
