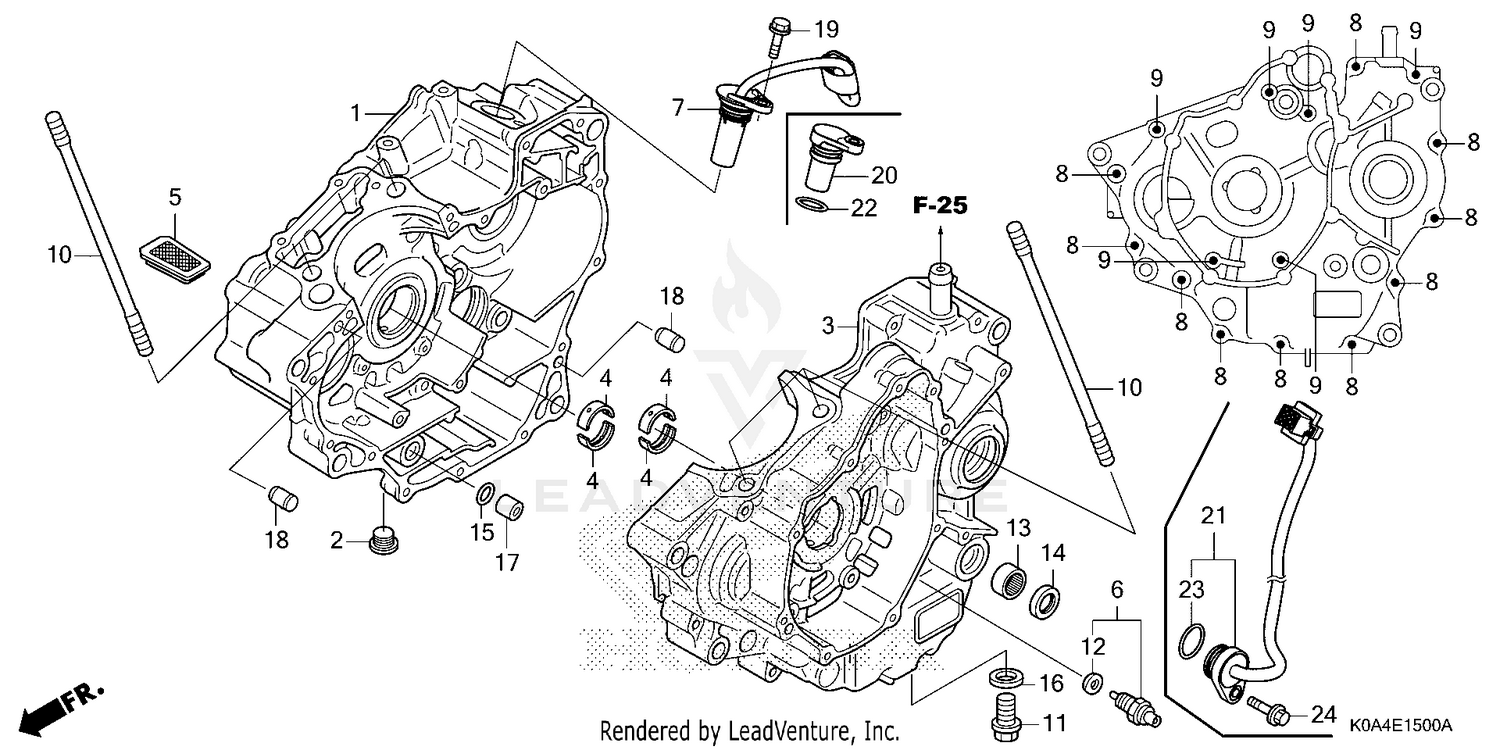

| Ref | Part Number | Description |
|---|
| 1 |
11100-K33-D00 |
CRANKCASE, R. Price: $183.91 |
| 2 |
11107-KYJ-900 |
BOLT, SEALING (16MM) Price: $3.60 |
| 3 |
11200-K33-D00 |
CRANKCASE, L. Price: $205.20 |
| 4 |
13312-K33-D01 |
BEARING A, CRANKSHAFT (BLUE) Price: $14.27 |
| 4 |
13313-K33-D01 |
BEARING B, CRANKSHAFT (BLACK) Price: $14.27 |
| 4 |
13314-K33-D01 |
BEARING C, CRANKSHAFT (BROWN) Price: $14.27 |
| 5 |
15421-KYJ-900 |
SCREEN, OIL FILTER Price: $3.69 |
| 6 |
35600-425-023 |
SWITCH ASSY., NEUTRAL Price: $26.33 |
| 7 |
37700-K0A-E11 |
SENSOR ASSY., SPEED Price: $62.87 |
| 8 |
90014-KYJ-900 |
BOLT, FLANGE (6X40) (NSHF) Price: $0.71 |
| 9 |
90016-KYJ-900 |
BOLT, FLANGE (6X70) (NSHF) Price: $0.98 |
| 10 |
90032-K33-D00 |
BOLT, STUD (10X178) Price: $4.00 |
| 11 |
90061-KYJ-900 |
BOLT, DRAIN PLUG (12MM) Price: $1.09 |
| 12 |
90443-KR0-000 |
WASHER, NEUTRAL SWITCH Price: $1.53 |
| 13 |
91028-MGS-D21 |
BEARING, NEEDLE (14X20X12) Price: $6.16 |
| 14 |
91203-KSP-911 |
OIL SEAL (14X22X5) (ARAI) Price: $2.27 |
| 15 |
91301-KYJ-901 |
O-RING (11.8X1.9) Price: $0.51 |
| 16 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 17 |
94301-12160 |
PIN A, DOWEL (12X16) Price: $2.58 |
| 18 |
94302-08140 |
PIN B, DOWEL (8X14) Price: $2.35 |
