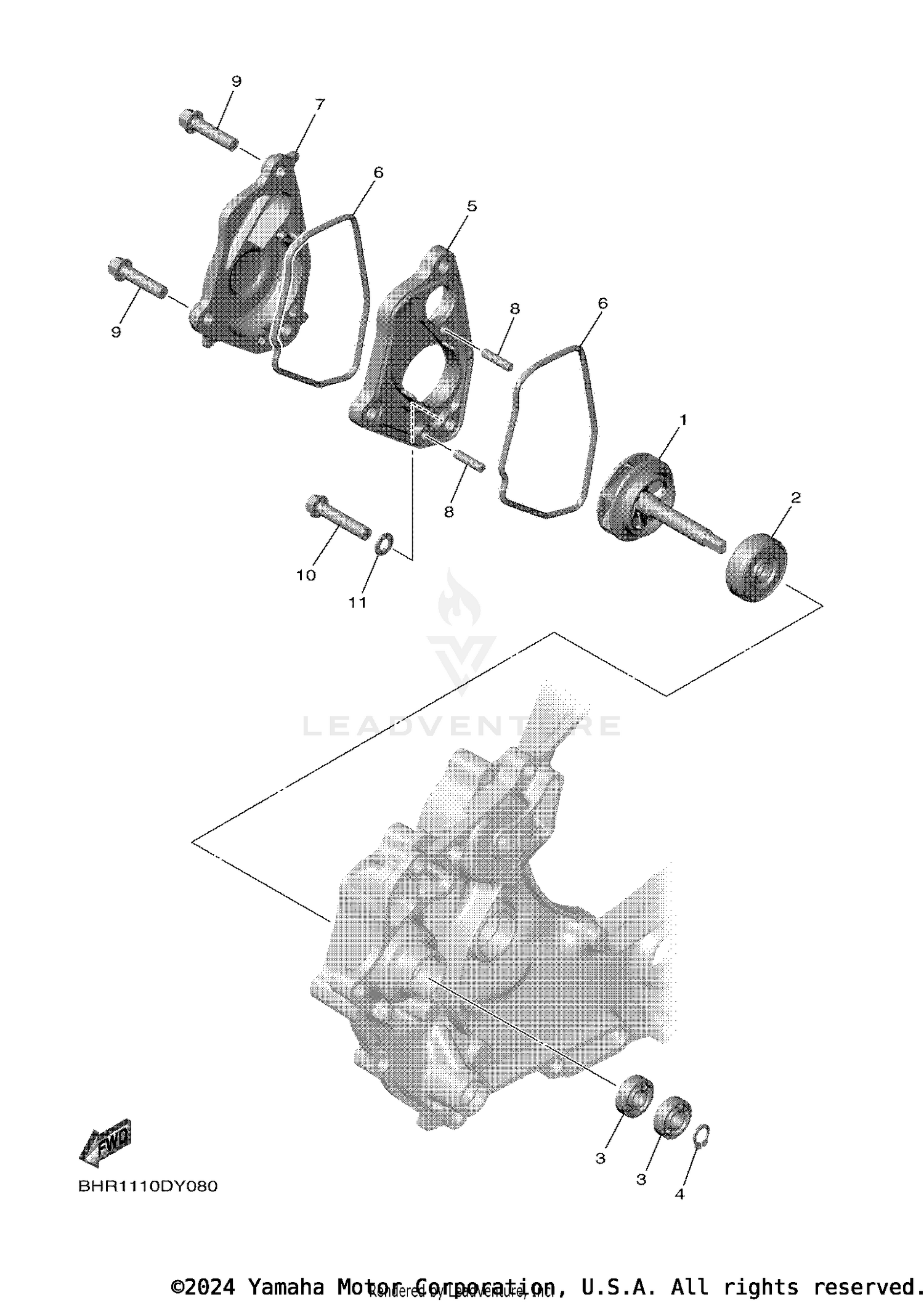

WATER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BHR-12450-00-00 | IMPELLER SHAFT ASSY Price: $57.99 |
| 2 | BHR-12223-00-00 | SEAL Price: $38.99 |
| 3 | 93300-69824-00 | BEARING Price: $24.99 |
| 4 | 99009-08400-00 | CIRCLIP Price: $1.75 |
| 5 | BHR-12421-00-00 | HOUSING, WATER PUMP Price: $72.99 |
| 6 | BHR-12439-00-00 | O-RING Price: $9.49 |
| 7 | BHR-12422-00-00 | COVER, HOUSING Price: $51.99 |
| 8 | 93604-17198-00 | PIN, DOWEL Price: $1.85 |
| 9 | 95E32-06025-00 | BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 10 | 95022-06030-00 | BOLT, FLANGE Price: $1.80 |
