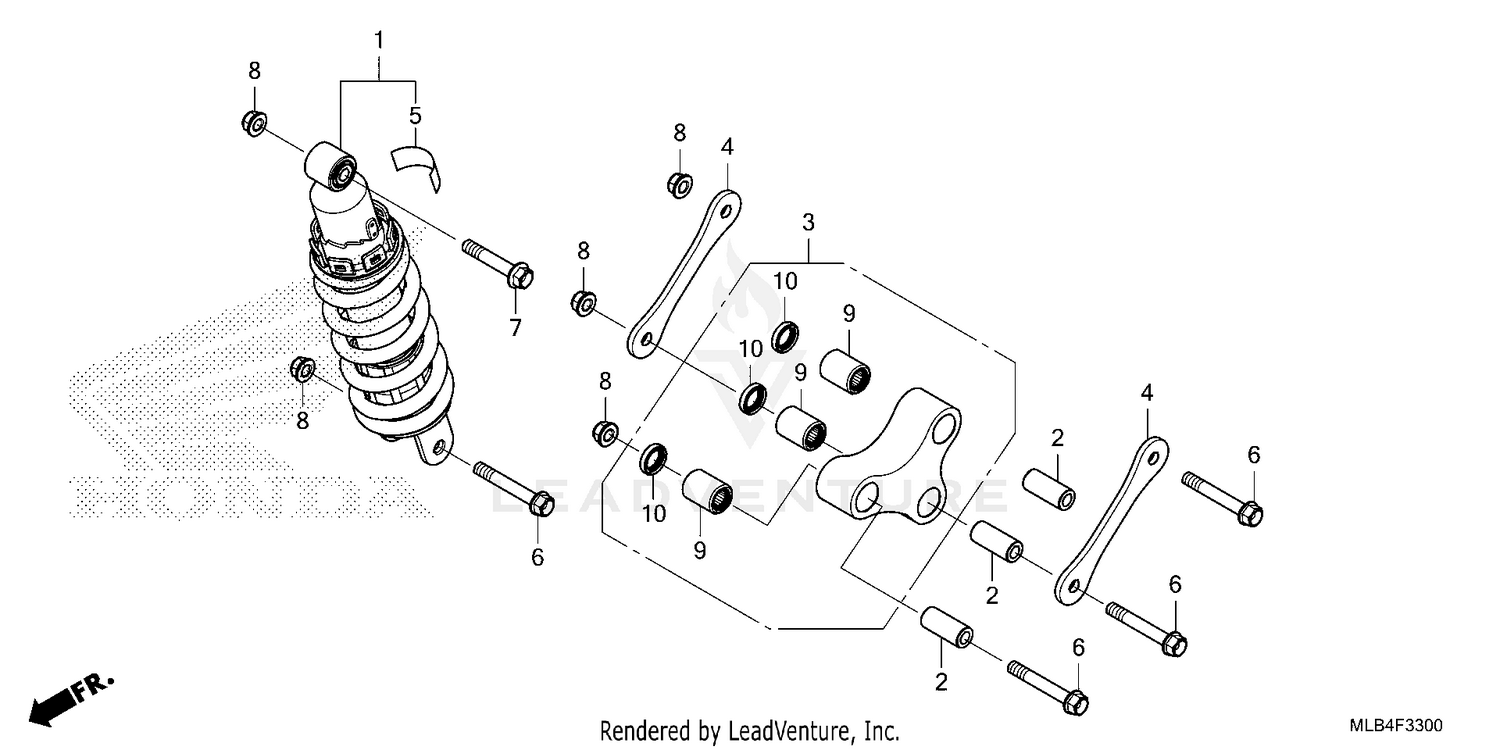

REAR SHOCK ABSORBER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52400-MLB-M21 | CUSHION ASSY., RR. Price: $515.91 |
| 2 | 52463-MAL-G00 | COLLAR, CUSHION CONNECTING ROD Price: $14.15 |
| 3 | 52465-MLB-D00 | ARM SUB-ASSY. Price: $210.78 |
| 4 | 52471-MKP-J00 | PLATE, CUSHION CONNECTING ROD Price: $5.80 |
| 5 | 87516-MBL-610 | LABEL, RR. DAMPER Price: $4.93 |
| 6 | 90121-MLB-D00 | BOLT, FLANGE (10X65) Price: $4.69 |
| 7 | 90153-KF0-000 | BOLT, FLANGE (10X55) Price: $11.33 |
| 8 | 90305-MLB-D01 | NUT, U FLANGE (10MM) Price: $2.75 |
| 9 | 91052-MGS-D31 | BEARING, NEEDLE (17X24X30) Price: $11.84 |
