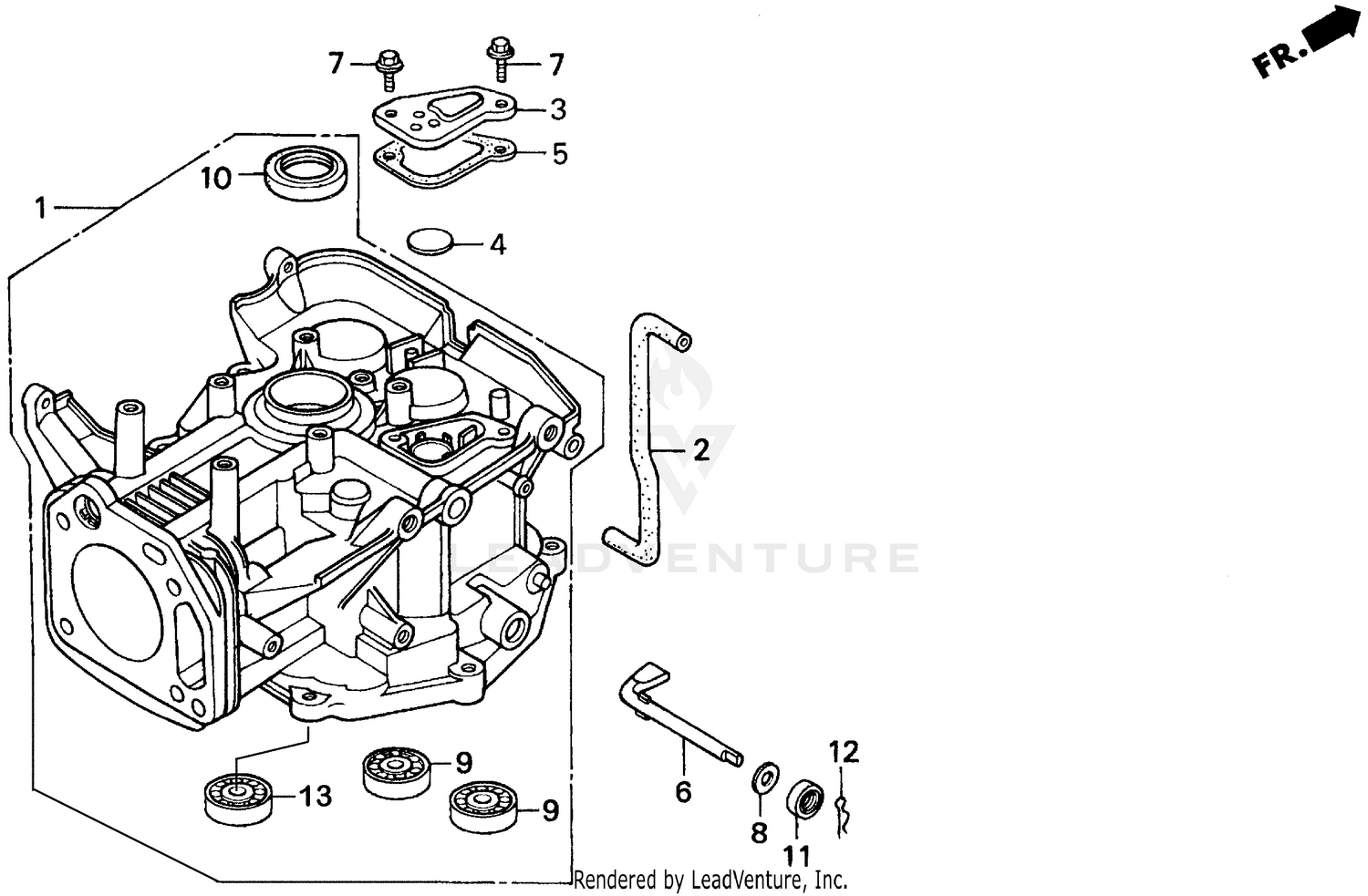

| Ref | Part Number | Description |
|---|
| 1 |
12000-ZE9-604 |
SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 6672422). Price: $672.14 |
| 2 |
12315-ZF5-000 |
TUBE, BREATHER (Honda Code 3131828). Price: $9.10 |
| 3 |
12370-ZF5-000 |
CAP, BREATHER CHAMBER (Honda Code 3131836). Price: $9.10 |
| 4 |
12372-ZE2-300 |
VALVE, BREATHER (Honda Code 2061620). Price: $3.88 |
| 5 |
12373-ZE8-000 |
GASKET, BREATHER CAP (Honda Code 2089647). Price: $3.34 |
| 6 |
16541-ZE8-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4751293). Price: $14.94 |
| 7 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 8 |
90406-VM6-000 |
WASHER, THRUST (8.1MM) (Honda Code 1806934). Price: $3.50 |
| 9 |
91001-ZF5-003 |
BEARING, RADIAL BALL (6202) (Honda Code 3132263). Price: $18.48 |
| 10 |
91201-ZE3-004 |
OIL SEAL (35X52X8) (Honda Code 2108595). Price: $10.94 |
| 11 |
91201-ZE9-003 |
SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713). Price: $5.26 |
| 12 |
94251-10000 |
PIN, LOCK (10MM) (Honda Code 0159269). Price: $1.50 |
