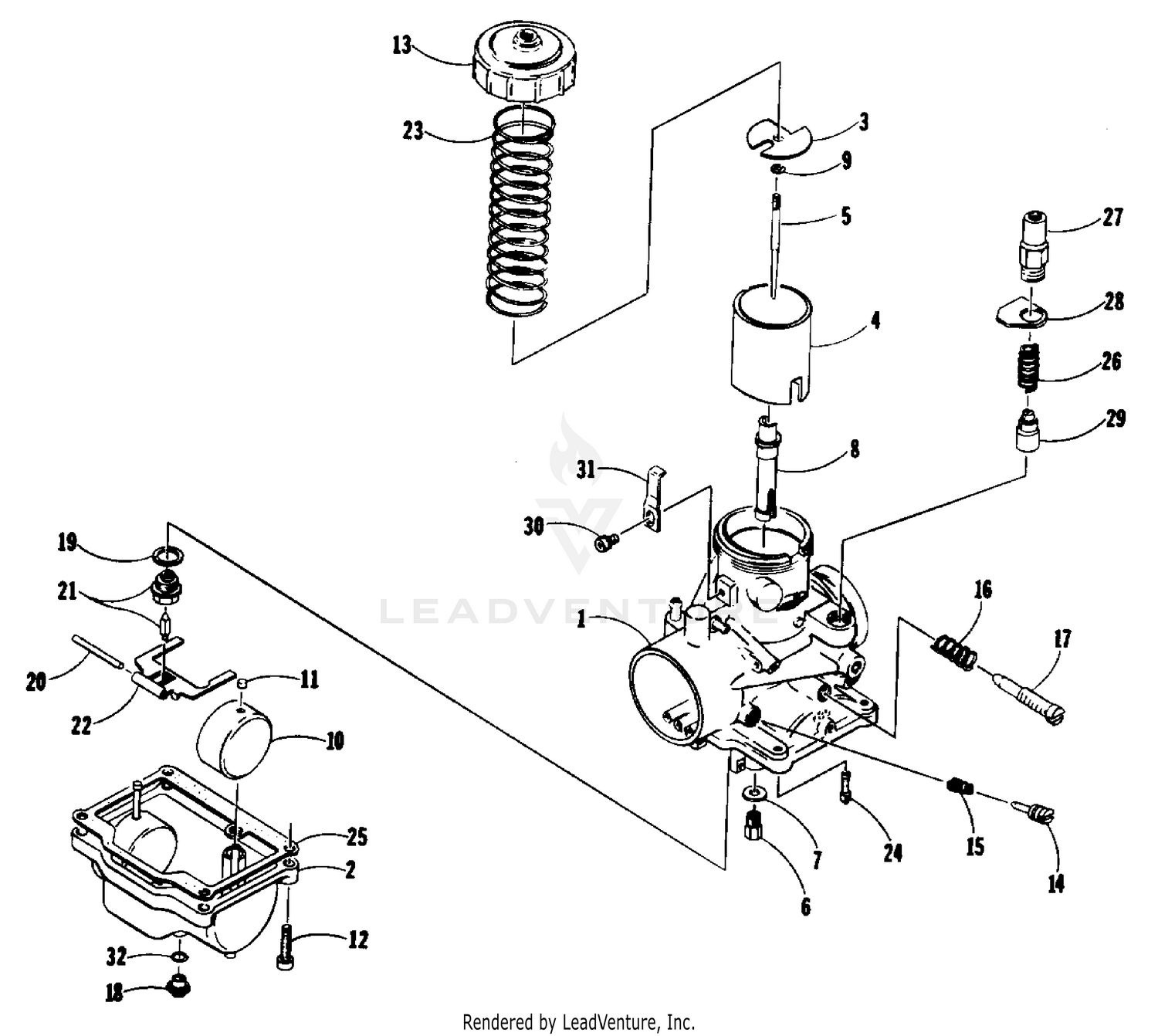

CARBURETOR [58172] — Parts Catalog

Ref	Part Number	Description
2	6505-189	Chamber, Float Price: $47.95
3	6505-307	Plate Price: $3.19
4	6505-246	VALVE PISTON CA2.5 Price: $114.95
5	6505-252	Jet Needle, 6DH2-3 Price: $28.95
6	6505-069	Main Jet - 270 Price: $8.43
7	6505-006	Washer Price: $1.45
8	6505-247	NEEDLE JET P-6 (159) Price: $7.95
9	6505-008	E-Ring Price: $4.35
10	6505-009	Float Price: $31.95
11	6505-010	Cap Price: $1.80
12	6505-014	Screw, Machine Price: $1.80
13	6506-306	Carburetor Assembly - Right Price: $408.95
14	6505-019	Screw, Pilot Air Price: $13.28
15	6505-020	Spring, Pilot Air Screw Price: $3.75
16	6505-021	Spring, Throttle Stop Screw Price: $3.75
17	6505-101	Screw, Throttle Stop Price: $8.43
18	6505-184	Screw, Drain Price: $16.92
19	6505-024	Washer Price: $1.45
20	6505-153	Pin Price: $3.38
21	6505-160	Needle Valve Assembly 1.5 Price: $53.95
22	6505-027	Arm, Float Price: $15.71
23	6505-579	Spring, Piston Valve Price: $9.95
24	6505-310	Pilot Jet - 22.5 Price: $8.43
25	6505-030	Gasket, Float Chamber Price: $14.49
26	6505-033	Spring, Starter Plunger Price: $19.35
27	6505-188	Cap, Starter Plunger Price: $18.13
28	6505-187	Washer Price: $2.66
29	6505-035	Plunger, Starter Price: $19.35
30	6505-036	Screw, Machine Price: $1.45
31	6505-186	Plate, Retaining Price: $5.34
