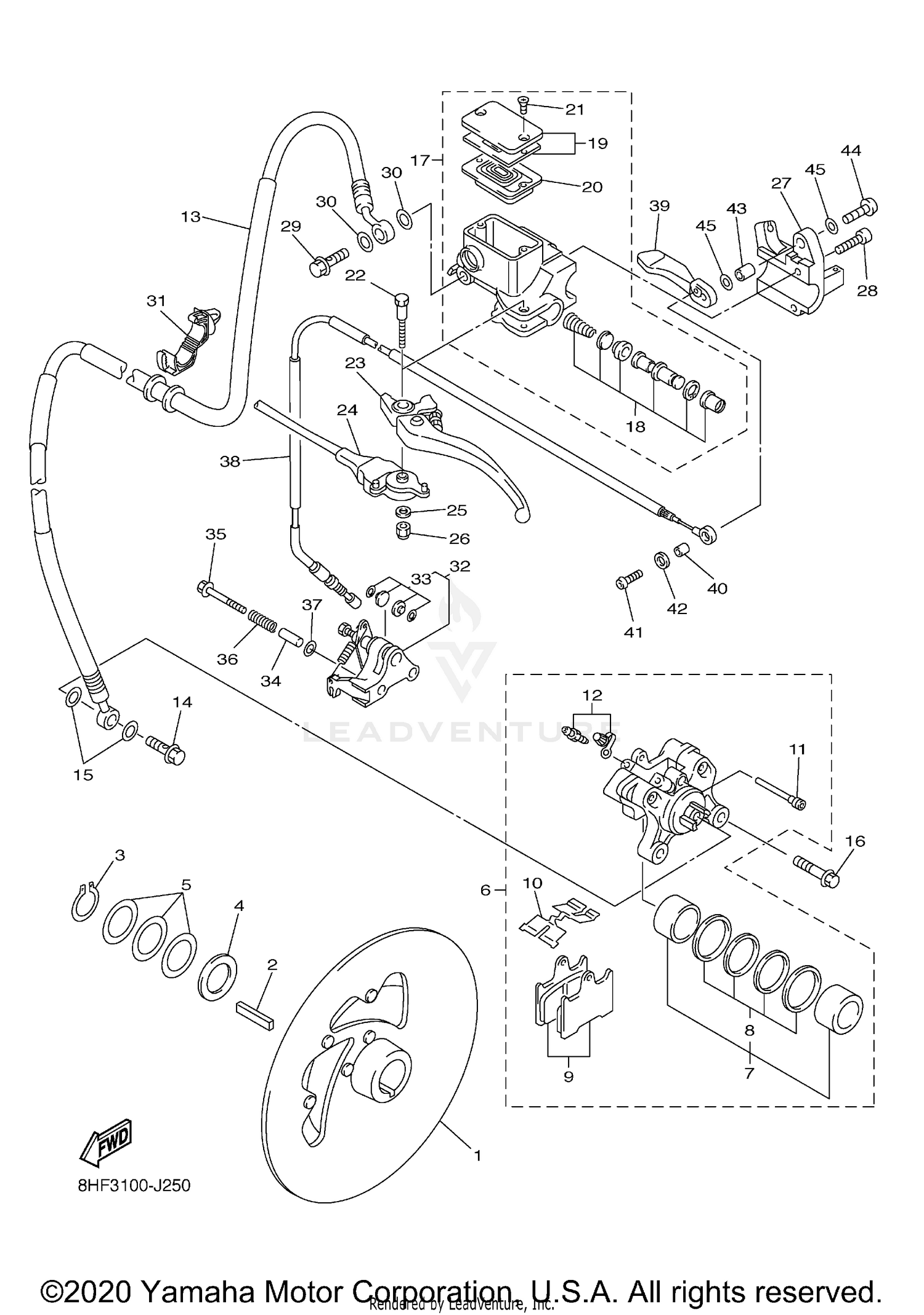

| Ref | Part Number | Description |
|---|
| 1 |
8FA-2581T-00-00 |
DISK BRAKE ASSY Price: $237.99 |
| 2 |
90281-07004-00 |
KEY, SLIDING Price: $15.49 |
| 3 |
99009-24400-00 |
CIRCLIP Price: $9.49 |
| 4 |
90201-25527-00 |
WASHER, PLATE (T1.0) Price: $11.49 |
| 6 |
8FA-2580T-01-00 |
CALIPER ASSY (LEFT) Price: $467.99 |
| 7 |
8CR-W0057-00-00 |
PISTON ASSY, CALIPER Price: $75.99 |
| 8 |
8CR-W0047-00-00 |
CALIPER SEAL KIT Price: $23.99 |
| 9 |
8FA-W0046-01-00 |
BRAKE PAD KIT 2 Price: $75.99 |
| 10 |
8DJ-25919-00-00 |
SUPPORT, PAD Price: $16.49 |
| 11 |
8CR-25924-00-00 |
PIN, PAD Price: $15.49 |
| 12 |
8CR-W0048-00-00 |
BLEED SCREW KIT Price: $14.49 |
| 13 |
8HF-25872-10-00 |
HOSE, BRAKE 1 Price: $76.99 |
| 14 |
90401-10015-00 |
BOLT, UNION Price: $12.49 |
| 15 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 16 |
90105-10634-00 |
BOLT, FLANGE Price: $11.49 |
| 17 |
8FA-W2587-00-00 |
MASTER CYLINDER SUB ASSY This part replaces 8EN-W2587-00-00. Price: $267.99 |
| 18 |
8CR-W0041-00-00 |
CYLINDER KIT, MASTER Price: $62.99 |
| 19 |
8CR-W2585-00-00 |
RESERVOIR CAP SET Price: $44.99 |
| 20 |
55U-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $30.99 |
| 21 |
98707-04012-00 |
SCREW, FLAT HEAD This part replaces 98706-04012-00. Price: $1.85 |
| 22 |
8CR-2589F-00-00 |
BOLT, LEVER Price: $7.49 |
| 24 |
8FP-82530-00-00 |
STOP SWITCH ASSY Price: $53.99 |
| 25 |
8CR-8398X-00-00 |
WASHER, PLATE Price: $11.99 |
| 26 |
95707-05300-00 |
NUT, FLANGE Price: $4.55 |
| 27 |
8FA-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $34.99 |
| 28 |
91317-06025-00 |
BOLT This part replaces 91316-06022-00. Price: $2.65 |
| 29 |
90401-10015-00 |
BOLT, UNION Price: $12.49 |
| 30 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 31 |
90464-14012-00 |
CLAMP Price: $2.85 |
| 32 |
8FA-25970-01-00 |
PARKING BRAKE COMP. Price: $210.99 |
| 33 |
8FA-W0045-00-00 |
PARKING BRAKE PAD KIT Price: $60.99 |
| 34 |
90387-06058-00 |
COLLAR Price: $8.49 |
| 35 |
90111-06042-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.20 |
| 36 |
90501-120A0-00 |
SPRING, COMPRESSION Price: $11.49 |
| 37 |
90201-12161-00 |
WASHER, PLATE Price: $8.49 |
| 38 |
8HF-26351-00-00 |
CABLE, BRAKE Price: $55.99 |
| 39 |
8FA-83922-00-00 |
LEVER 2 Price: $33.99 |
| 40 |
90387-06043-00 |
COLLAR Price: $9.49 |
| 41 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 42 |
90201-06089-00 |
WASHER, PLATE Price: $4.65 |
| 43 |
90387-081M9-00 |
COLLAR Price: $2.90 |
| 44 |
90111-08054-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.80 |
