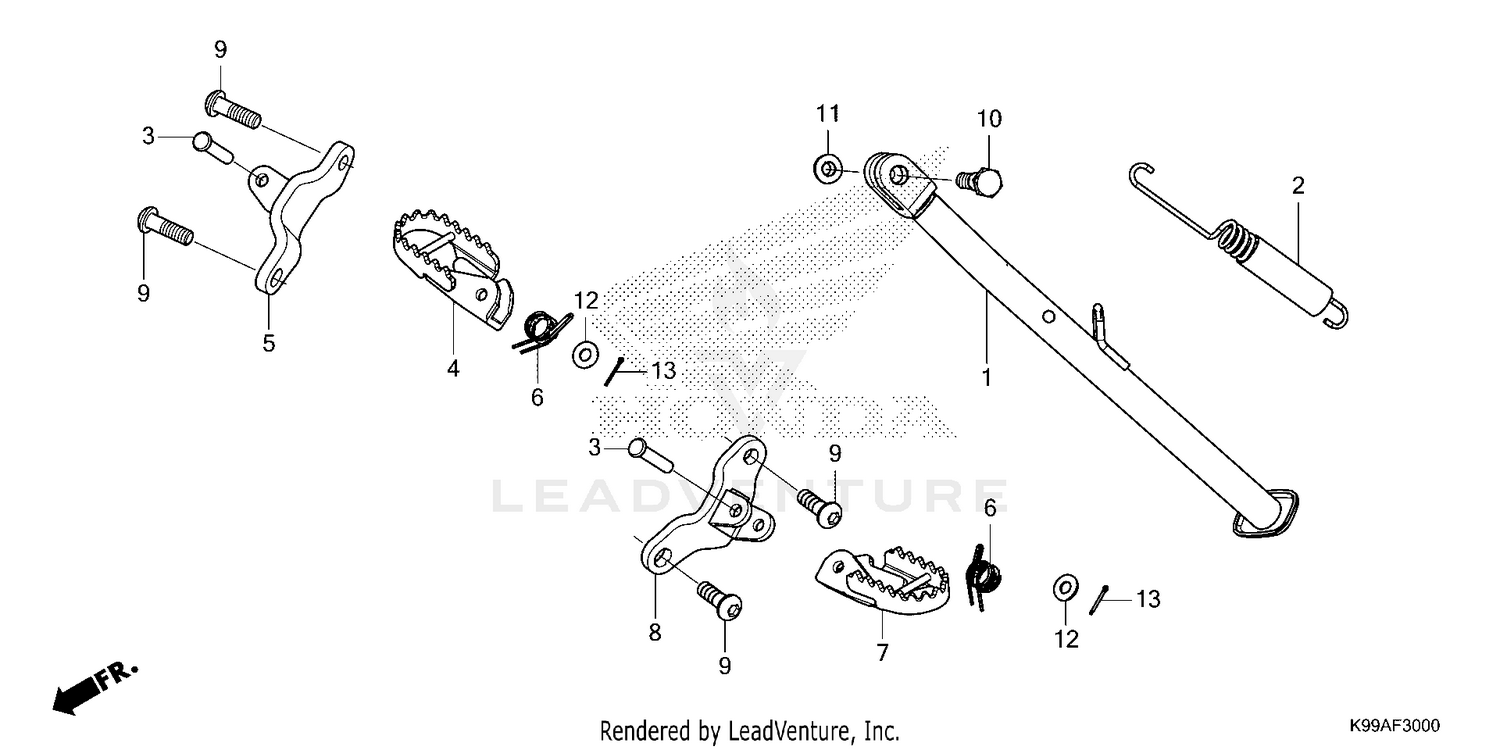

| Ref | Part Number | Description |
|---|
| 1 |
50530-K99-A70 |
BAR, SIDE STAND Price: $76.47 |
| 2 |
50540-K99-A70 |
SPRING, SIDE STAND Price: $7.73 |
| 3 |
50603-KPS-900 |
PIN, STEP BAR JOINT Price: $2.76 |
| 4 |
50612-K99-A00 |
STEP, R. Price: $22.75 |
| 5 |
50615-K99-A00 |
ARM, R. STEP Price: $21.31 |
| 6 |
50617-MA0-770 |
SPRING, FOOTPEG RETURN SPRING, STEP RETURN Price: $7.29 |
| 7 |
50642-K99-A00 |
STEP, L. Price: $22.93 |
| 8 |
50645-K99-A00 |
ARM, L. STEP Price: $24.35 |
| 9 |
90105-K99-A00 |
BOLT, STEP BRACKET Price: $3.11 |
| 10 |
90107-GN1-010 |
SCREW, SIDE STAND PIVOT Price: $5.67 |
| 11 |
90203-MF9-710 |
NUT, SIDE STAND Price: $4.60 |
| 12 |
94101-08000 |
WASHER, PLAIN (8MM) Price: $0.87 |
