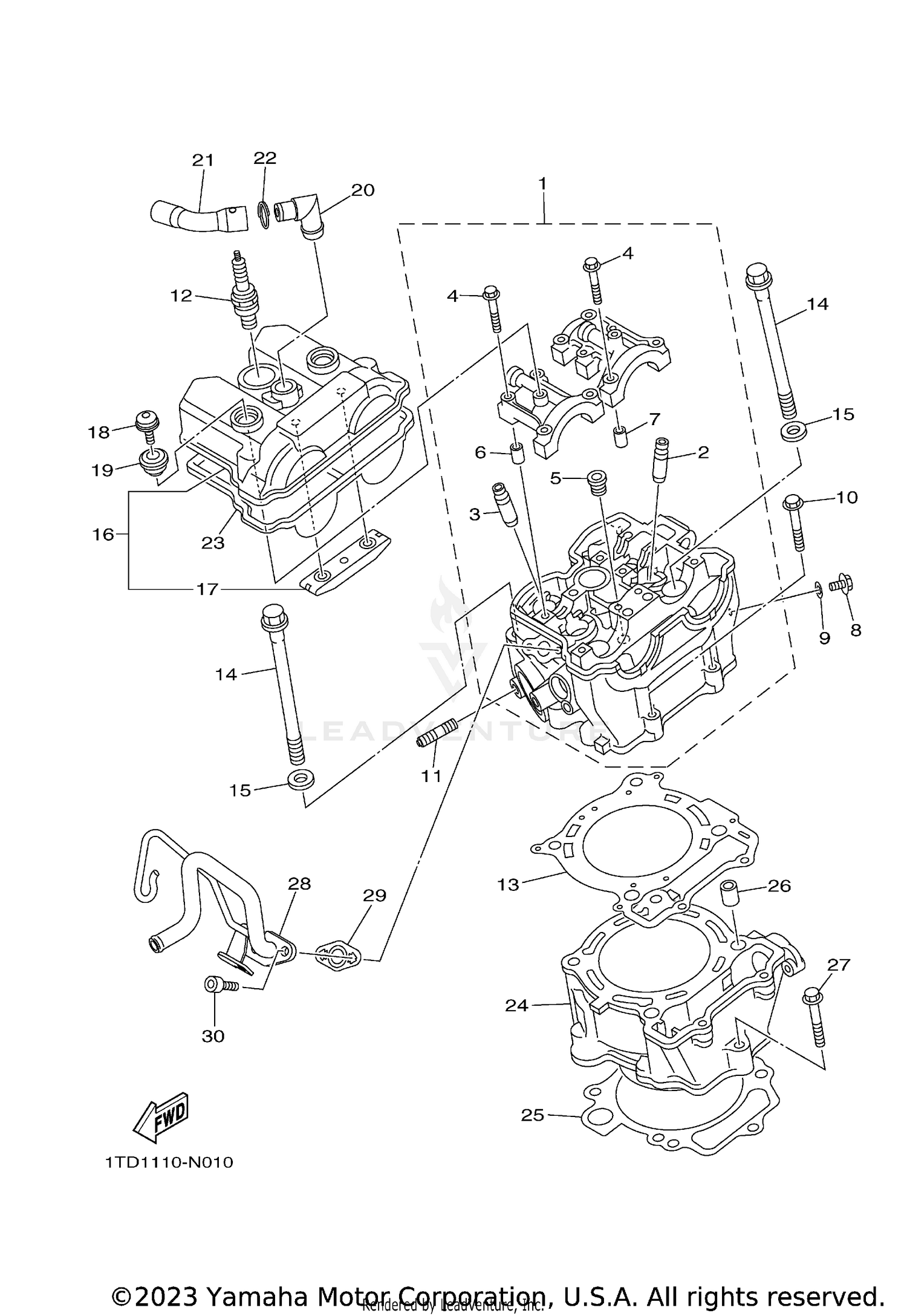

| Ref | Part Number | Description |
|---|
| 1 |
1TD-11101-09-00 |
CYLINDER HEAD ASSY Price: $801.99 |
| 2 |
5TA-11133-10-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 3 |
5TA-11134-10-00 |
GUIDE, VALVE 2 Price: $59.99 |
| 4 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
90340-12007-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 6 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 7 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 8 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 9 |
90430-06014-00 |
GASKET Price: $8.60 |
| 10 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 11 |
90116-08022-00 |
BOLT, STUD Price: $8.49 |
| 12 |
CR8-E0000-00-00 |
PLUG, SPARK (NGK CR8E) Price: $10.49 |
| 13 |
2S2-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $58.99 |
| 14 |
90105-10163-00 |
BOLT, FLANGE Price: $10.49 |
| 15 |
90201-10025-00 |
WASHER, PLATE Price: $8.49 |
| 16 |
2S2-11190-21-00 |
COVER, CYLINDER HE Price: $183.99 |
| 17 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 Price: $32.99 |
| 18 |
90109-06203-00 |
BOLT Price: $6.49 |
| 19 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 20 |
18P-11167-00-00 |
PIPE, BREATHER 2 Price: $32.99 |
| 21 |
1TD-11166-00-00 |
PIPE, BREATHER 1 Price: $12.99 |
| 22 |
90468-100A1-00 |
CLIP Price: $8.49 |
| 23 |
2S2-11193-00-00 |
GASKET, HEAD COVER 1 Price: $45.99 |
| 24 |
2S2-11311-30-00 |
CYLINDER 1 Price: $560.99 |
| 25 |
2S2-11351-00-00 |
GASKET, CYLINDER Price: $23.99 |
| 26 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 27 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 28 |
1TD-14871-00-00 |
PIPE 1 Price: $145.99 |
| 29 |
5TJ-14815-00-00 |
GASKET Price: $7.49 |
