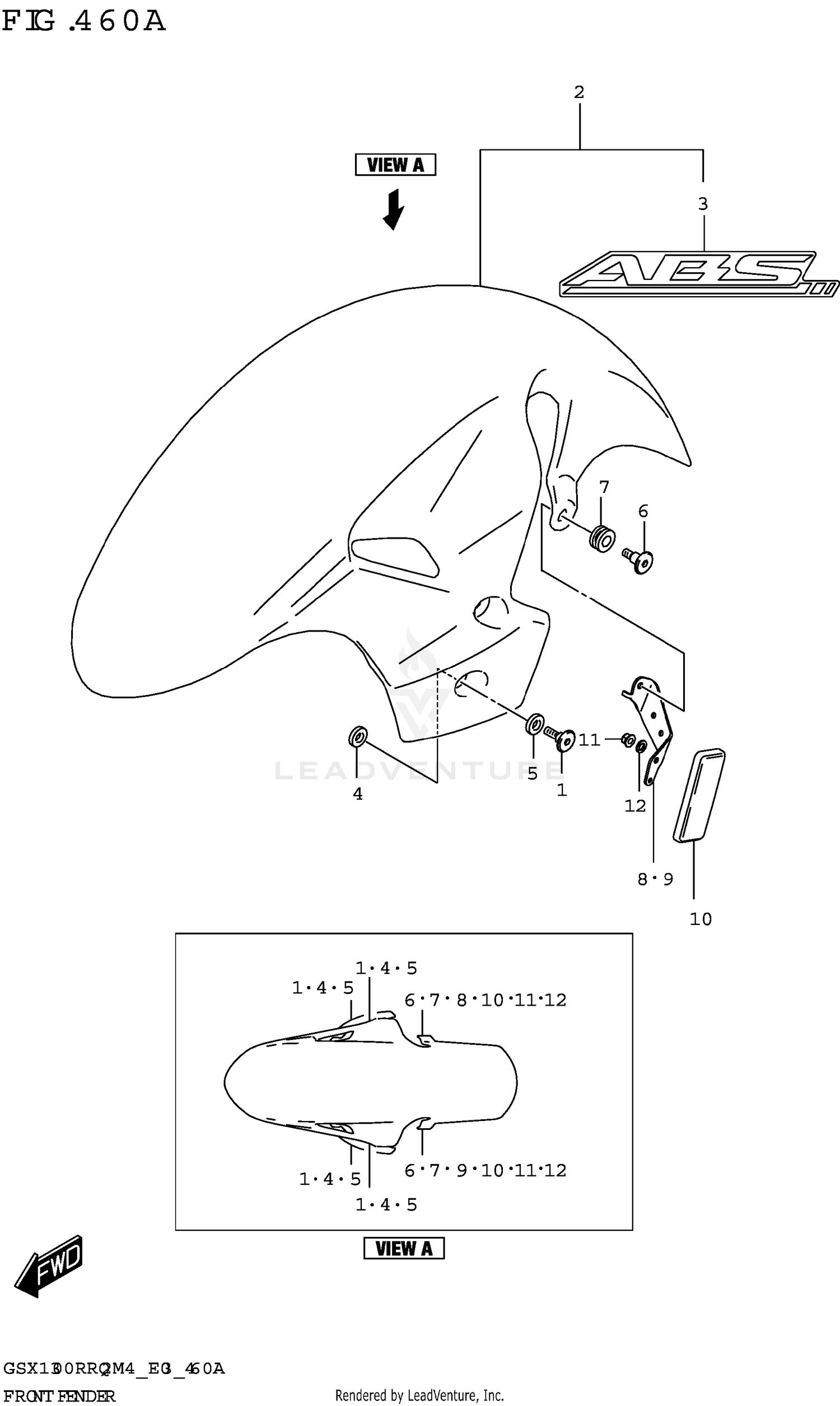

FRONT FENDER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45241-17K00 | BOLT,SEAT (6X20) Price: $4.14 |
| 4 | 53121-28K00 | TAPE,FR FENDER (11X20X0.3) Price: $4.56 |
| 5 | 53121-33E00 | WASHER (8.5X16X3.4) Price: $4.23 |
| 6 | 09139-06236 | SCREW (6X20) Price: $3.45 |
| 7 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 8 | 47451-10L10 | BRACKET,FRONT SIDE RR,R Price: $11.98 |
| 9 | 47455-10L10 | BRACKET,FRONT SIDE RR,L Price: $11.98 |
| 10 | 35950-43440 | REFLEX REFLECTOR ASSY,FR SIDE Price: $12.65 |
| 11 | 08319-3105B | NUT Price: $4.39 |
