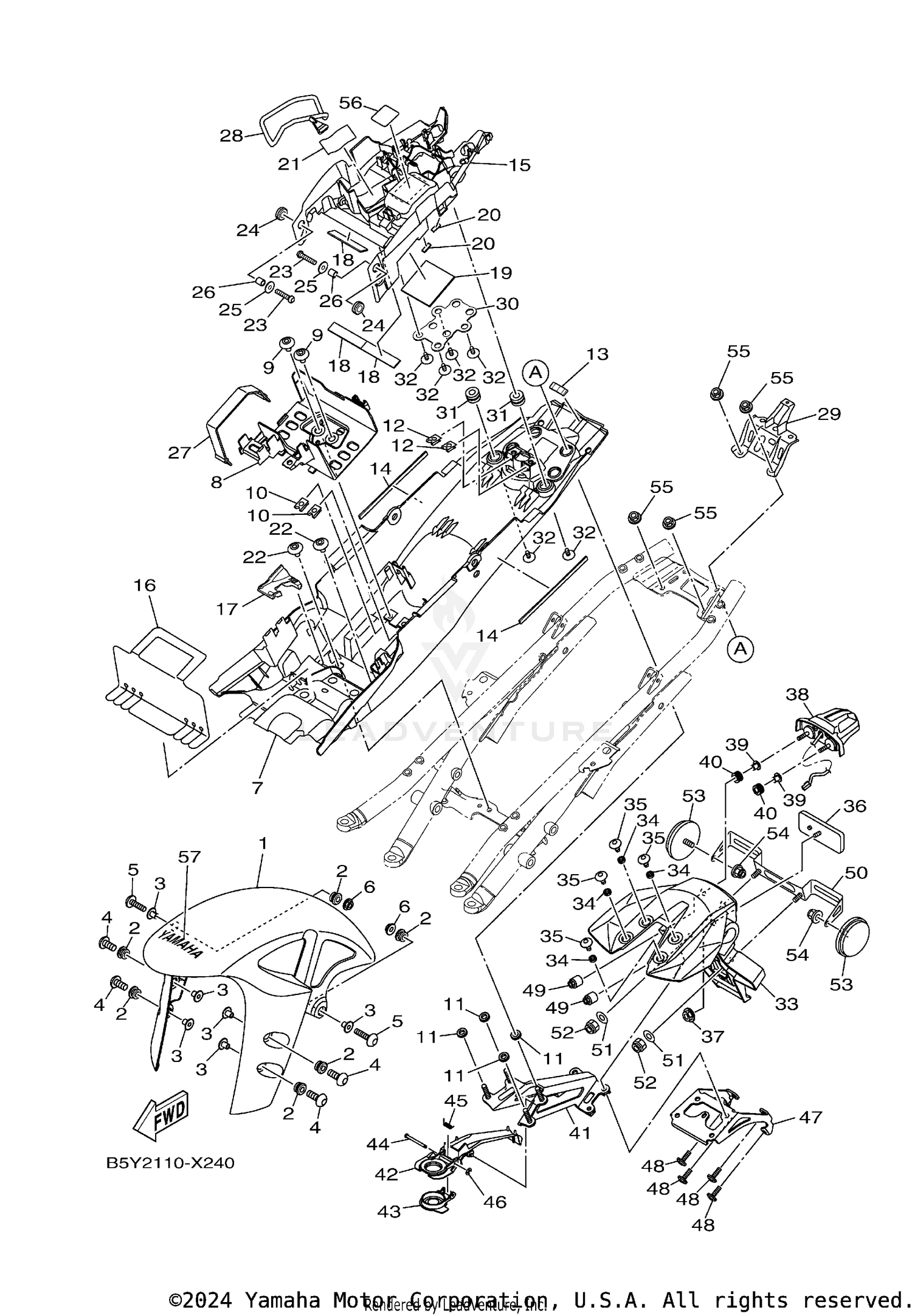

| Ref | Part Number | Description |
|---|
| 2 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 3 |
90387-06159-00 |
COLLAR This part replaces 90387-065J6-00. Price: $9.49 |
| 4 |
90111-06043-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $5.49 |
| 5 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 6 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 7 |
B5Y-8212B-00-00 |
BOX, BATTERY 1 Price: $138.99 |
| 8 |
B5Y-8212C-00-00 |
BOX, BATTERY 2 Price: $13.99 |
| 9 |
90109-06285-00 |
BOLT Price: $3.95 |
| 10 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 11 |
90560-08326-00 |
SPACER Price: $5.49 |
| 12 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 13 |
7TG-2214F-00-00 |
DAMPER 1 Price: $1.15 |
| 14 |
1B7-2834E-00-00 |
DAMPER 3 Price: $3.85 |
| 15 |
B5Y-2162G-00-00 |
PLATE 1 Price: $32.99 |
| 16 |
B5Y-21652-00-00 |
PROTECTOR Price: $19.49 |
| 17 |
B5Y-2135F-00-00 |
COVER Price: $16.49 |
| 18 |
B5Y-21486-00-00 |
DAMPER 2 Price: $4.15 |
| 19 |
B5Y-21488-00-00 |
DAMPER Price: $9.49 |
| 20 |
B5Y-21639-00-00 |
DAMPER 2 Price: $1.55 |
| 21 |
5H0-8235Y-M0-00 |
DAMPER This part replaces 3YL-12232-00-00. Price: $7.49 |
| 22 |
90109-06285-00 |
BOLT Price: $3.95 |
| 23 |
92012-06030-00 |
BOLT, BUTTON HEAD Price: $3.35 |
| 24 |
90480-13032-00 |
GROMMET Price: $3.55 |
| 25 |
90201-06057-00 |
WASHER, PLATE Price: $6.49 |
| 26 |
90387-06108-00 |
COLLAR Price: $2.00 |
| 27 |
133-82131-00-00 |
BAND, BATTERY Price: $30.99 |
| 28 |
3YX-21376-00-00 |
BAND, TOOL Price: $17.49 |
| 29 |
B5Y-2117E-00-00 |
BRACKET, TAILLIGHT Price: $51.99 |
| 30 |
B5Y-2163A-00-00 |
COVER, REAR FENDER 1 Price: $10.49 |
| 31 |
90480-14229-00 |
GROMMET This part replaces 90480-15316-00. Price: $9.49 |
| 32 |
90164-05001-00 |
SCREW, TAPPING This part replaces 90164-05014-00. Price: $9.49 |
| 33 |
1RC-21629-01-00 |
GUARD, MUD Price: $41.99 |
| 34 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 35 |
90111-06061-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 36 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 37 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 38 |
B67-84745-00-00 |
LICENSE LIGHT UNIT ASSY Price: $257.99 |
| 39 |
90387-05042-00 |
COLLAR Price: $6.49 |
| 40 |
90480-11009-00 |
GROMMET Price: $1.20 |
| 41 |
B67-2164F-00-00 |
STAY 1 Price: $51.99 |
| 42 |
B67-2163E-01-00 |
COVER, REAR FENDER Price: $7.99 |
| 43 |
1RC-2465B-01-00 |
CAP, ROTOR Price: $4.55 |
| 44 |
90249-03002-00 |
PIN Price: $5.49 |
| 45 |
90508-09007-00 |
SPRING, TORSION Price: $2.75 |
| 46 |
93430-02001-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 47 |
1RC-21682-00-00 |
STAY, PLATE Price: $38.99 |
| 48 |
90160-05012-00 |
SCREW, ROUND TAPPING Price: $8.49 |
| 49 |
1RC-2622H-00-00 |
WEIGHT Price: $7.49 |
| 50 |
1RC-84751-00-00 |
BRACKET, LICENSE Price: $36.99 |
| 51 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 52 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 53 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
| 54 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 55 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 56 |
B5Y-2815P-10-00 |
LABEL, NOTICE 1 Price: $9.99 |
