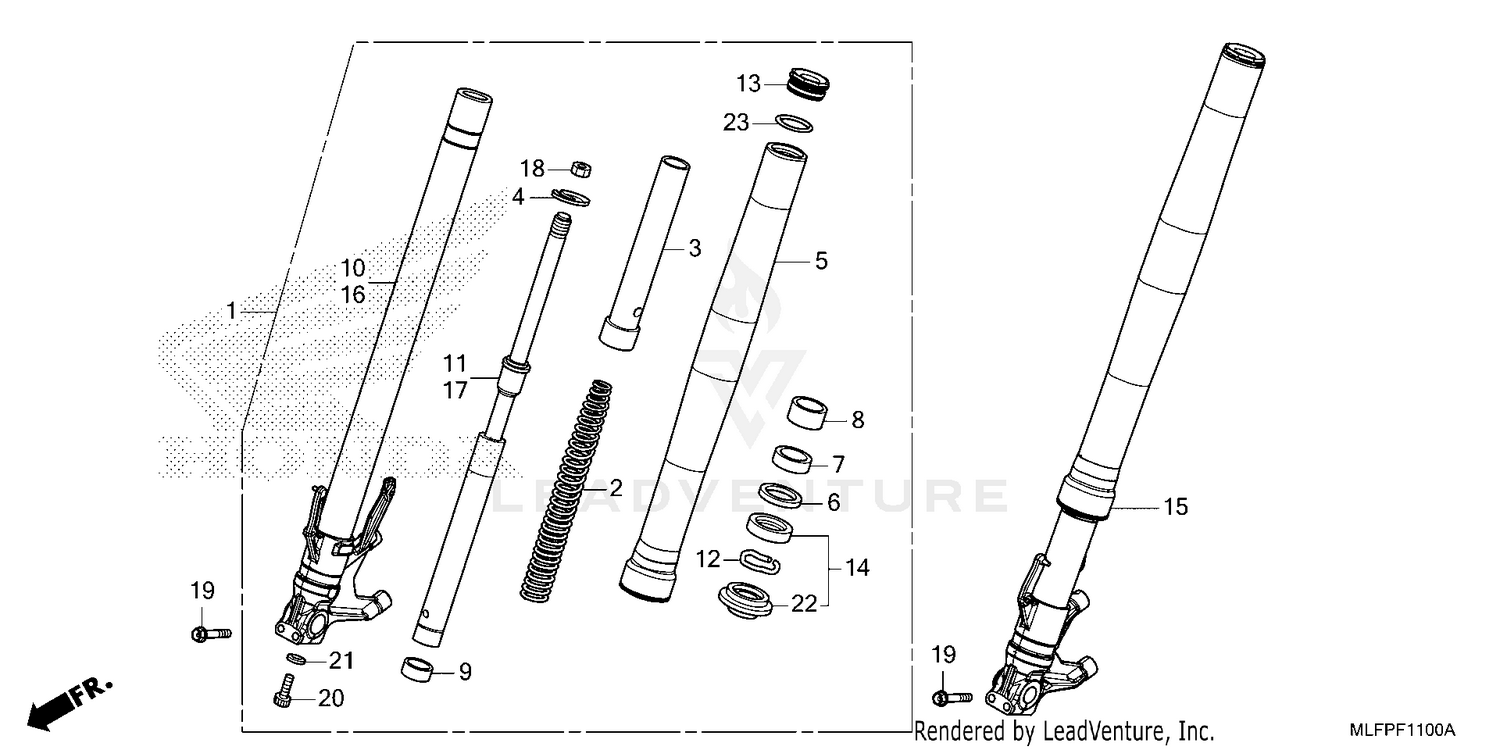

| Ref | Part Number | Description |
|---|
| 1 |
51400-MLF-Y01 |
FORK ASSY., R. FR. Price: $1,160.31 |
| 2 |
51401-MLF-Y01 |
SPRING, FR. FORK Price: $82.15 |
| 3 |
51403-MLF-Y01 |
COLLAR, SPRING Price: $18.09 |
| 4 |
51408-MZ0-003 |
STOPPER, SPRING SEAT (NOT AVAILABLE) Price: $15.78 |
| 5 |
51410-MLF-E71 |
TUBE (OUTER) (NOT AVAILABLE) Price: $439.15 |
| 6 |
51412-KA4-711 |
RING, BACK-UP Price: $11.69 |
| 7 |
51414-MFN-D01 |
BUSH, GUIDE Price: $8.89 |
| 8 |
51415-MFN-D01 |
BUSH, SLIDER Price: $37.08 |
| 9 |
51423-K94-T01 |
PLATE, CENTERING Price: $2.36 |
| 10 |
51425-MLF-Y01 |
PIPE, R. SLIDE Price: $330.91 |
| 11 |
51430-MLF-Y01 |
DAMPER, FR. Price: $382.58 |
| 12 |
51447-KA4-711 |
RING, OIL SEAL STOPPER (SHOWA) Price: $5.67 |
| 13 |
51450-MLF-Y01 |
BOLT, FR. FORK Price: $72.45 |
| 14 |
51490-MFL-003 |
SEAL SET, FR. FORK Price: $24.05 |
| 15 |
51500-MLF-Y01 |
FORK ASSY., L. FR. Price: $1,160.31 |
| 16 |
51525-MLF-Y01 |
PIPE, L. SLIDE Price: $330.91 |
| 17 |
51530-MLF-Y01 |
DAMPER, FR. Price: $382.58 |
| 18 |
52482-K94-T01 |
NUT, HEX. Price: $1.49 |
| 19 |
90109-MR7-000 |
BOLT, FLANGE (8X45) Price: $6.20 |
| 20 |
90116-KV3-701 |
BOLT, SOCKET (8MM) (SHOWA) Price: $4.89 |
| 21 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 22 |
91254-MEJ-013 |
DUST SEAL Price: $15.65 |
