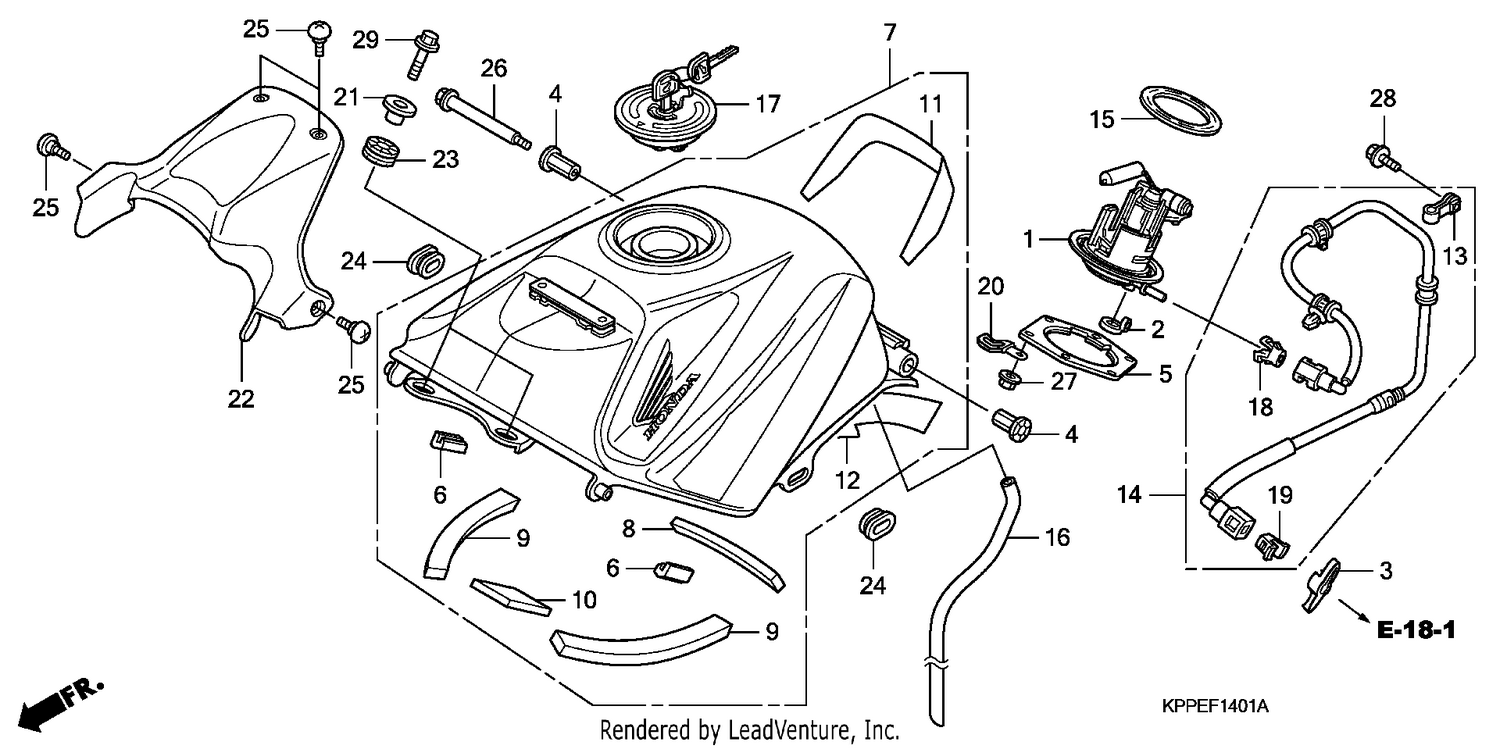

| Ref | Part Number | Description |
|---|
| 1 |
16700KTYD31 |
PUMP ASSY., FUEL Price: Call Us |
| 2 |
16719KPH700 |
DAMPER, CONNECTOR Price: Call Us |
| 3 |
16719MFJD00 |
DAMPER, CONNECTOR Price: Call Us |
| 4 |
17502KTYD30 |
CUSHION, FUEL TANK RR. PIVOT Price: Call Us |
| 5 |
17507KTYD30 |
PLATE, SETTING Price: Call Us |
| 6 |
17511KPP900 |
RUBBER, FUEL TANK Price: Call Us |
| 7 |
17520KTYD30ZA |
TANK SET, FUEL (WL) *TYPE1* Price: Call Us |
| 7 |
17520KTYD30ZB |
TANK SET, FUEL (WL) *TYPE2* Price: Call Us |
| 7 |
17520KTYD30ZC |
TANK SET, FUEL (WL) *TYPE3* Price: Call Us |
| 7 |
17520KTYD30ZD |
TANK SET, FUEL (WL) *TYPE4* Price: Call Us |
| 8 |
17531KTYD30 |
MAT, FUEL TANK Price: Call Us |
| 9 |
17532KTYD30 |
MAT A, FUEL TANK Price: Call Us |
| 10 |
17533KTYD30 |
MAT B, FUEL TANK Price: Call Us |
| 11 |
17534KTYD30 |
TAPE, SEAT GUARD Price: Call Us |
| 12 |
17536KTYD30 |
TAPE, TANK GUARD Price: Call Us |
| 13 |
17568KTYD30 |
CLAMPER, FUEL FEED HOSE Price: Call Us |
| 14 |
17570KTYD30 |
HOSE COMP., FUEL FEED Price: Call Us |
| 15 |
17572KTR941 |
GASKET, FUEL PUMP Price: Call Us |
| 16 |
17575KTYD30 |
TUBE, FUEL TANK BREATHER Price: Call Us |
| 17 |
17620MM5007 |
CAP ASSY., FUEL FILLER Price: Call Us |
| 18 |
17711S0XA31 |
RETAINER (GREEN) (TOKAI) Price: Call Us |
| 19 |
17711S0X931 |
RETAINER (BLUE GREEN) (TOKAI) Price: Call Us |
| 20 |
32925958000 |
CLIP, PULSER CORD Price: Call Us |
| 21 |
61104422000 |
COLLAR, SETTING Price: Call Us |
| 22 |
64450KTYD30 |
COVER, FUEL TANK Price: Call Us |
| 23 |
77208KW7900 |
RUBBER B, SEAT MOUNTING Price: Call Us |
| 24 |
83551300000 |
GROMMET, AIR CLEANER CASE Price: Call Us |
| 25 |
90114MG9770 |
SCREW, PROTECTOR SETTING Price: Call Us |
| 26 |
90135KTYD30 |
BOLT, TANK HINGE Price: Call Us |
| 27 |
9405006000 |
NUT, FLANGE, 6MM Price: Call Us |
| 28 |
957010601000 |
BOLT, FLANGE, 6X10 Price: Call Us |
