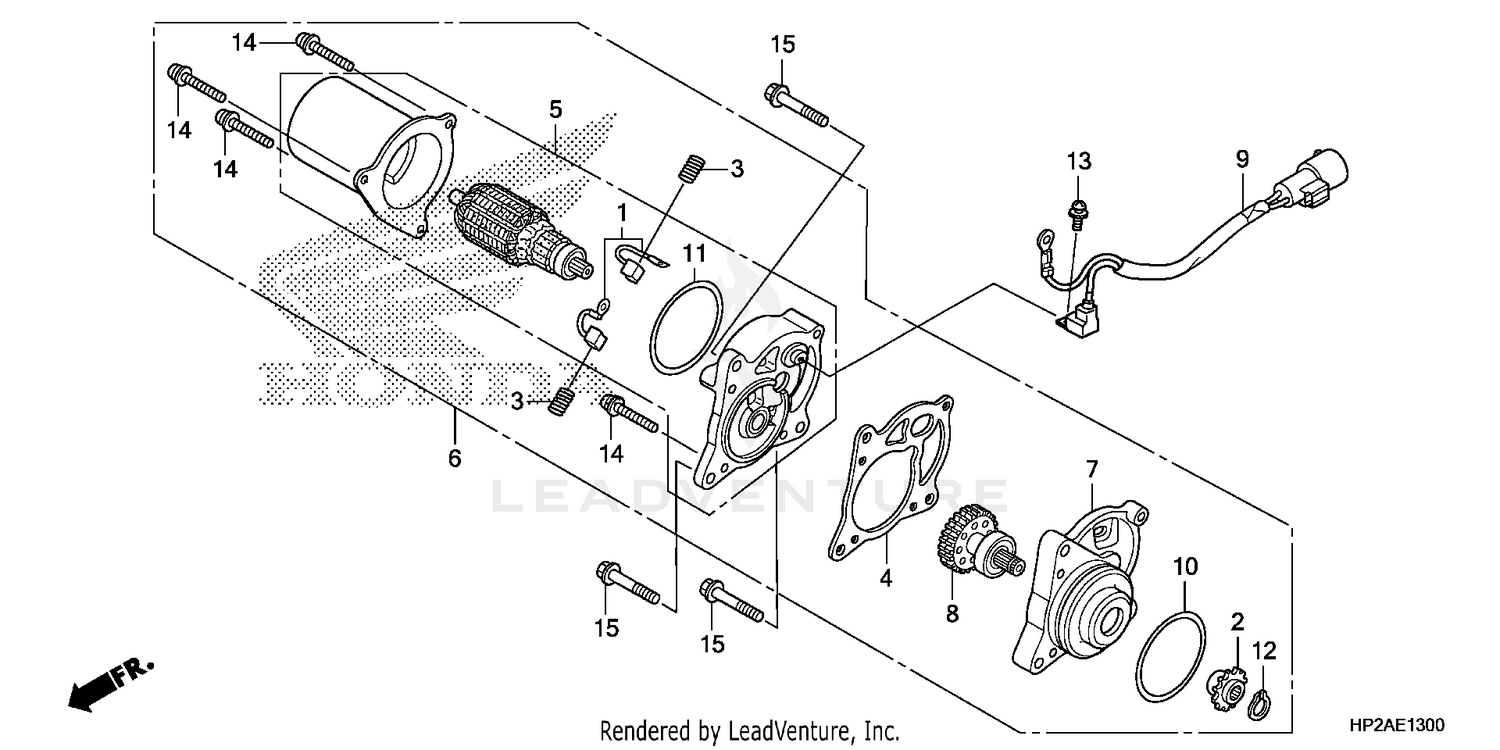

STARTING MOTOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31201-KG8-004 | BRUSH SET Price: $16.82 |
| 2 | 31202-GB2-700 | SPROCKET (12T) Price: $35.71 |
| 3 | 31204-KG8-004 | SPRING, CARBON BRUSH Price: $4.42 |
| 4 | 31205-HP2-671 | GASKET Price: $2.13 |
| 5 | 31208-HP2-671 | MOTOR ONLY Price: $208.64 |
| 6 | 31210-HP2-671 | MOTOR UNIT, STARTING Price: $323.87 |
| 7 | 31211-HP2-671 | CASE A, FR. Price: $39.00 |
| 8 | 31213-GB4-701 | GEAR, DRIVEN (MITSUBA) Price: $118.13 |
| 9 | 32410-HP2-671 | SUB-HARNESS A Price: $20.42 |
| 10 | 91308-GB4-701 | O-RING A Price: $5.29 |
| 11 | 91309-GB2-701 | O-RING B Price: $6.85 |
| 12 | 91309-GES-003 | CIRCLIP Price: $0.56 |
| 13 | 93892-04006-08 | SCREW-WASHER (4X6) Price: $1.20 |
| 14 | 93892-05030-08 | SCREW-WASHER (5X30) Price: $3.05 |
