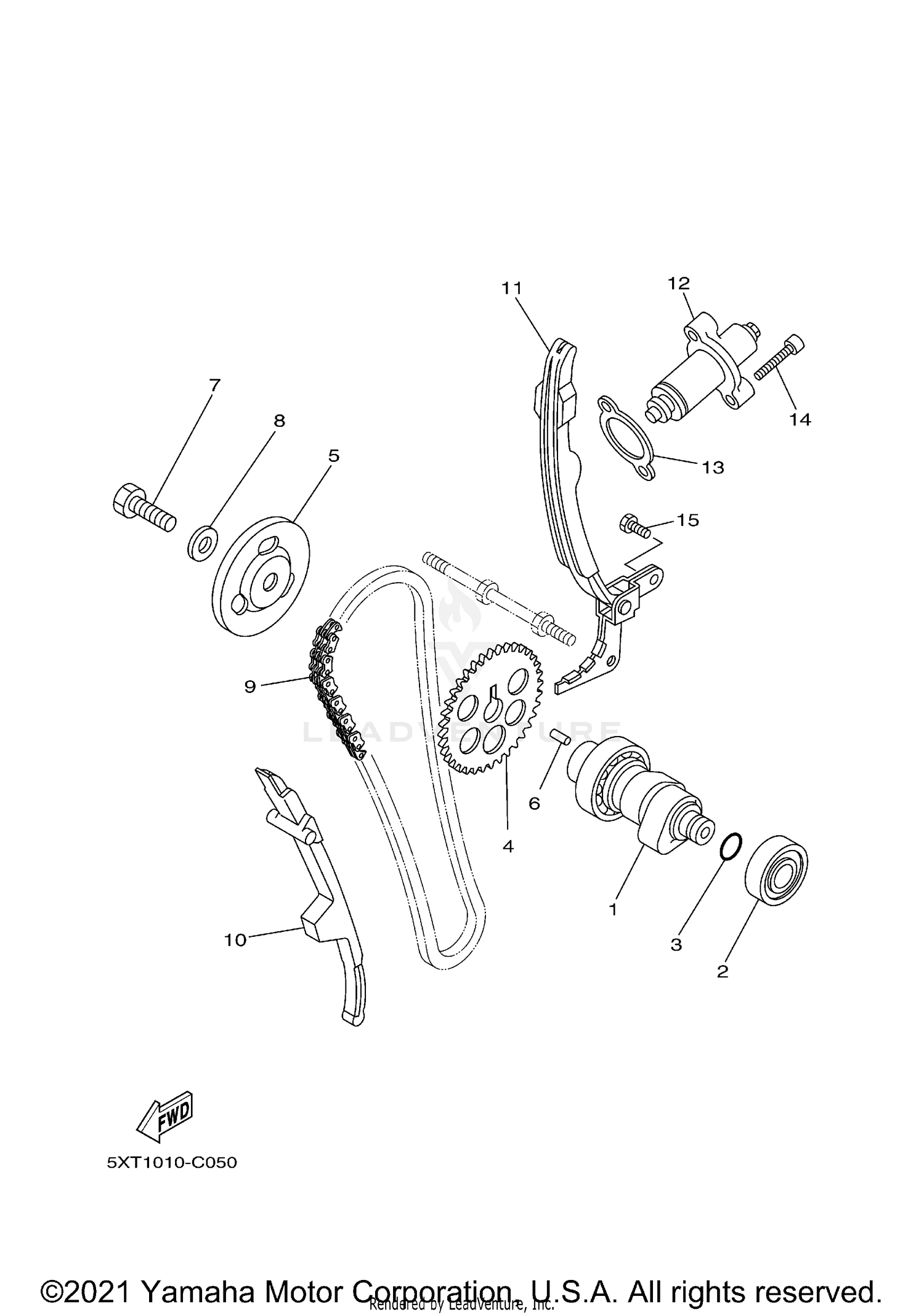

CAMSHAFT & CHAIN
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5XT-12170-00-00 | CAMSHAFT ASSY 1 Price: $184.99 |
| 3 | 93210-11453-00 | O-RING Price: $8.49 |
| 4 | 5XT-12176-00-00 | SPROCKET, CAM CHAIN Price: $51.99 |
| 5 | 4KB-11145-00-00 | PLATE, BREATHER 2 Price: $12.99 |
| 6 | 93604-10011-00 | PIN, DOWEL Price: $8.49 |
| 7 | 90101-10016-00 | BOLT Price: $4.45 |
| 8 | 90201-10774-00 | WASHER, PLATE This part replaces 90201-10591-00. Price: $10.49 |
| 10 | 5BP-12231-01-00 | GUIDE, STOPPER 1 This part replaces 5BP-12231-00-00. Price: $69.99 |
| 11 | 5XT-12241-02-00 | GUIDE, STOPPER 2 Price: $45.99 |
| 12 | 5XT-12210-00-00 | TENSIONER ASSY, CAM CHAIN Price: $90.99 |
| 13 | 5XT-12213-00-00 | GASKET, TENSIONER CASE Price: $9.49 |
| 14 | 91314-06025-00 | BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
