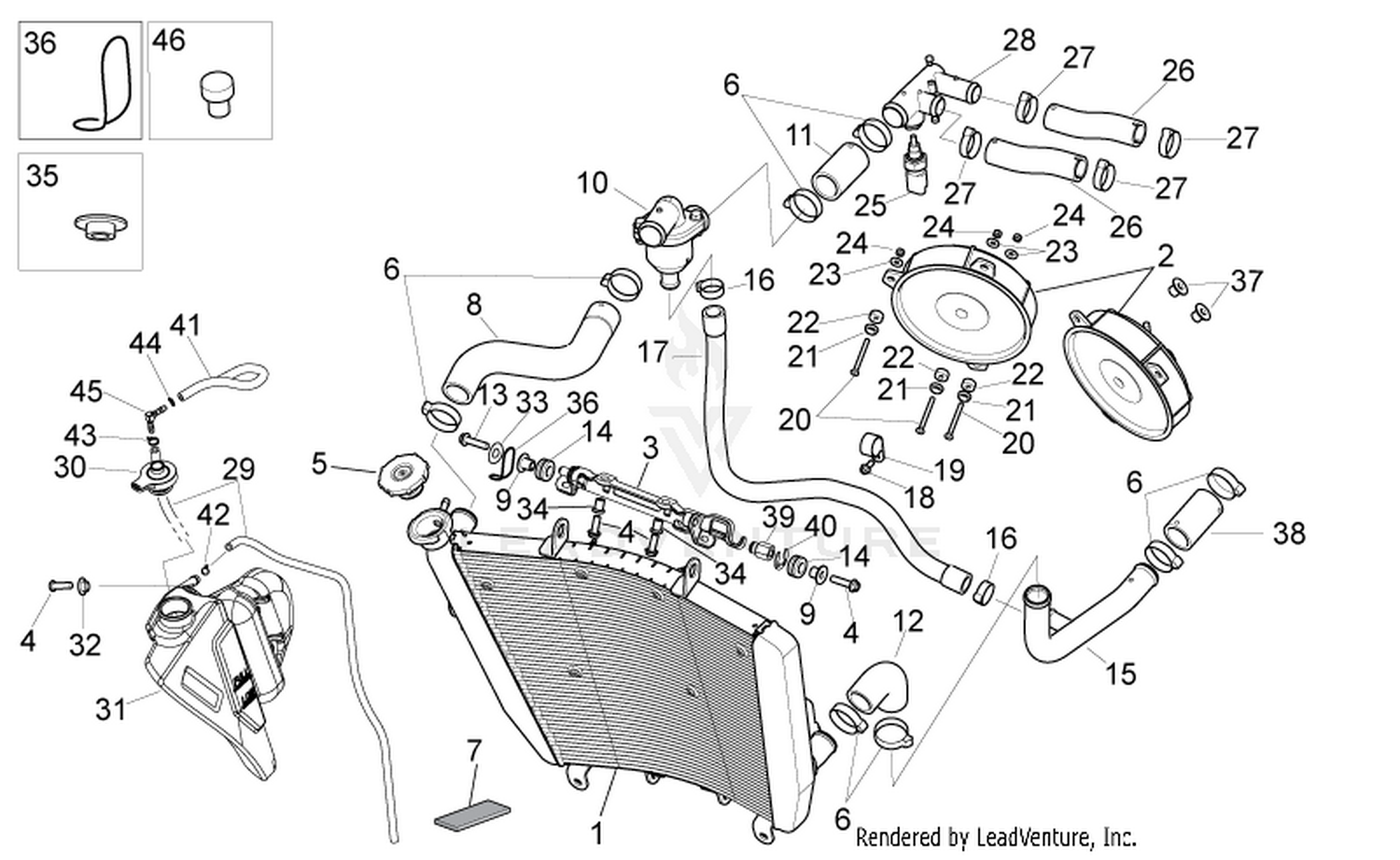

Cooling system
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2B003834 | Water cooler Price: $369.16 |
| 2 | 2D000310 | Fan, cpl. Price: $153.23 |
| 3 | 897775 | Water cooler upper support Price: $5.62 |
| 4 | AP8152279 | Screw w/ flange Price: $0.37 |
| 5 | 893954 | Cover Price: $24.27 |
| 6 | CM269609 | Hose clamp Price: $3.85 |
| 7 | AP8117033 | Adhesive sponge Price: $3.98 |
| 8 | 2B002204 | Thermostat-cooler pipe Price: $33.23 |
| 9 | AP8221023 | T bush Price: $0.68 |
| 10 | 856279 | Thermostat valve set Price: $81.80 |
| 11 | 2B002207 | Hose Price: $16.02 |
| 12 | AP8144033 | Thermostat-pump pipe Price: $5.62 |
| 13 | AP8150444 | Self-tapping screw Price: $0.12 |
| 14 | AP8120030 | Rubber spacer Price: $0.62 |
| 15 | 858488 | Cooler-pump pipe Price: $42.20 |
| 16 | CM269603 | Hose clamp Price: $2.70 |
| 17 | 2B002208 | Thermostat-engine pipe Price: $44.24 |
| 18 | AP8152272 | Screw w/ flange Price: $0.06 |
| 19 | 893224 | Hose clamp Price: $2.70 |
| 20 | 893514 | Screw Price: $2.70 |
| 21 | 893823 | Washer Price: $2.70 |
| 22 | 893513 | Spacer Price: $2.70 |
| 23 | AP8150011 | Washer Price: $0.18 |
| 24 | AP8150204 | Nut Price: $0.37 |
| 25 | 640485 | Temperature gauge Price: $44.80 |
| 26 | 2B002203 | Engine-manifold pipe Price: $35.39 |
| 27 | AP9100456 | Hose clip Price: $2.70 |
| 28 | 856543 | Manifold Price: $25.70 |
| 30 | 899642 | Expansion tank plug Price: $9.59 |
| 31 | 2B003557 | Expansion tank Price: $36.89 |
| 32 | AP8221145 | T bush Price: $2.70 |
| 33 | AP8150158 | Washer Price: $2.70 |
| 34 | AP8121728 | T bush Price: $2.70 |
| 35 | AP8121991 | Bush Price: $3.85 |
| 36 | AP8221150 | Cable-guide Price: $2.70 |
| 37 | 895450 | Bush Price: $2.70 |
| 38 | AP8144720 | Hose Price: $4.91 |
| 39 | 898047 | Threaded insert Price: $3.57 |
| 40 | AP8120573 | Stop ring Price: $2.70 |
| 41 | 899881 | Cooler-expansion tank pipe Price: $11.03 |
| 42 | AP8101595 | Hose clamp Price: $0.23 |
| 43 | AP8102520 | Hose clamp Price: $0.19 |
| 44 | AP8101595 | Hose clamp Price: $0.23 |
